Product Safety Information

Mobile collecting pan LPW 60-3, with perforated plate wall, made of steel, capacity 2 x 60 l barrels, galvanized

General information

Product safety instructions

Store flammable liquids and the drip tray away from sources of ignition and heat.;Take care when handling filled drums and the tub to avoid tipping over.;Suitable for filling water-polluting and flammable substances, observe environmental and safety precautions.;Regularly check for damage, corrosion and stability of the drip tray; rectify any damage immediately.;Keep out of reach of children and unauthorised persons.;Avoid direct contact with substances to be filled; wear personal protective equipment (PPE), such as gloves and safety goggles.;Do not overfill the drip tray; observe max. 60 litres and load capacity of 1000 kg/m².;Only use compatible tools; read the operating instructions carefully.;Consult the manufacturer or specialist in the event of uncertainties or spills.;Only use the drip tray in the intended frame and on a stable, level surface.

Article numbers

137559 137560 137561 137562 137563 137564

Mobile collecting pan LPW 60-3, with perforated plate wall, made of steel, capacity 2 x 60 l barrels, galvanized

Name: Mobile collecting pan LPW 60-3, with perforated plate wall, made of steel, capacity 2 x 60 l barrels, galvanized
Brand: Bauer
SKU: 7750351
Price: 892.0 CHF
Availability: InStock

Item number: 137559

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

The mobile sump LPW 60-3 from Bauer is suitable for the mobile and safe filling of flammable and water-endangering substances such as oils from 60 and 200 litre drums. As a mobile filling station, it can be used quickly and practically at various points of consumption. It is made of 3 mm thick sheet steel and has a galvanised grid with a load capacity of 1000 kilograms per square metre. Its stable, galvanised sheet steel plate with square perforations in a continuous 38 mm grid is ideal for positioning tool holders. The LPW 60-3 collection tray has hot-dip galvanised push handles, measures L 875 x W 500 x H 1685 mm and has a capacity of two 60 litre drums. It is available in different versions.

Further details:

- Mobile drip tray for the safe filling of oils.

- 2 swivel and fixed castors made of polyamide Ø 100 mm, 1 swivel castor with brake

- Galvanised sheet steel plate: 10 mm square perforation and 38 mm grid

- Allows flexible positioning of tool holders

- Hot dip galvanized push handles

- Suitable for flammable liquids (GHS categories 1-3) and liquids

liquids hazardous to water (GHS categories 1-4)

- Declaration of conformity ÜHP according to Stawa-R (steel sump directive)

- Material: Collecting tray made of 3 mm sheet steel

- Galvanized grating: 1000 kg/m² load capacity

- Storage capacity: 2 x 60 litre drum upright

- Collecting capacity: 60 litres

- Size of tub: L 800 x W 500 x H 415 mm

- Different colours available

- Dimensions: L 875 x W 500 x H 1685 mm

Show moreShow less

Technical data

General features
Accessible from below Yes
Approval no. general building approval
Capacity barrels 2 x 60 l
Collecting volume [l] 60
Color galvanised
Container type Barrels
Depth [mm] 50,00
Equipment 2 swivel and fixed castors, push handle, filling surface
Grid Yes
Grid material Steel
Grid surface galvanised
Hazardous substance type Flammable liquids GHS 1-3; Substances hazardous to water GHS 1-4
Height [mm] 1685
Length [mm] 875
Load capacity (kg/m²) 1000
Load capacity [kg] 1000/sqm
Material Steel
Mobile Yes
Number of containers [pcs.] 2
Permeable wall thickness (mm) 3
Stackable No
Standard EN ISO 1461
Substructure Rollers
Surface galvanised
Undercarriage height (mm) 200
Weight [kg] 55
Width [mm] 875

Download

ProductSafety_10147885.pdf

Schäfer Shop Quality and Service

Special features of this product

Danger - H410 Very toxic to aquatic life with long lasting effects.

only Fr. 892.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Color: galvanised

show all variants

Add to basket

Delivery time: approx. 5 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Mobile sump LPW 60-3, with perforated plate wall, made of steel, capacity 2 x 60-litre drum

Overview of the possible item variants. For more information, click on the respective variant.

Color

Item			Price

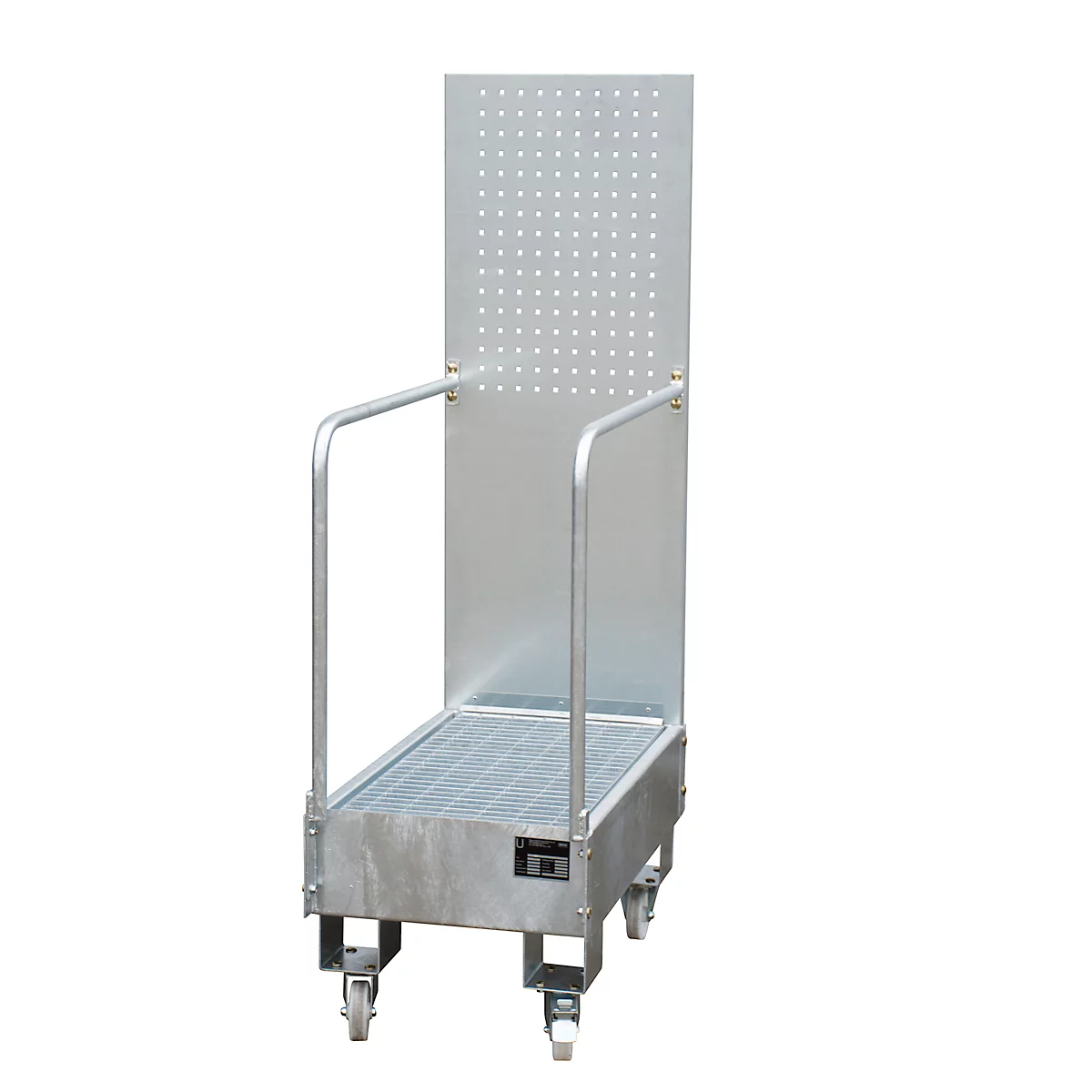

Mobile collecting pan LPW 60-3, with perforated plate wall, made of steel, capacity 2 x 60 l barrels, galvanized Item number: 137559			Fr. 892.00 Amount + - Added times

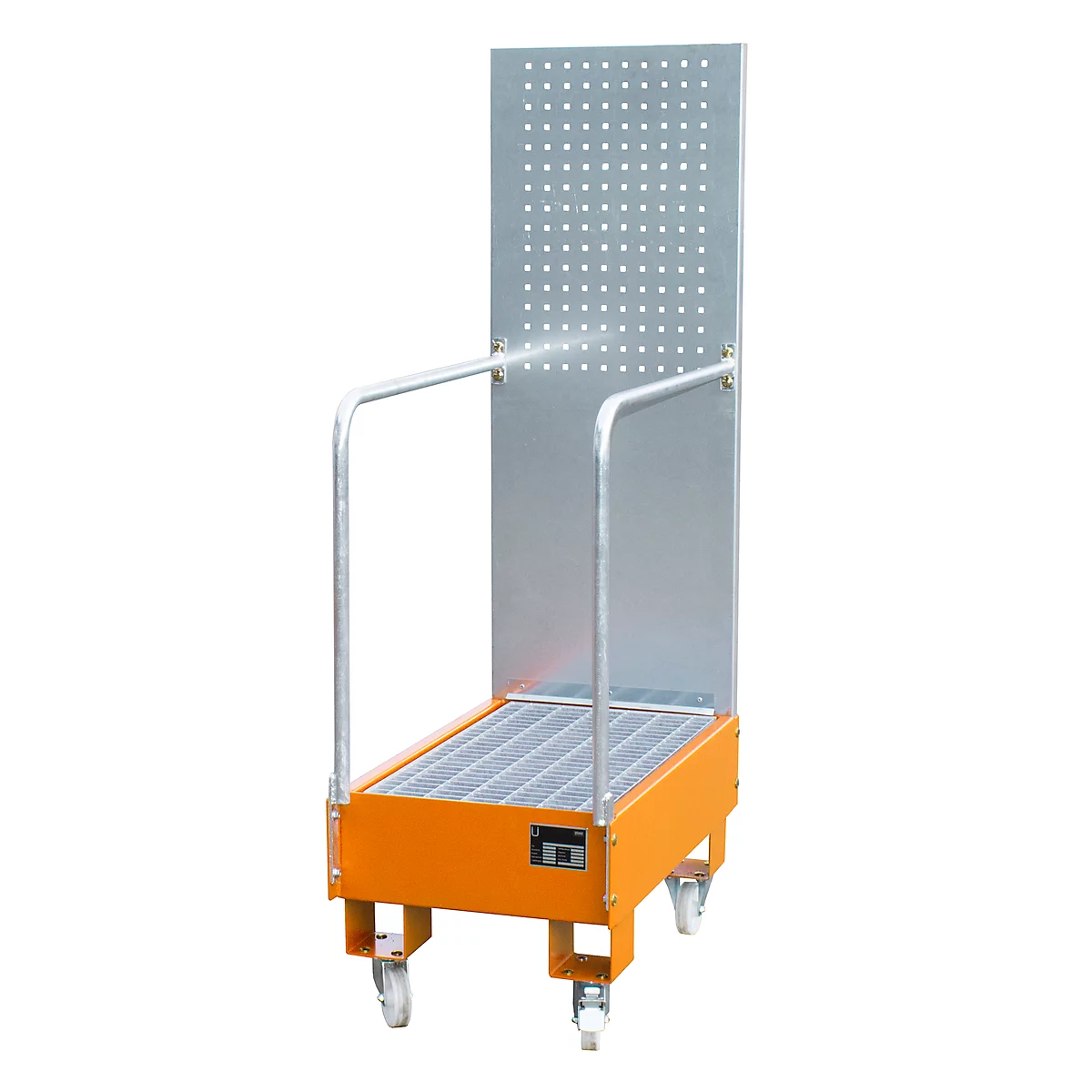

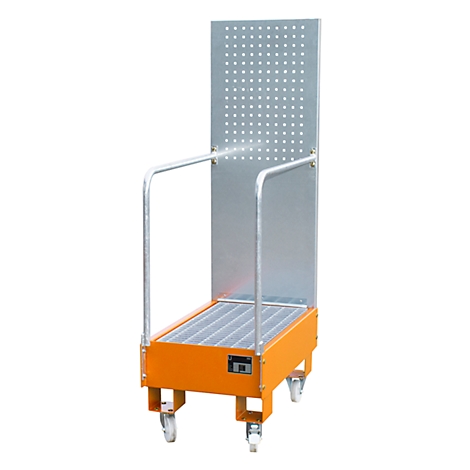

Mobile collecting pan LPW 60-3, with perforated plate wall, made of steel, capacity 2 x 60 l barrels, orange Item number: 137560			Fr. 829.00 Amount + - Added times

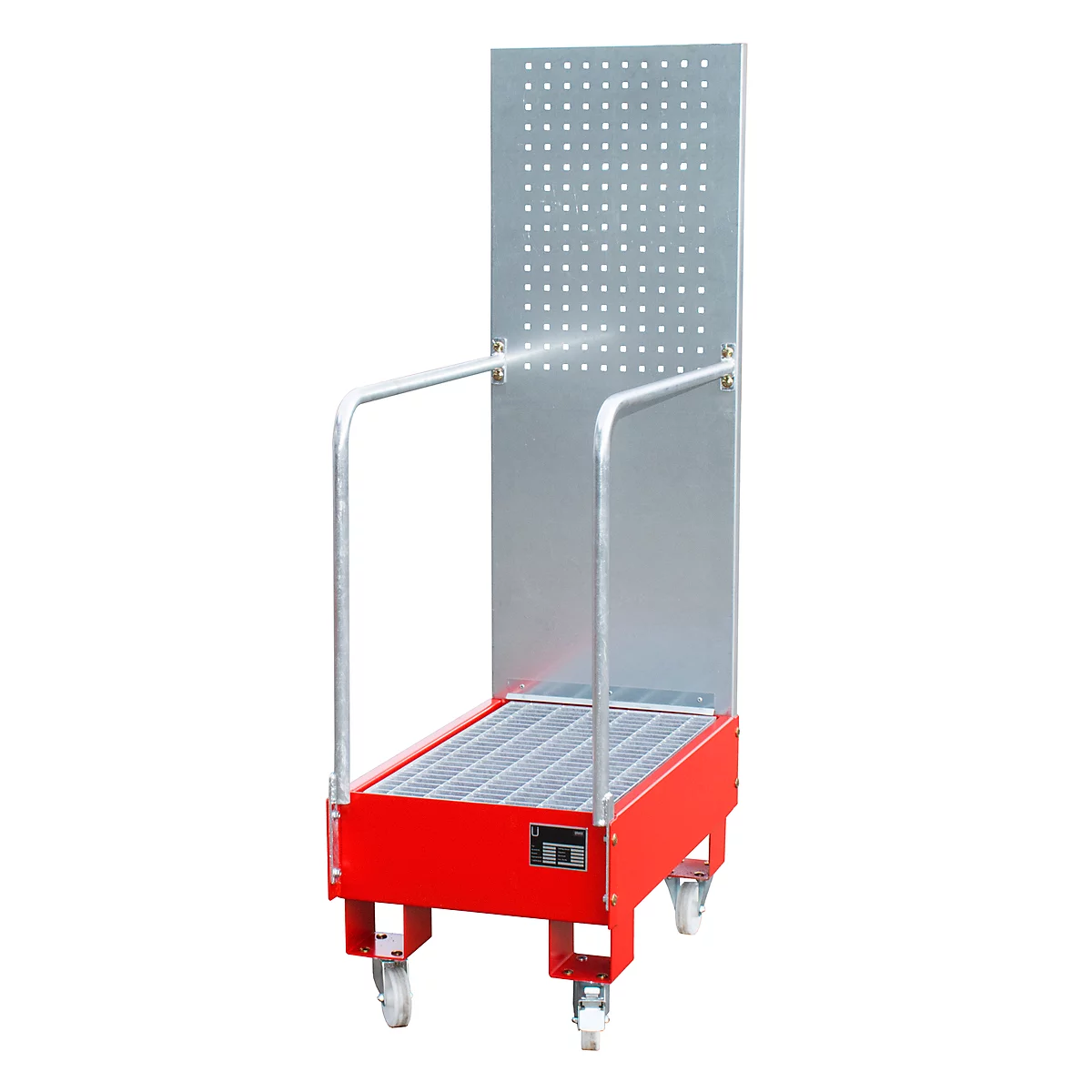

Mobile collecting pan LPW 60-3, with perforated plate wall, made of steel, capacity 2 x 60 l barrels, red Item number: 137561			Fr. 829.00 Amount + - Added times

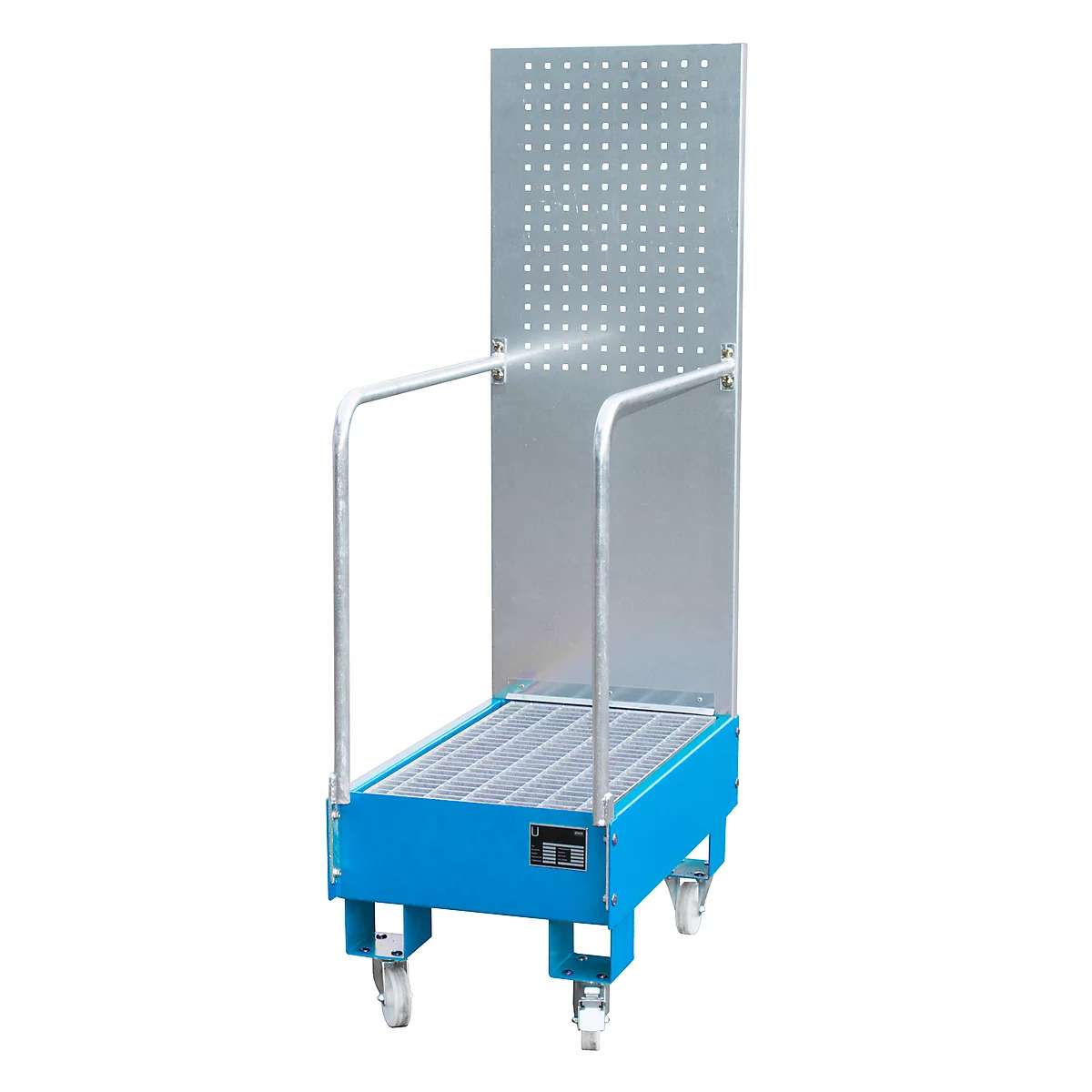

Mobile collecting pan LPW 60-3, with perforated plate wall, made of steel, capacity 2 x 60 l barrels, blue Item number: 137562			Fr. 829.00 Amount + - Added times
Mobile collecting pan LPW 60-3, with perforated plate wall, made of steel, capacity 2 x 60 l barrels, grey Item number: 137563			Fr. 829.00 Amount + - Added times

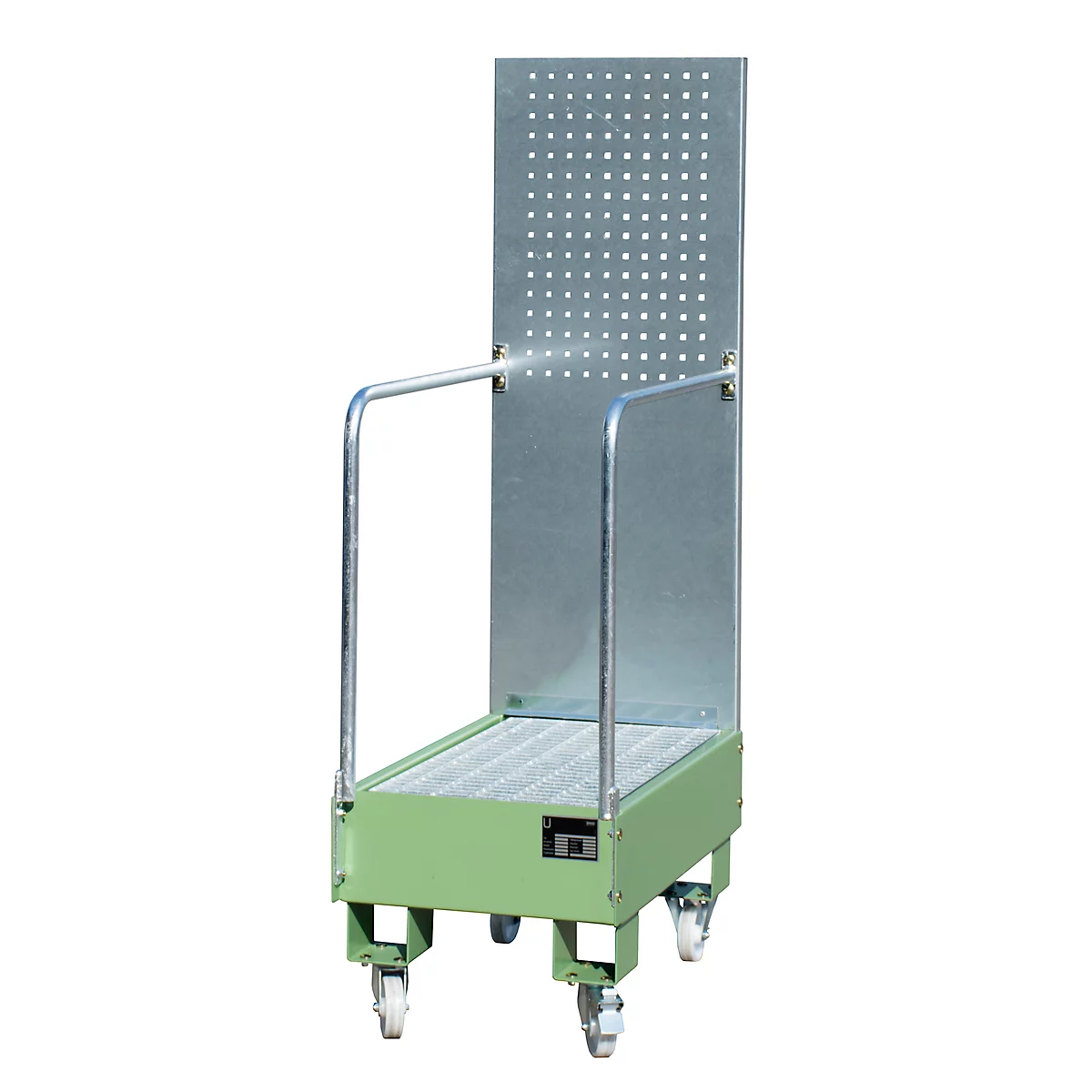

Mobile collecting pan LPW 60-3, with perforated plate wall, made of steel, capacity 2 x 60 l barrels, green Item number: 137564			Fr. 829.00 Amount + - Added times
