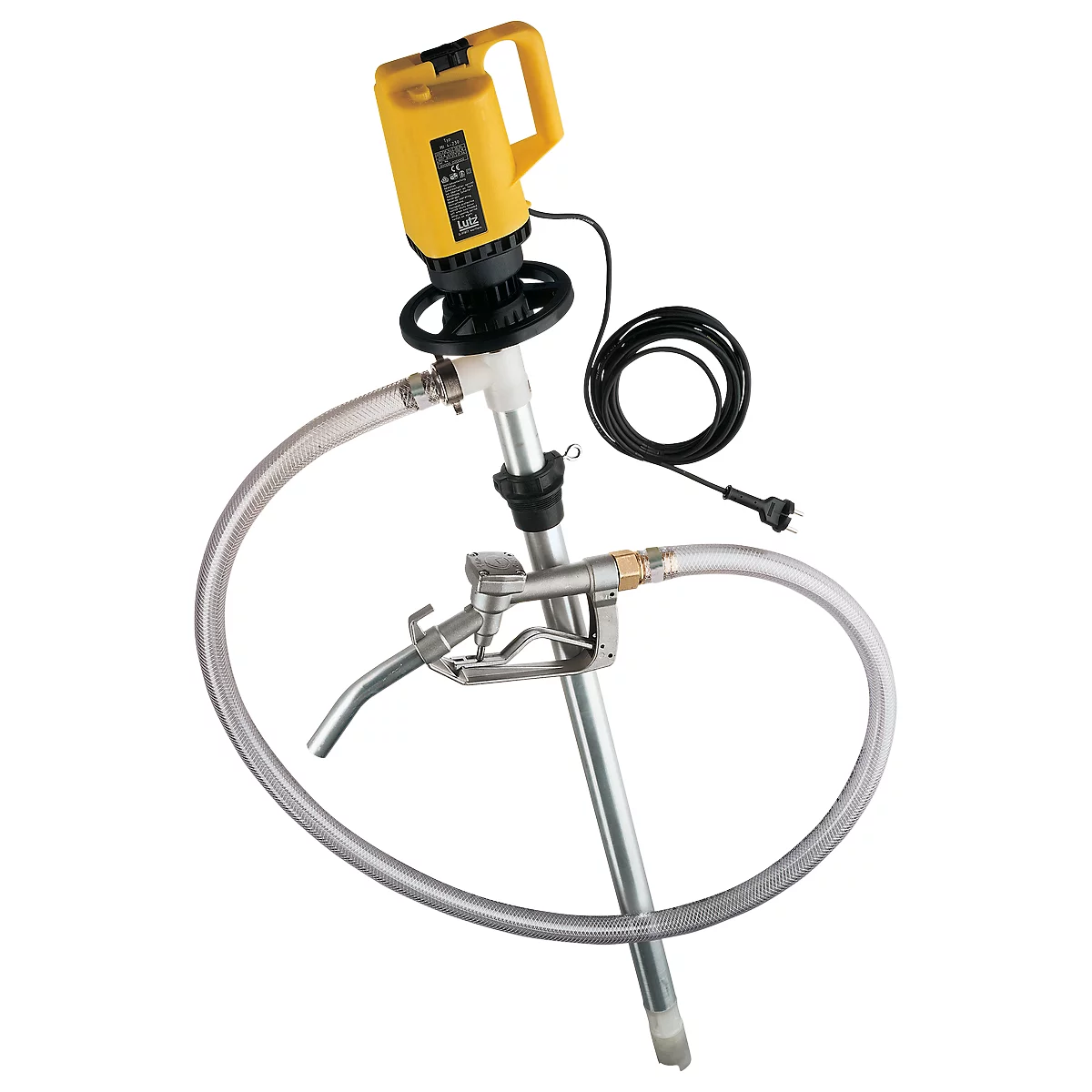

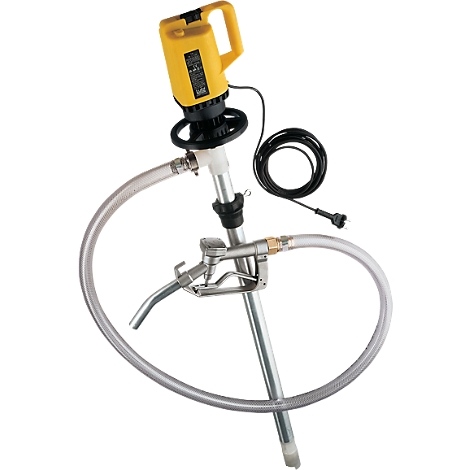

Lutz mineral oil pump set, electric, 1000 mm bore

The electrically operated Lutz Pump Set Mineral Oils is ideally suited for the safe filling of light viscosity mineral oils. The Lutz Pump Set Mineral Oils works up to an immersion depth of 1000 mm.
The Lutz Pump Set Mineral Oils is electrically operated and is used for the safe filling of light viscous mineral oils. The Lutz Pump Set Mineral Oils can therefore be used wherever it is necessary to fill diesel, heating, hydraulic, machine or engine oil. The pump set works up to a submersion depth of 1000 millimetres and a maximum medium temperature of 100 degrees. The delivery head is 19 (m WS), the flow rate 87 (50) litres per minute and the viscosity of the non-flammable and aggressive media at 500 mPas. In the Lutz pump set mineral oils there is a 500 Watt motor MI-4 in internally ventilated design. The pump mechanism is a 41-L-DL made of aluminum.
Further details:

• For safe filling of light viscous mineral oils.
• Applicable for e.g. diesel, heating oil, hydraulic oil, machine oil and engine oil
• For individual use for aggressive and non-flammable media
• Strong in handling mineral oils.
• Ergonomic, user-friendly design
• 500 Watt motor MI-4, internally ventilated
• Pumping unit Alu 41-L-DL in aluminium
• 2 m PVC spiral hose, 1" hose connections, hose clamps, aluminium nozzle, PP drum adapter
• Material: aluminium
• Density: 1,4 kg/dm
• Viscosity: 500 mPas
• Delivery rate: 87 (50) l/min
• Delivery head: 19 (m WS)
• Max. Medium temperature: 100 degrees
• Immersion depth: 1000 mm
