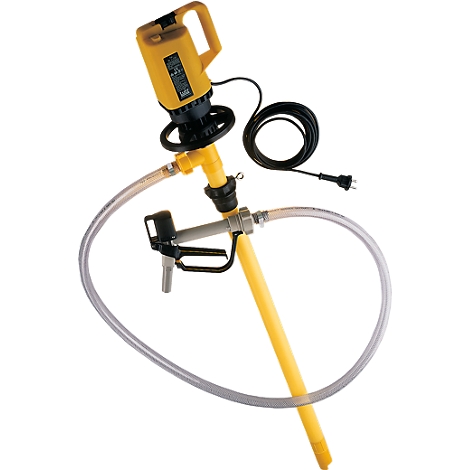

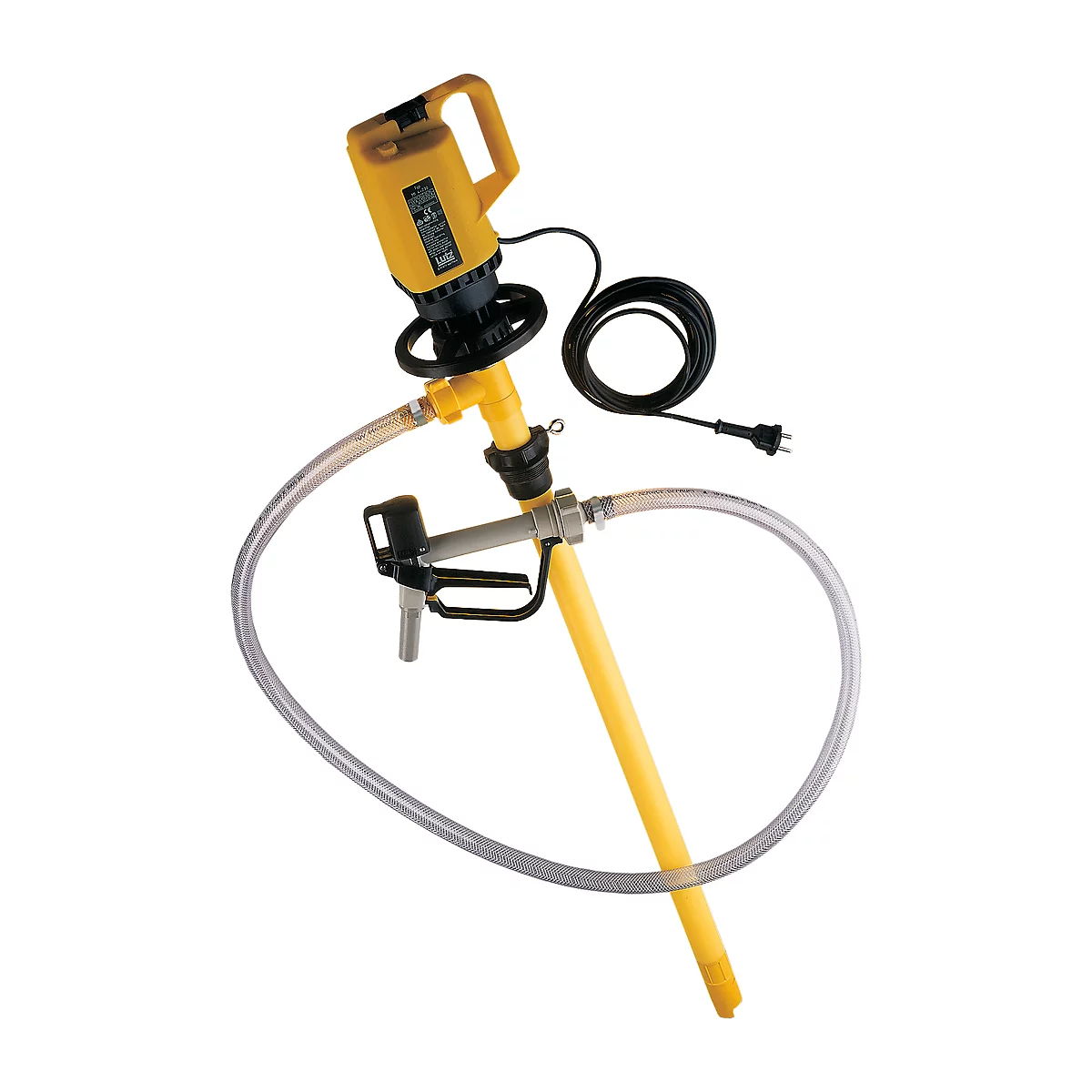

Lutz lye pump set, electric, 1000 mm bore

The Lutz Pump Set Lyes helps with the safe filling of lyes and is electrically operated. The Lutz Pump Set Lyes works with an immersion depth of either 1000 or 1200 millimetres.
With the Lutz pump set caustic solutions, low-viscosity caustic solutions such as sodium hydroxide, potassium hydroxide, ammonia water or formic and acetic acid can be filled safely. Thanks to its user-friendly and ergonomic design, the Lutz Lye Pump Set is ideal for individual use with aggressive and non-flammable media. The 500 Watt MI-4 motor is internally ventilated and the PP41-L-DL SS pumping unit in polypropylene is equipped with a stainless steel shaft. The maximum medium temperature is 50 degrees and the immersion depth is 1000 or 1200 millimetres. The flow rate is 87 (50) litres per minute and the viscosity 500 mPas. The discharge head is specified as 19 (m WS).
Further details:

• For safe filling of low viscosity caustic solutions.
• Can be used for e.g. sodium hydroxide, potassium hydroxide, ammonia water, formic acid and acetic acid
• For individual use with aggressive and non-flammable media
• Ergonomic, user-friendly design
• 500 Watt motor MI-4, internally ventilated
• Pumping unit PP41-L-DL SS in polypropylene with stainless steel shaft
• 2 m PVC spiral hose, ¾" and hose connections, hose clamps, PP nozzle, PP drum adapter
• Material: PP with stainless steel shaft
• Density: 1,4 kg/dm
• Viscosity: 500 mPas
• Delivery rate: 87 (50) l/min
• Delivery head: 19 (m WS)
• Max. Medium temperature: 50 degrees
• Immersion depth: 1000 mm or 1200 mm
