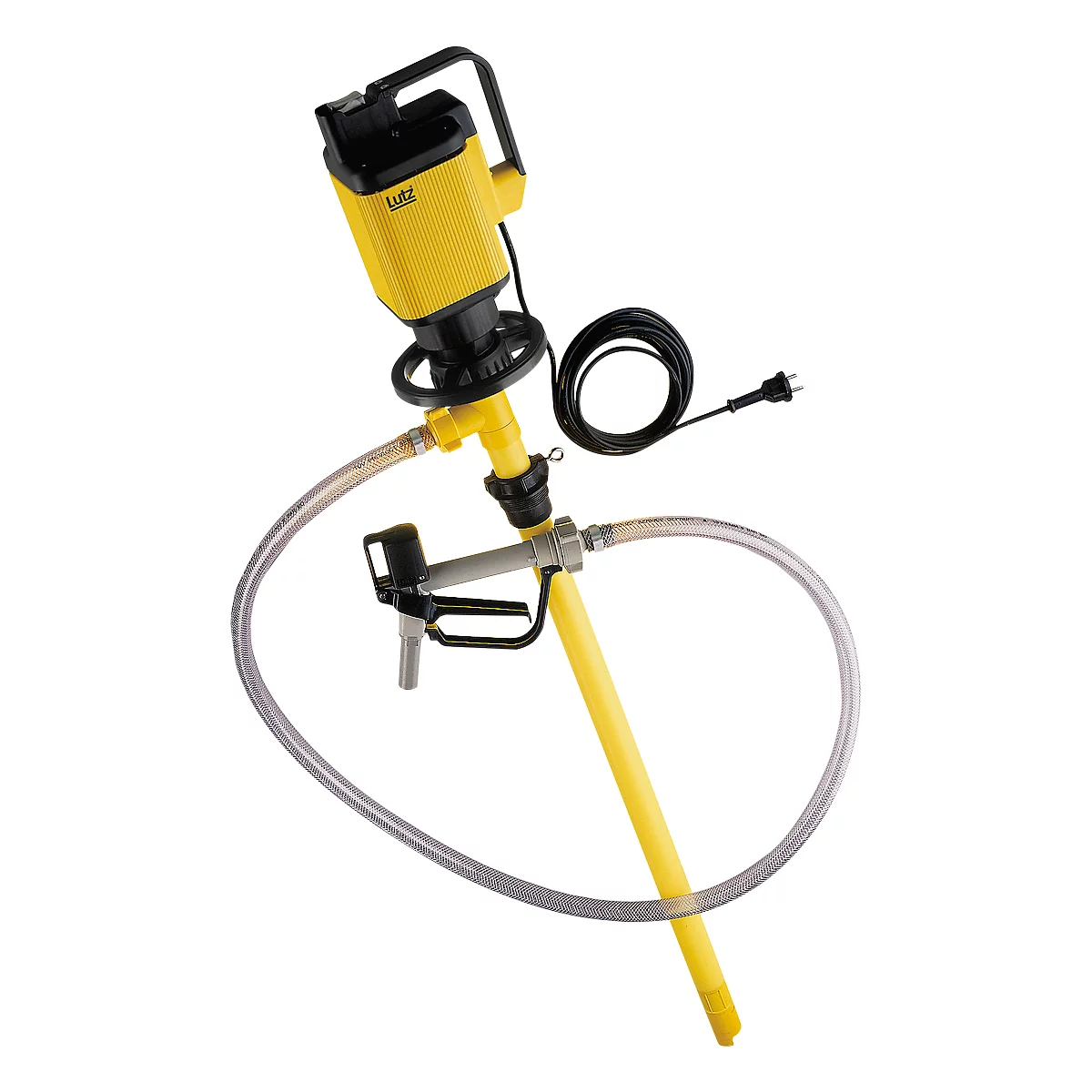

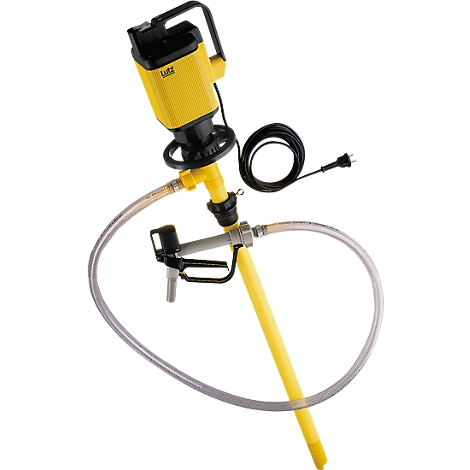

Acid pump set Lutz, electric, 1000 mm bore

The Lutz Pump Set Acids helps to fill acids safely and is electrically operated. The Lutz pump set acids works without problems at a diving depth of 1000 or 1200 millimetres. The Lutz Pump Set Acids is used for the safe filling of low viscosity acids such as hydrochloric acid, battery acid, ferric chloride, phosphate, chromic or citric acid. Even when working with fuming media and corrosive vapours, the Lutz Acids Pump Set demonstrates high productivity, safety and, thanks to its ergonomic and user-friendly design, practical handling comfort. The universal motor installed in the Lutz Pump Set Acids is an externally ventilated 460 Watt motor MA II 3, the pumping unit is a PP 41-L-DL HC in polypropylene with a shaft in Hastelloy. The PVC spiral hose is two meters long. The flow rate is 78 litres per minute and the immersion depth is designed for 1000 or 1200 millimetres.
Further details:

• For safe filling of low viscosity acids.
• Can be used for e.g. hydrochloric acid, battery acid, ferric chloride, phosphate acid, chromic acid and citric acid.
• For fuming media or corrosive vapours
• Powerful, externally ventilated universal motor.
• Ergonomic, user-friendly design
• 460 Watt motor MA II 3, externally ventilated
• Pump unit PP 41-L-DL HC in polypropylene with shaft in Hastelloy C
• 2 m PVC spiral hose 3/4" and hose connections, hose clamps, PP nozzle, PP drum adapter
• Material: PP with shaft in Hastelloy C
• Density: 1,6 kg/dm
• Viscosity: 500 mPas
• Delivery rate: 78 (45) l/min
• Delivery head: 16 (m WS)
• Max. Medium temperature: 50 degrees
• Immersion depth: 1000 mm or 1200 mm
