Product Safety Information

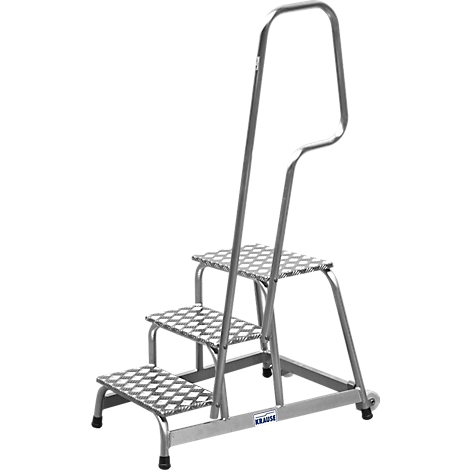

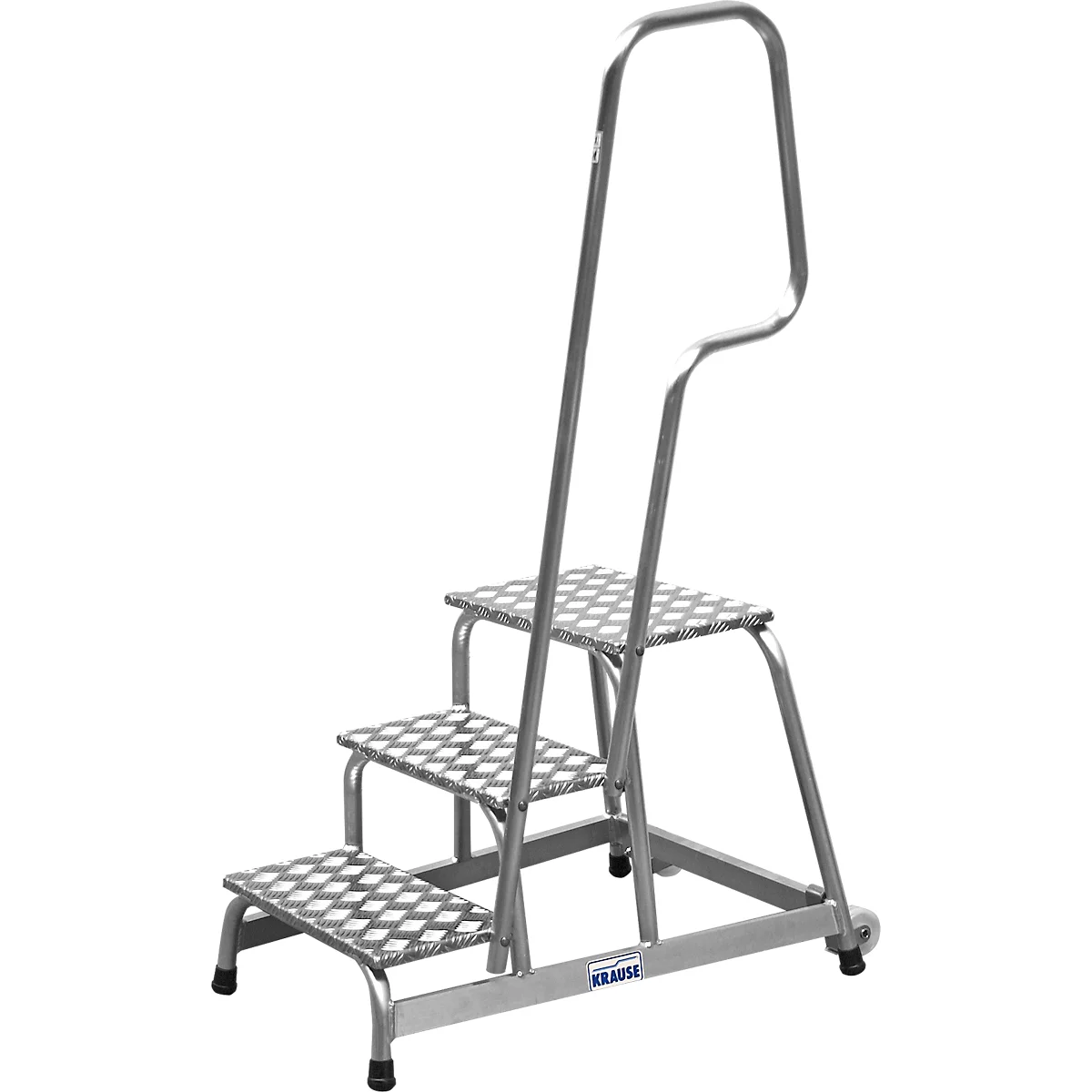

KRAUSE assembly ladder, with handrail/wheels, 3 steps, height 0.6 m, 11 kg

General information

Product safety instructions

Avoid overloading the mounting step; the maximum load capacity should not be exceeded.;Check the functionality of the mounting step before use.;Hold the handrail firmly during use to minimise the risk of falling.;Read the operating instructions before use.;Pull the handrail when climbing the step for your safety.;Wear non-slip shoes when using the assembly step.;Do not use the assembly step in wet or slippery areas.;The assembly step is only suitable for use by adults.;Keep the work area free of obstacles and hazards.;Children may only use the assembly step under adult supervision.;Check that all connections are tight before use.

Article numbers

95630 95631 95632

KRAUSE assembly ladder, with handrail/wheels, 3 steps, height 0.6 m, 11 kg

Name: KRAUSE assembly ladder, with handrail/wheels, 3 steps, height 0.6 m, 11 kg
Brand: Krause
SKU: 7727455
Price: 575.0 CHF
Availability: InStock

Item number: 95630

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

The assembly step is made of robust aluminium. The welded construction with steps made of aluminium chequer plate makes the step particularly robust. Non-slip foot caps ensure a high level of stability.

with one handrail and screwed-on castors
dimensions of upper standing surface: 520 x 305 mm
step depth: 240 mm
Step height: each step increases the height of the assembly step by 200 mm
3 steps with handrail: Height 600 mm, Weight: 11 kg
4 steps with handrail: Height 800 mm, Weight: 13.5 kg
5 steps with handrail: Height 1000 mm, Weight: 16,5 kg
TÜV/GS tested
EN 14183

Advantages for you

The 600 mm high step helps to reach high shelves and does not take up much storage space

Show moreShow less

Technical data

General features
Color silver
Delivery Partially assembled
Foldable No
GS-approved Yes
Handrail Yes
Height (m) 0.6
Height [mm] 600
Load capacity [kg] 150
Material Aluminium
Material folding step Aluminium
Material platform Aluminium
Max. load capacity (kg) 150
Mobile Yes
Number of rungs 3
Number of steps [pcs.] 3
Platform length(mm) 305
Platform surface anti-slip
Platform width [mm] 520
Standard EN 14183
Step depth (mm) 240
Steps 3
Surface step anti-slip
Version Grating steps
Version folding step top teeth of beams
Vertical height [m] 0.6
Weight [kg] 11
Working height (m) 0,6

Download

ProductSafety_10115328.pdf

Schäfer Shop Quality and Service

Special features of this product

Fr. 719.00

only Fr. 575.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Steps: 3

3 4 5

Vertical height [m]: 0.6 m

0.6 m 0.8 m 1 m

show all variants

Add to basket

Delivery time: within 2 weeks

Purchase on account available
Secure and fast payment

Our recommendations for you

Variants

Overview of variants - KRAUSE assembly step, with handrail and castors

Overview of the possible item variants. For more information, click on the respective variant.

Steps

Vertical height [m]

Item			Price
KRAUSE assembly ladder, with handrail/wheels, 3 steps, height 0.6 m, 11 kg Item number: 95630			Fr. 719.00 Fr. 575.00 Amount + - Added times

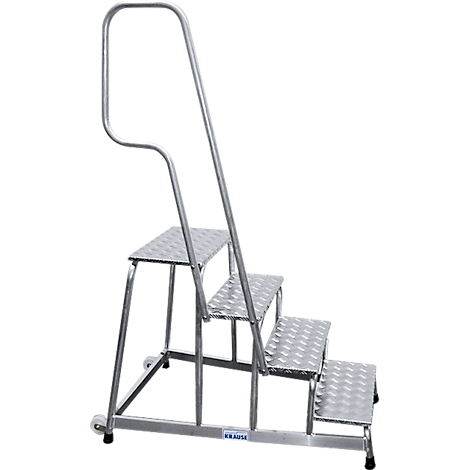

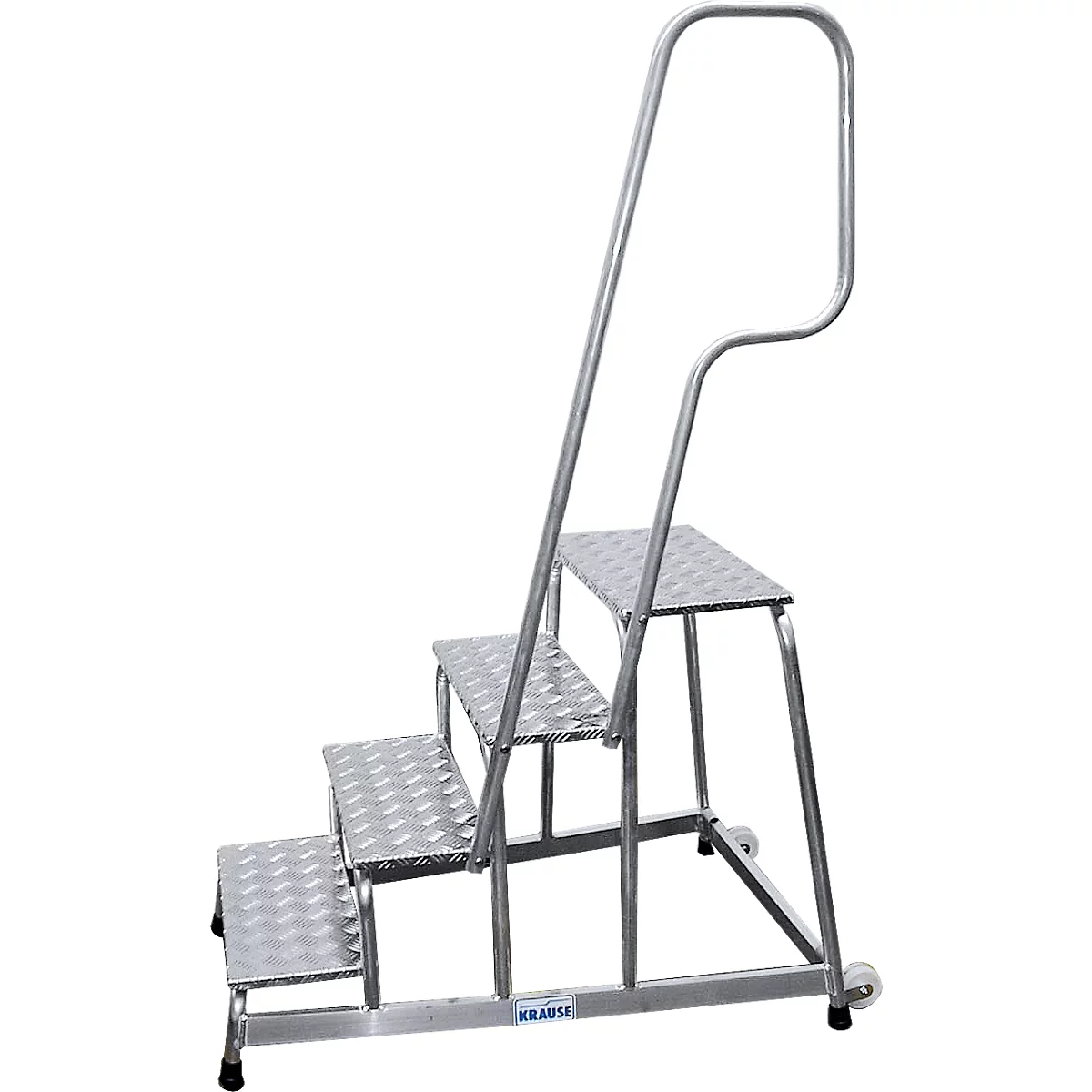

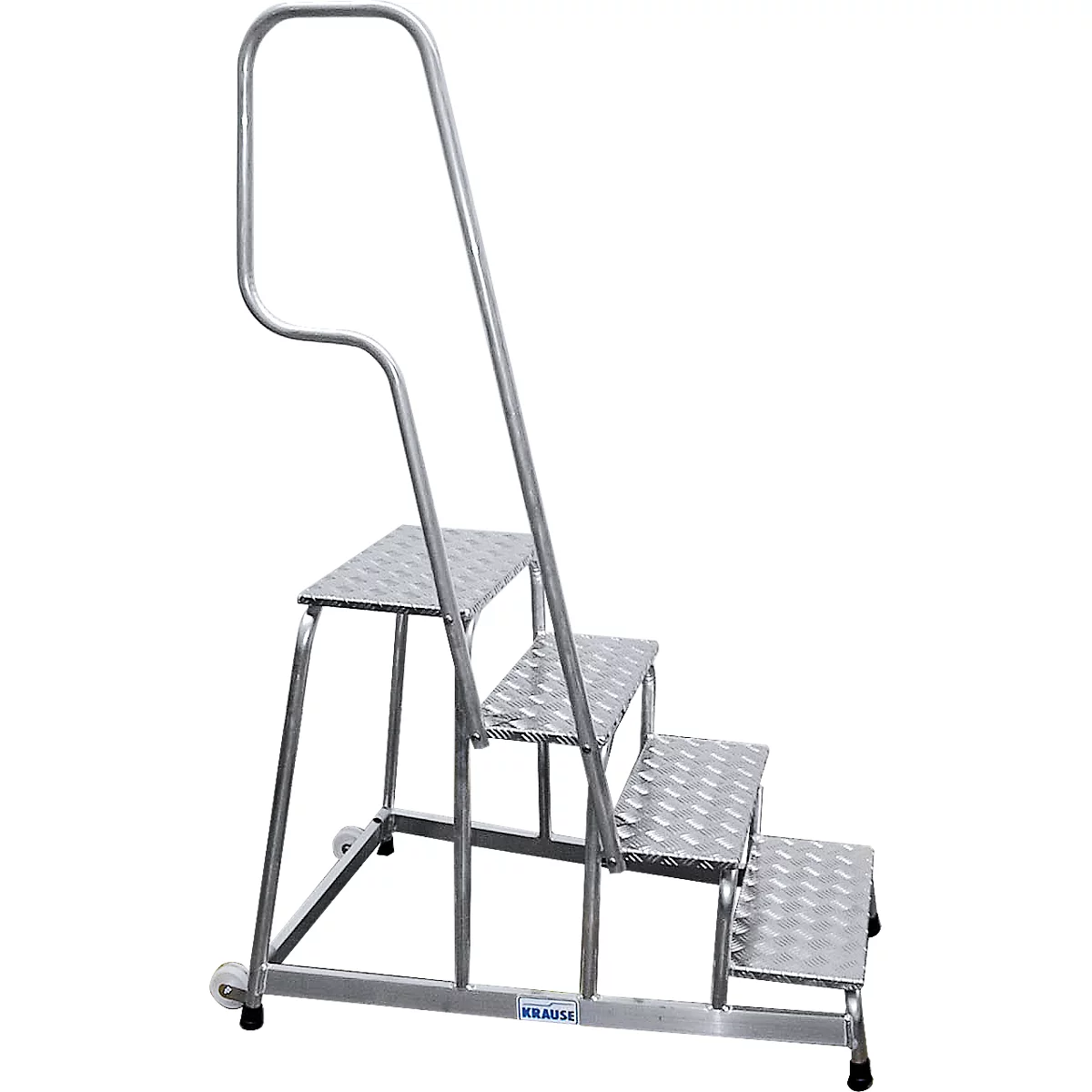

KRAUSE assembly ladder, with handrail/wheels, 4 steps, height 0.8 m, 13.5 kg Item number: 95631			Fr. 852.00 Fr. 682.00 Amount + - Added times

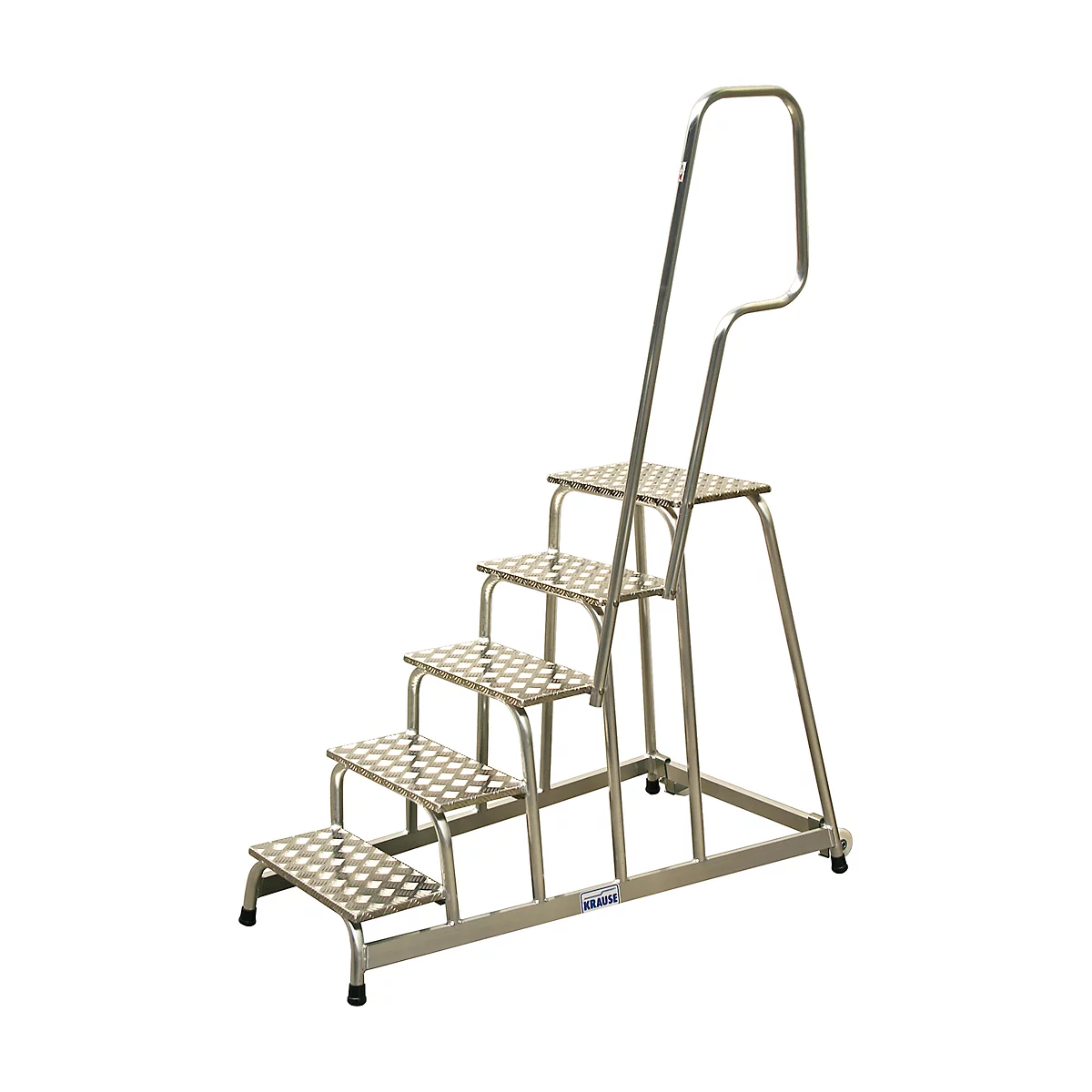

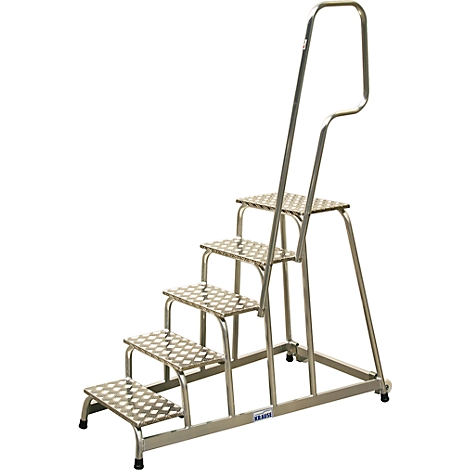

KRAUSE assembly ladder, with handrail/wheels, 5 steps, height 1 m, 16.5 kg Item number: 95632			Fr. 1’116.00 Amount + - Added times
