Product Safety Information

Heavy duty trailer, double-axle steering system, pneumatic tyres, load capacity 5000 kg, 3000 x 1500 mm

General information

EU authorized representative E-mail address

info@rollcart.de

EU authorized representative Name

Gabriel Transportsysteme GmbH

EU authorized representative Place

Eslohe

EU authorized representative Postal code

59889

EU authorized representative Street & house number

Frielinghausen 26

EU Plenipotentiary Country

Deutschland

Product safety instructions

Secure the load in accordance with the recommendations in the operating instructions to prevent falls during the journey.;The product may only be operated at the specified maximum travelling speed of 6 km/h.;There is a risk of overloading; observe the load capacity of 5000 kg.;Users are advised to wear protective equipment when operating the trailer.;Regular maintenance and inspection in accordance with the enclosed maintenance schedule are required to ensure safety.;Read the operating instructions carefully before use.

Article numbers

308503

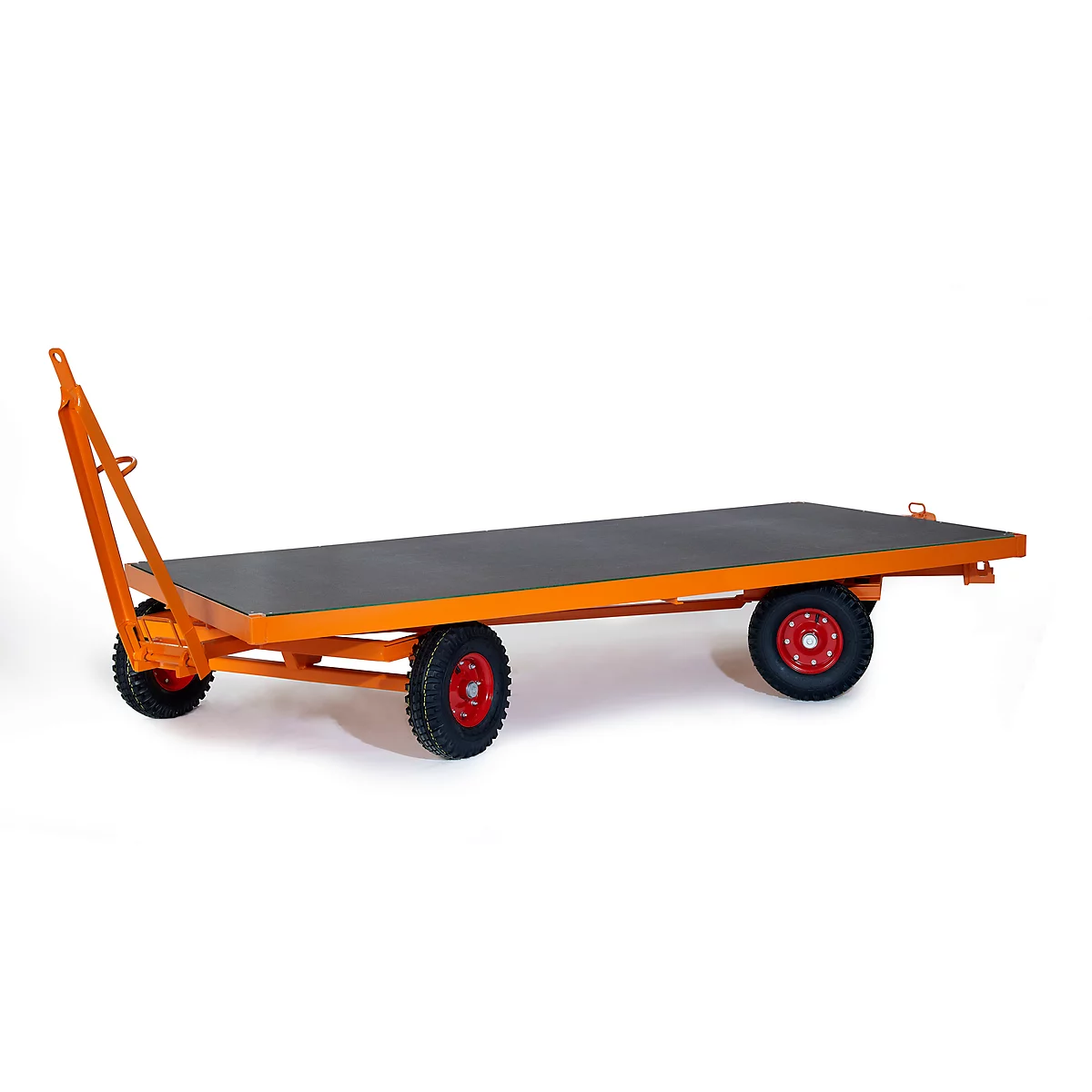

Heavy duty trailer, double-axle steering system, pneumatic tyres, load capacity 5000 kg, 3000 x 1500 mm

Item number: 308503

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

Base frame made of T-profile (80/80/8 mm), impulse-welded. All 4 corners with tube sleeves for inserting stanchions, toe boards, etc. Stable, non-slip and weatherproof screen printing plate underlaid with weatherproof, 25 mm thick OSB board. Quick-release drawbar system with drop guard. Trailer coupling with pin (Ø 30 mm). Painted in pure orange (RAL 2004).
2-axle turntable steering: Turntable steering with ball bearing slewing ring, small turning circle, steering angle 40° - therefore tilt-proof, reversible drawbar.

Risk assessment in accordance with DIN EN ISO 14121-1
Operating instructions
Maintenance schedule
Spare parts list
Max. Max. driving speed: 6 km/h
Loading area: W 3000 x D 1500 mm
Loading height: 600 mm
Tires: 530 x 160 mm
Tare weight: 410 kg
Load capacity: 5,000 kg

Show moreShow less

Technical data

General features
Color pure orange RAL 2004
Depth of loading area [mm] 3000
Design Transport
Equipment Trailer coupling with pin
Length of loading area [mm] 3000
Length [mm] 3000
Load capacity [kg] 5000
Load capacity [kg] 5000
Loading height (mm) 600
Material steel profile
Material loading area srigraphy plate
Platform gates No
Steering 2-axle turntable steering
Transport type Heavy-duty trailer
Tyres Air
Weight [kg] 485
Wheel/roller diameter (mm) 530
Wheel/roller finish Pneumatic tyres
Width loading area [mm] 1500
Width of wheels/rollers (mm) 160
Width [mm] 1500
