Product Safety Information

Hazardous material container SAFE Tank 400 KTC, galvanized, W 2100 x D 2170 x H 2400 mm, up to 1 x 1000 l IBC

General information

Product safety instructions

Ensure that the hazardous substance container is only used for the prescribed storage of media hazardous to water.;Take care when handling heavy loads; use suitable loading and unloading equipment.;Do not exceed the maximum storage capacity of 1040 litres, especially in water protection areas.;The collection volume must be ensured to prevent environmental damage.;Wear suitable protective clothing and safety equipment when working with hazardous substances.

Article numbers

137764

Hazardous material container SAFE Tank 400 KTC, galvanized, W 2100 x D 2170 x H 2400 mm, up to 1 x 1000 l IBC

Item number: 137764

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

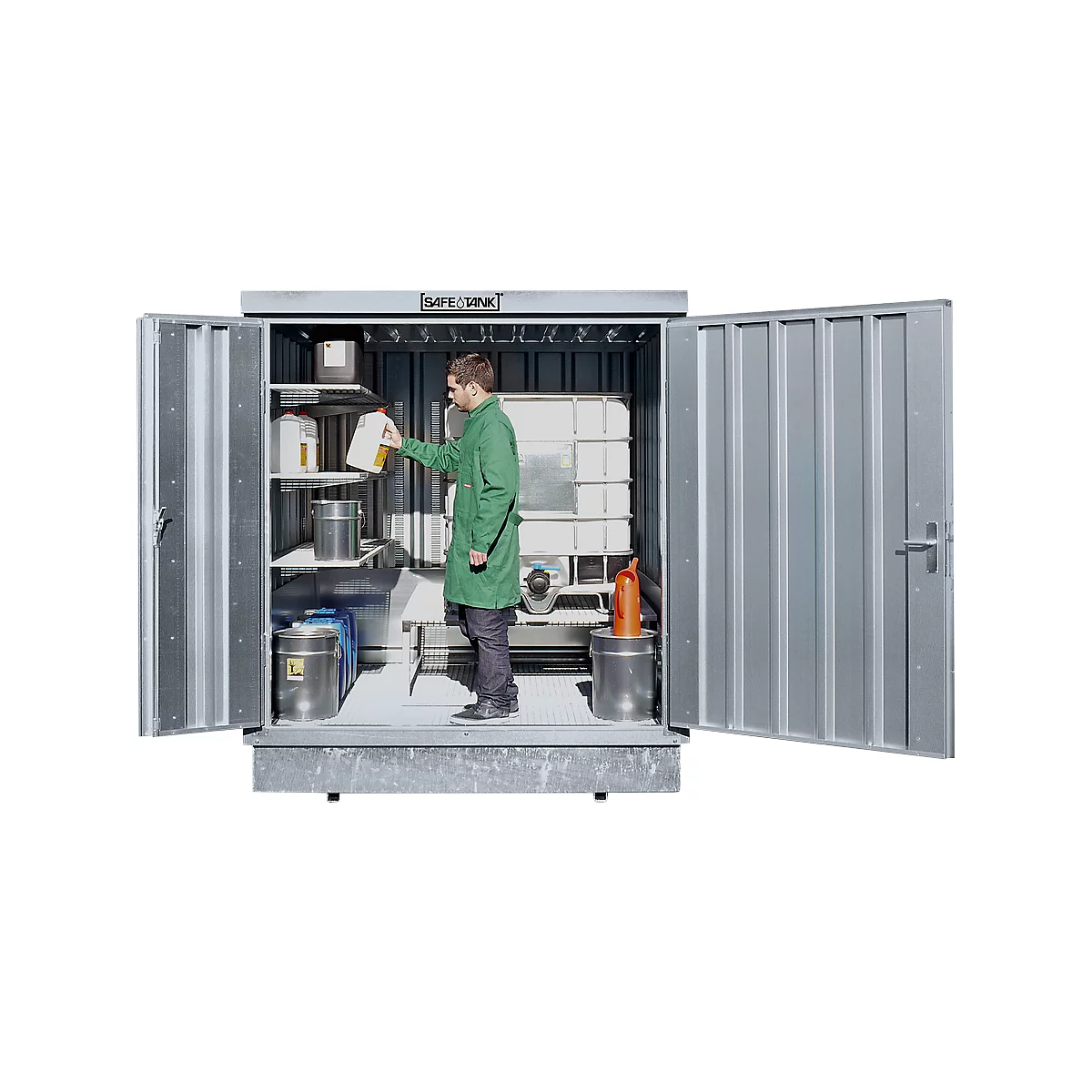

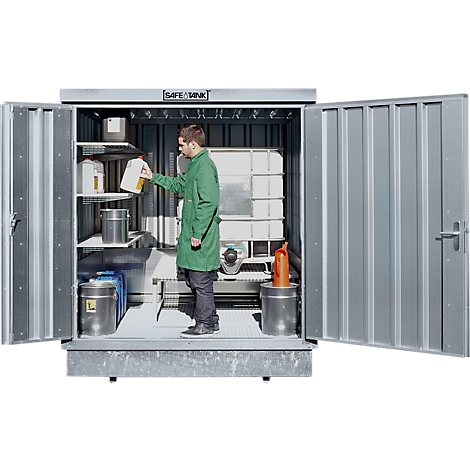

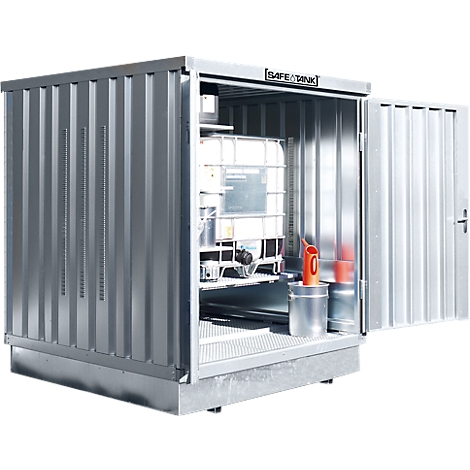

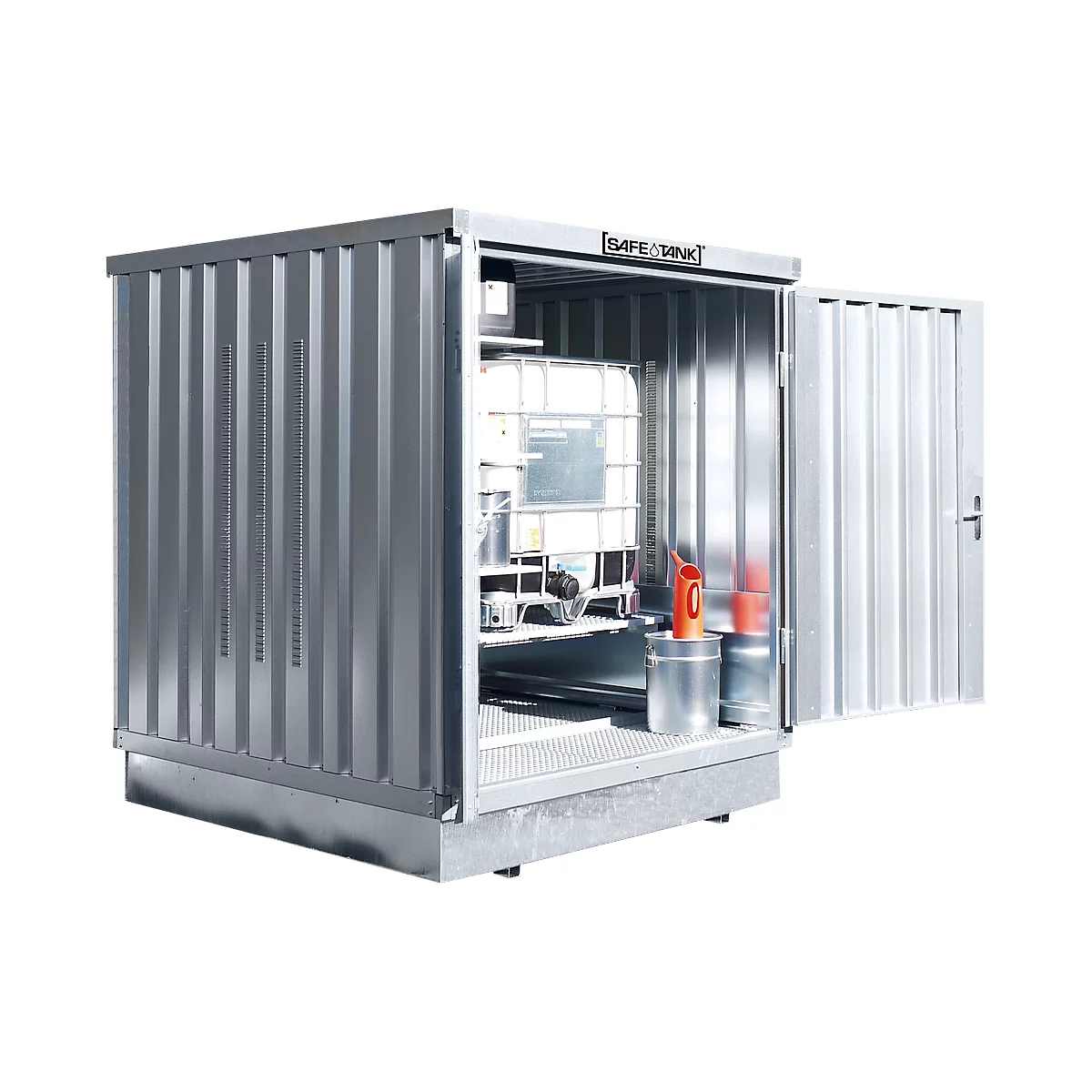

The galvanized hazardous material container SAFE Tank 400 KTC is designed in such a way that it is particularly suitable for the outdoor storage of media hazardous to water (GHS categories 1-3) in large containers of up to 1000 liters.

Equipped as standard with a double-wing door (W 1800 x H 1890 mm), easy loading by forklift truck is possible over the entire 2170 mm side. In particular, the storage of IBC tank containers can be handled quickly thanks to the large opening width. Alternatively, you can also easily store up to 9 x 200 l drums in the SAFE Tank 400 KTC. Thanks to its high collection volume of 1040 liters, the hazardous material container is also suitable for use in water protection areas. In a water protection area, however, 100% of the stored hazardous material volume must be collected, so that in this case the maximum total storage volume in the container may not exceed 1040 liters. The three-sided splash guard installed at the factory safely directs liquids escaping from leaking containers into the collection tray.

Notice:

Unloading is done on site by a suitable crane or forklift of the recipient.

Further details:

Galvanized design closed on all sides for safe storage of hazardous materials outdoors
Standard three-sided splash protection wall safely directs escaping liquids into the collection tray
Lockable asymmetrically divided double wing door with drive bolt, safety lock and lever handle set
Roof element with integrated rain gutters, snow load 220 kg/m²
Meets the requirements of the Water Resources Act (WHG)
Declaration of conformity (ÜHP) according to Building Rules List A Part 1 DiBT
Assembly: Delivery is made ready for installation
Material: Outer walls and roof made of sendzimir galvanized trapezoidal sheet steel, with collecting tray made of 3 mm sheet steel
Galvanized grid: 1000 kg/m² load capacity
Storage capacity: max. 1 x 1000 l IBC container or 9 x 200 l drums
Collecting capacity: 1040 liters
Outside dimensions: W 2.100 x D 2.170 x H 2.400 mm
Inner dimensions: W 2.000 x D 2.000 x H 2.000 mm
Quality Made in Germany
Testable site-related statics according to DIN EN 1990, 1991, 1993

Advantages for you

This product is suitable for the storage of substances hazardous to water GHS 1-3

Show moreShow less

Technical data

General features
Accessible from below Yes
Capacity max. 1 x 1000 l IBC container or 9 x 200 l drums
Capacity barrels 9 x 200 l
Capacity IBC container 1
Collecting volume [l] 1040
Craneable No
Delivery Mounted
Depth [mm] 2170
Door position long side, middle
Door stop right
Door type Gullwing door
Equipment Drip tray and accessible grating shelves
Fire resistance No
Floor version Collecting tray with grating
GS-approved No
Hazardous substance type Substances hazardous to water GHS 1-4
Height [mm] 2400
Inner height [mm] 2000
Inside depth (mm) 2000
Inside width [mm] 2000
Insulation No
Load capacity (kg/m²) 1000
Lock safety lock
Lockable Yes
Material container Sheet steel, galvanised
Max. Roof load [kg] 220
Number of door(s) 1
Permeable wall thickness (mm) 3
Potential equalisation No
Standard DIN EN 1990;DIN EN 1991;DIN EN 1993;General technical approval;declaration of conformity (ÜHP) according to DIBt
Storage location Indoor/Outdoor
Suitable for Storage of substances hazardous to water and flammable liquids
Surface galvanised
Tray material Sheet steel
Undercarriage height (mm) 40
Ventilation ventilation openings in the bottom edge
Weight [kg] 520
Colors
Color galvanised
Dimensions
Width [mm] 2100

Schäfer Shop Quality and Service

Special features of this product

Danger - H410 Very toxic to aquatic life with long lasting effects.

only Fr. 6’303.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Add to basket

Delivery time: approx. 7 weeks

Purchase on account available
Secure and fast payment

Accessories

Item			Price
Exterior Wall Paint for SAFE TANK 5000 Item number: 130199			only Fr. 4’943.00 from Fr. 4’943.00 per Pcs. Go to product
Felt liner (underside of roof) for SAFE TANK 5000 Item number: 130175			only Fr. 2’647.00 from Fr. 2’647.00 per Pcs. Go to product
Aluminium loading gangway, L 1500 x W 750 mm Item number: 131670			only Fr. 718.00 from Fr. 718.00 per Pcs. Go to product
Suspension for crane for empty transport Item number: 39102			only Fr. 239.00 from Fr. 239.00 per Pcs. Go to product
Grid shelving, H 2000 x W 2000 x D 500 mm Item number: 130192			only Fr. 794.00 from Fr. 794.00 per Pcs. Go to product
CEE plug for additional equipment for insulated SAFE tank container, 380 V / 16 or 32 A Item number: 137763			only Fr. 214.00 from Fr. 214.00 per Pcs. Go to product
Electrical installation package for material container MC 1100-1600, according to VDE, LED light with 9 W & 4000 K, fixed connection, Schuko socket, IP44 Item number: 464111			only Fr. 514.00 from Fr. 514.00 per Pcs. Go to product
Gas pressure damper SAEBU, for SAFE TANK container with single door Item number: 464635			only Fr. 195.00 from Fr. 195.00 per Pcs. Go to product
