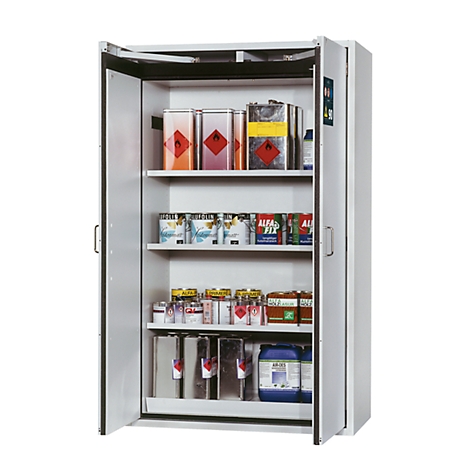

Safety cabinet type 90 asecos S-CLASSIC-90, hinged doors with door locking system, W 1196 x D 616 x H 1968 mm, light grey RAL 7035

The fire-resistant hazardous substance cabinet type 90 is the ideal choice for the storage of hazardous substances in workrooms in accordance with TRGS 510. It resists fire for up to 90 minutes (type-tested in accordance with DIN EN 14470-1 and DIN EN 14727) and is therefore ideally suited for the safe and compliant storage of flammable liquids of all hazard classes in this type of room. It is also GS-tested and labeled in accordance with DIN EN 14470-1.

It is equipped with 3 shelves, a drip tray in accordance with StawaR, a perforated plate insert and a door locking system for easy storage and retrieval.

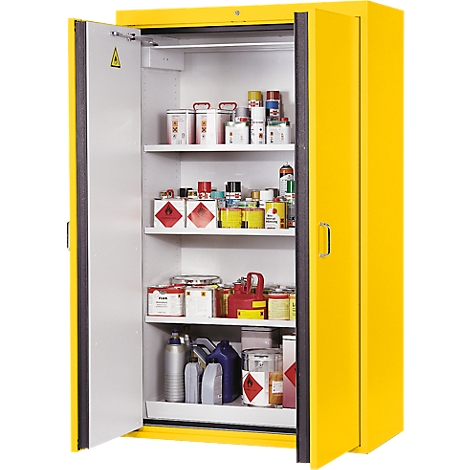

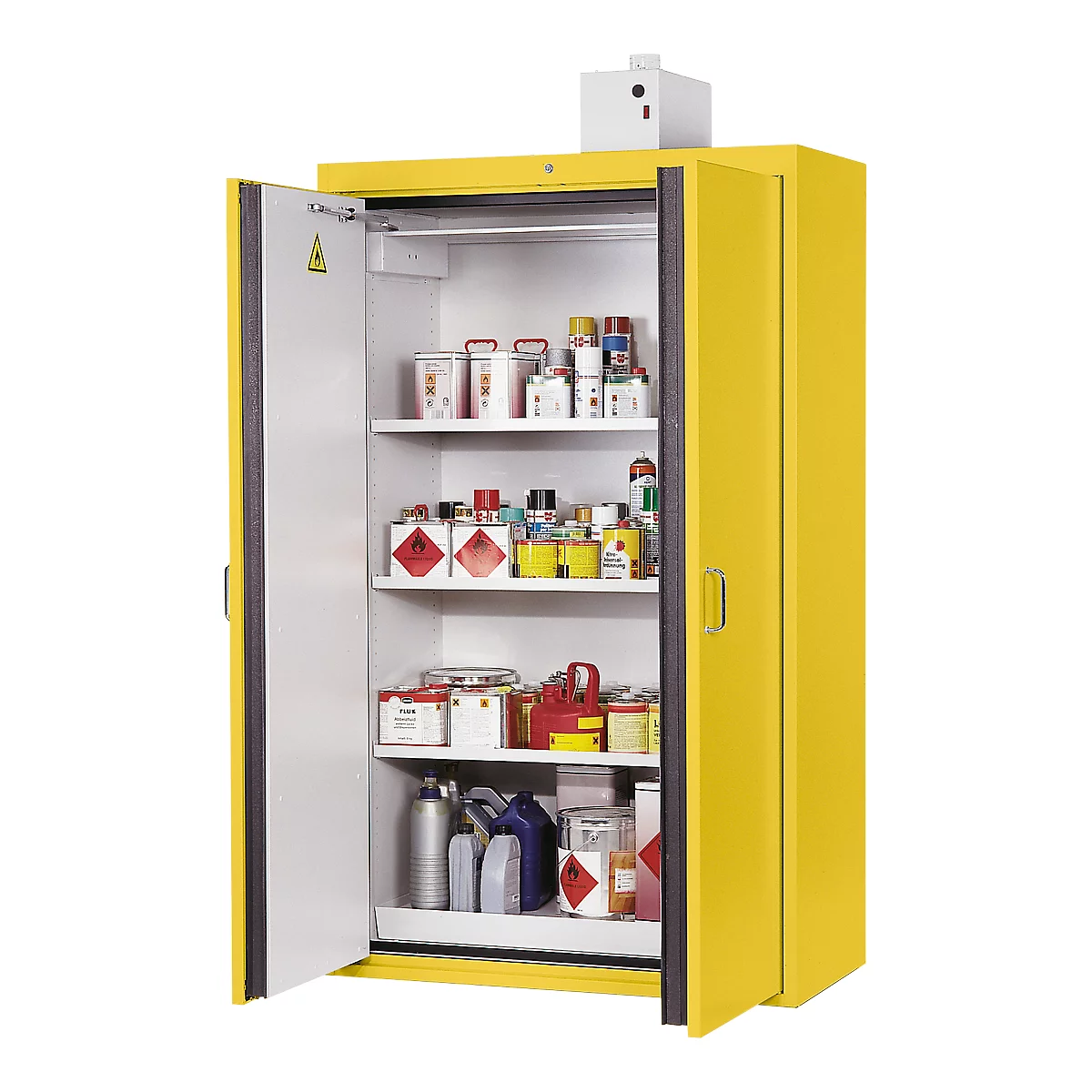

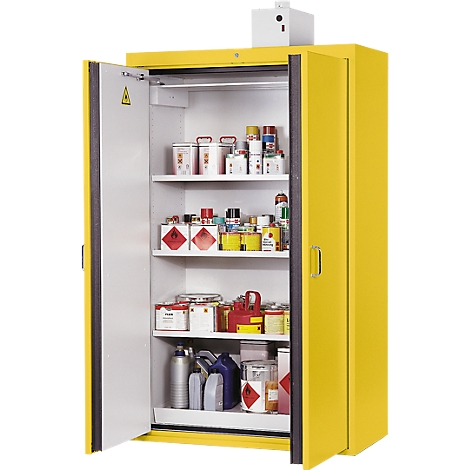

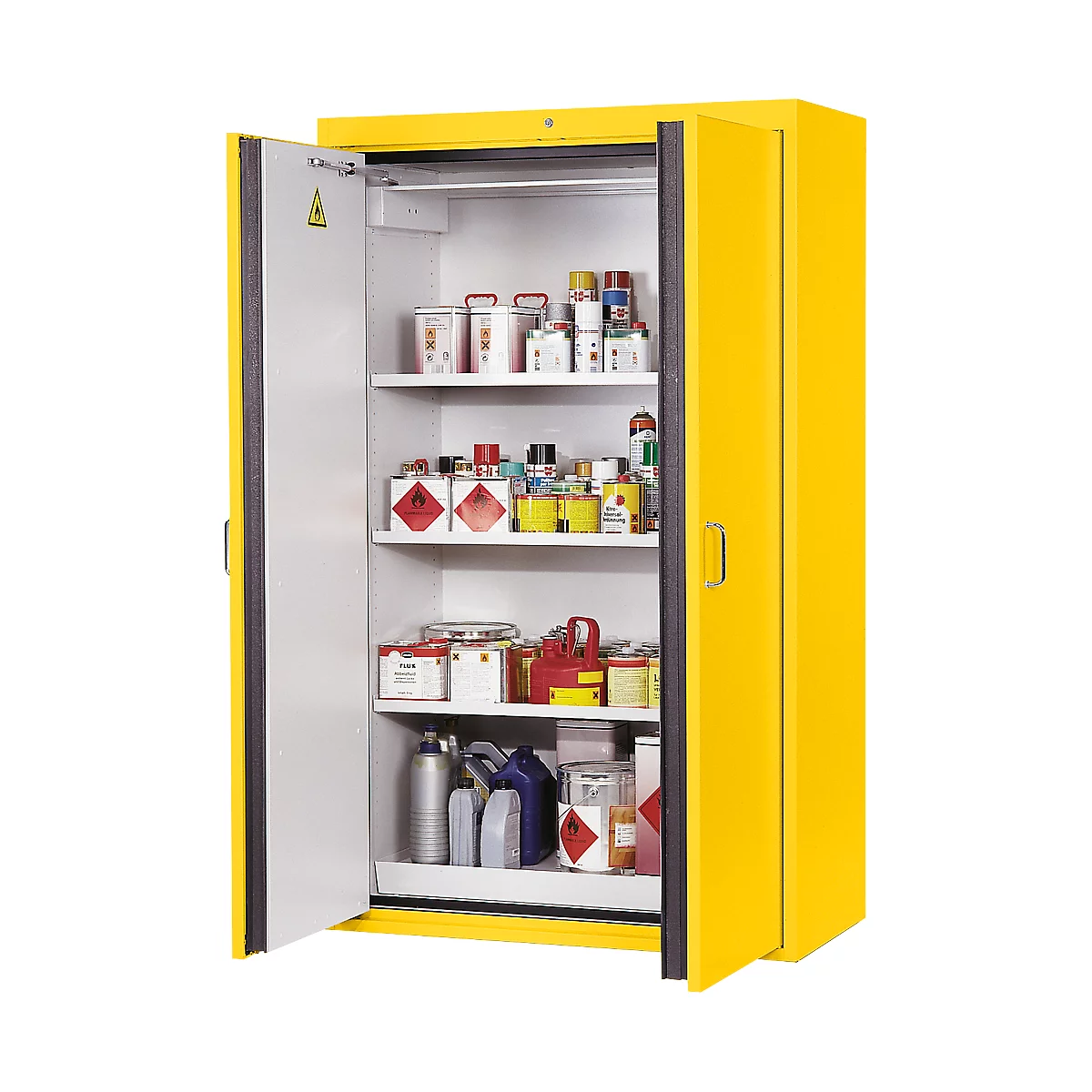

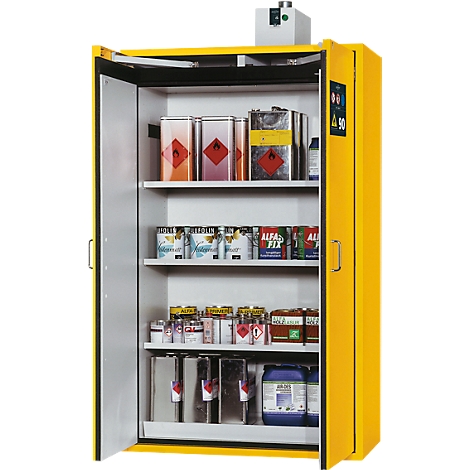

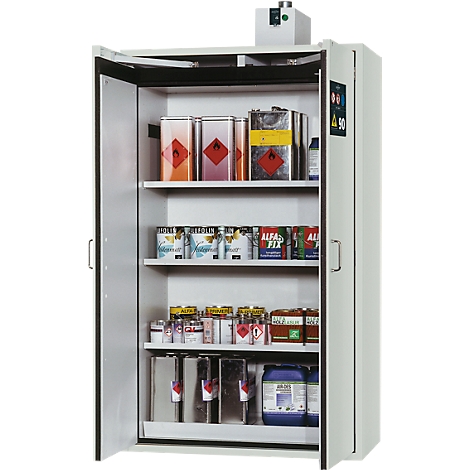

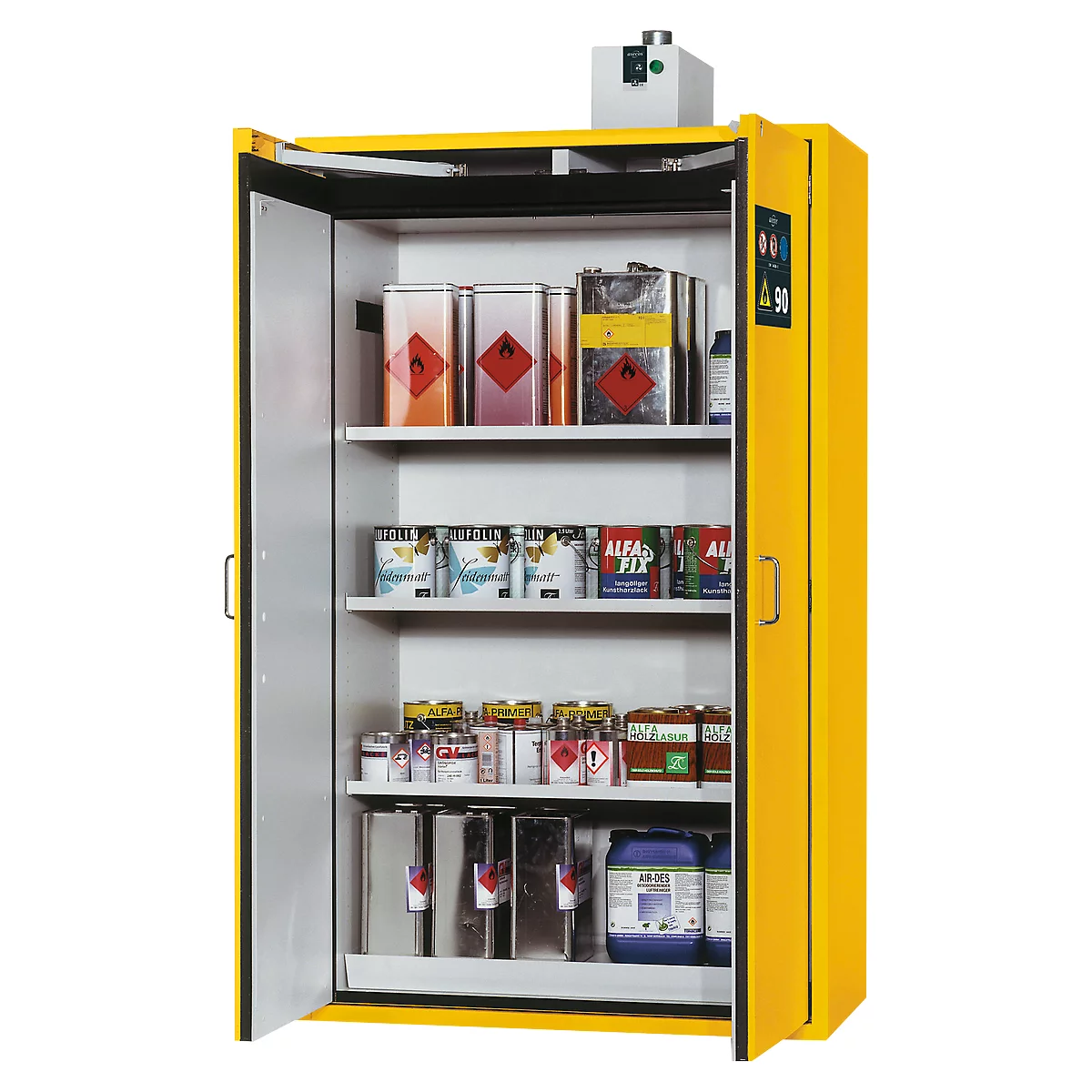

The lockable hazardous materials cabinet type 90 is available with a body and doors in light gray RAL 7035 or in eye-catching safety yellow RAL 1004.

Further details:

• Unrestricted storage of flammable liquids of all hazard classes in work areas
• German quality product made from plastic-coated sheet steel
• Inner surfaces made of highly chemically resistant material panels
• Door locking system for easy storage and retrieval (self-closing in the event of fire)

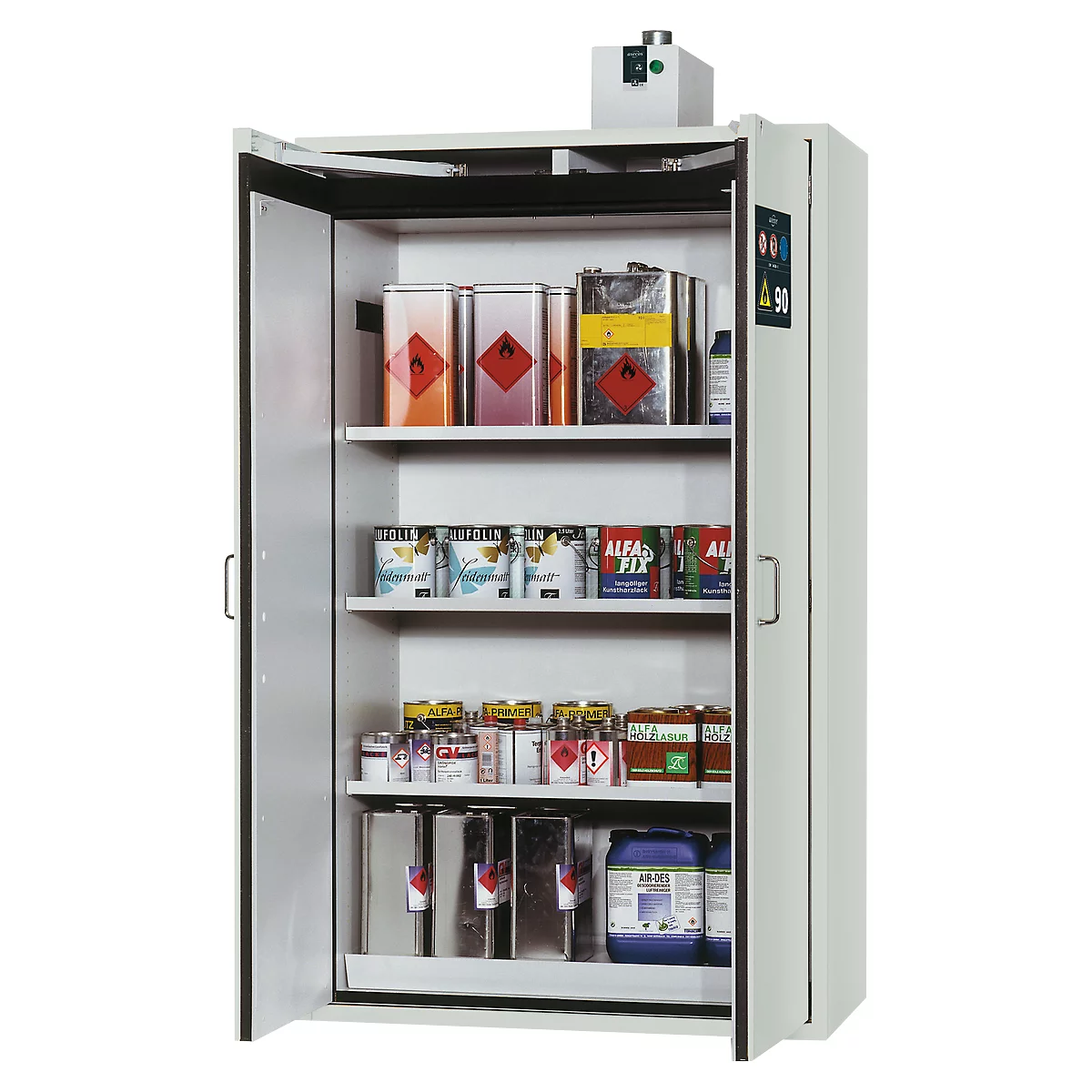

• Ventilation and extraction: integrated ventilation and extraction system for connection (NW75) to a technical exhaust air system (not included, please order separately)
  • Rotating wheel in the exhaust air grille as an indicator for sufficient technical ventilation
• Smooth door operation
• Convenient working on the enclosure thanks to large operating width when doors are open
• Locking of the doors with profile cylinder (locking system compatible)
• Adjustment devices to compensate for uneven floors
• Trough-shaped storage levels, load capacity 75 kg (distributed load)
• Floor tray load capacity 150 kg
• Flexible height adjustment (32 mm increments)
• Tested drip tray in accordance with StawaR
• Exhaust air connection (NW 75) in the roof area
• Including 3 shelves, floor drip tray (in accordance with StawaR), perforated plate insert and door locking system
• Optionally with body and doors in light grey RAL 7035 or safety yellow RAL 1004
• Floor sump tray volume: 33 l
• External dimensions W x D x H: 1196 x 616 x 1968 mm
• Internal dimensions W x D x H: 1050 x 524 x 1742 mm
• Weight: approx. 420 kg

Delivery free to place of use:

• Freight elevator and sufficient room widths required.
• The access and transport routes must be sufficiently dimensioned and the access road must be suitable for trucks.
• Stair transportation costs on request.
• The product illustration contains accessories/decorative material which are not included in the scope of delivery.
