Product Safety Information

GRP catch basin 220/3, without grating

General information

Product safety instructions

Observe chemical resistance to ensure safe storage.;Observe the applicable safety regulations when storing flammable liquids.;Do not exceed the maximum surface load of 1200 kg to avoid structural damage or injury.;The product may only be placed on level ground to ensure stability and safety.;Carry out regular inspections to detect damage or material fatigue.;Dispose of in accordance with local regulations for hazardous waste.

Article numbers

34186 34187

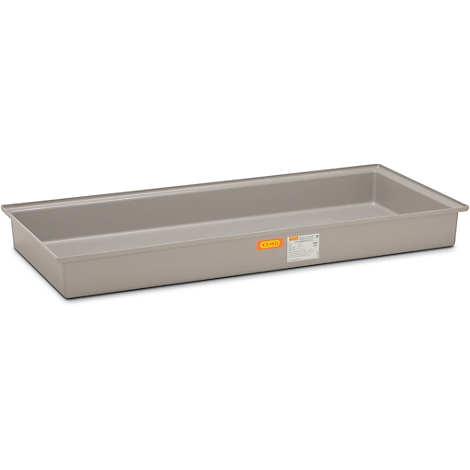

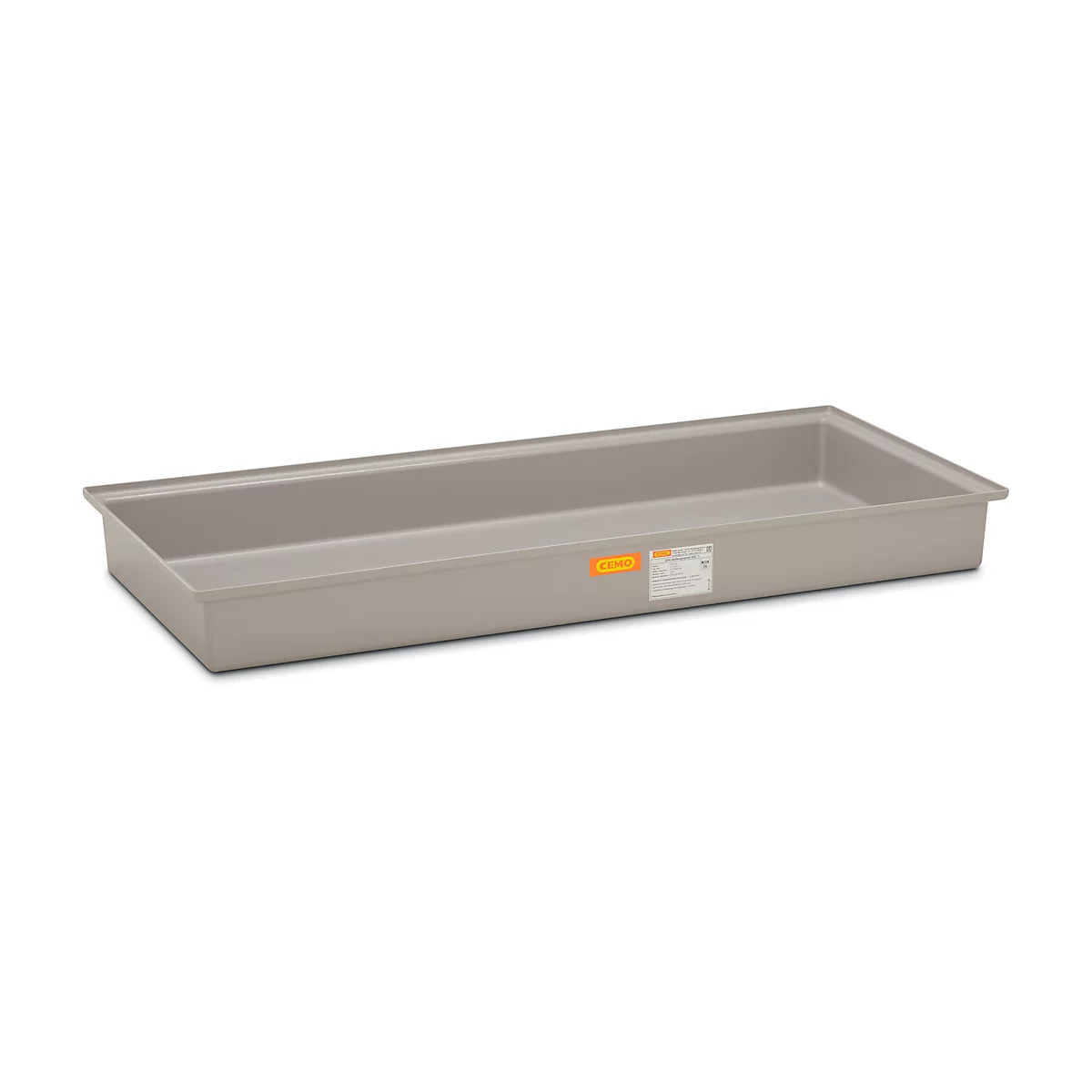

GRP catch basin 220/3, without grating

Item number: 34186

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

All collection trays made of glass-fibre reinforced plastic (GRP) with general building authority approval Z-40.12-227 from DIBt-Berlin for the storage of highly water-polluting substances in accordance with regulations. They comply with the requirements of the Water Resources Act (WHG) and are also approved for the storage of flammable liquids. Request resistance list if required.
Features and benefits:
- Chemical-resistant, non-rusting-
Also approved for flammable liquids-
Easy to keep clean-
Low weight-
Can be placed directly on level ground-
With or without grating made of hot-dip galvanised steel (max. surface load 1200 kg
)- For storing e.g. 3 x 200 litre drums-
Dimensions: L 1880 x W 850 x H 190 mm-
Material: standard resin
**For particularly aggressive media, drip trays are available in special resin design complete with GRP grating. Please enquire.

Show moreShow less

Technical data

General features
Approval no. Z-40.12-227
Capacity 3 x 200
Collecting volume [l] 220
Color silver
Container type Barrels
Depth [mm] 850,00
Equipment Locking cam
Grid Yes
Hazardous substance type Aggressive chemicals; Flammable liquids (flash point > 55°); Substances hazardous to water GHS 1-4
Height [mm] 190
Length [mm] 1880
Load capacity [kg] 1200
Material Glass-reinforced plastic (GRP)
Mobile not forklift compatible
Number of containers [pcs.] 3
Permeable wall thickness (mm) 5
Stackable No
Weight [kg] 18
Width [mm] 1880

Download

ProductSafety_10009310.pdf

Schäfer Shop Quality and Service

Special features of this product

Danger - H314 Causes severe skin burns and eye damage.

Danger - H410 Very toxic to aquatic life with long lasting effects.

only Fr. 583.75

per Pcs.

including VAT plus handling fee

If the order value is less than CHF 100.00, a handling fee of CHF 9.60 will be charged.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Weight [kg]: 18 kg

18 kg 43 kg

show all variants

Add to basket

Delivery time: approx. 5 weeks

Secure and fast payment

Variants

Overview of variants - GRP collecting tray 220/3 (220 litres)

Overview of the possible item variants. For more information, click on the respective variant.

Weight [kg]

Item			Price
GRP catch basin 220/3, without grating Item number: 34186			Fr. 583.75 Amount + - Added times

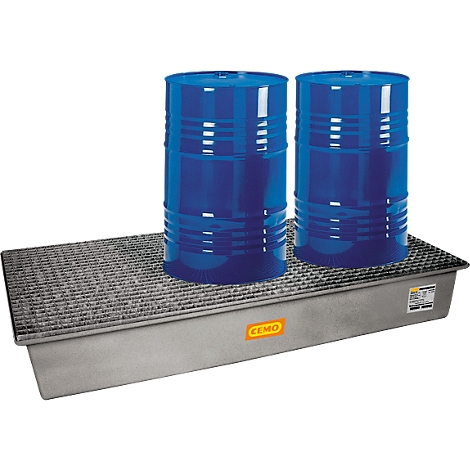

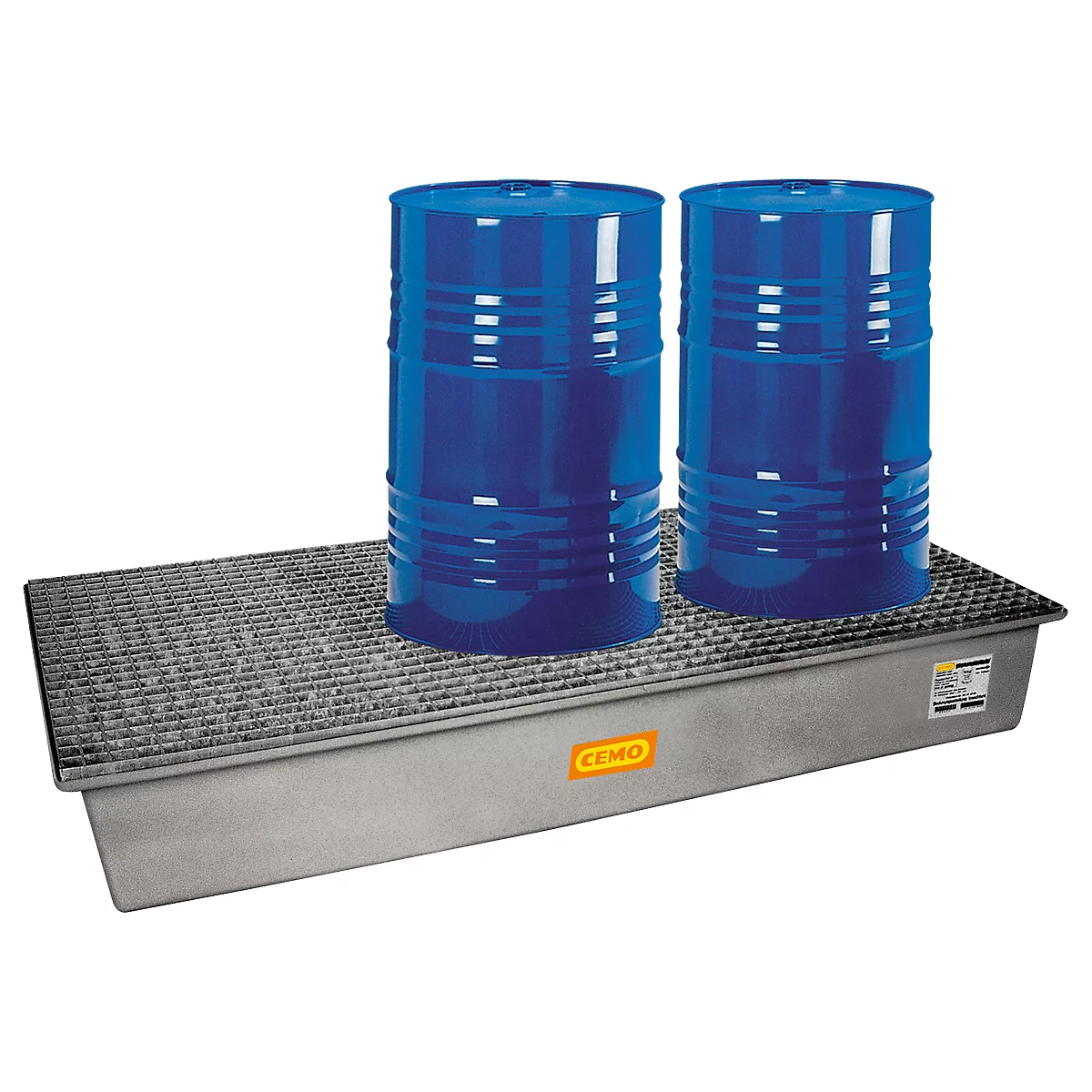

Collecting pan GRP 220/3, with grating Item number: 34187			Fr. 883.20 Amount + - Added times
