Racking System R3000, Rack, H 1960 x 300 mm

Item number: 125240

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

In the workshop or warehouse, nothing beats a flexible boltless shelving system made of sheet steel that fits seemingly infinitely and can store even heavy loads effortlessly. Like the R 3000 shelving system, to which this stable frame belongs.

The rolling profile of the frame for the R 3000 shelving system is made of high-quality, sendzimir-galvanised sheet steel and is therefore perfectly protected against corrosion. The frame is delivered fully assembled and comes to you with bulkhead stays and a metal base plate, but without end caps.

As the frame for the R 3000 shelving system is designed as an add-on upright, the front part is conically profiled. In this way, the suspension pockets grip positively and without play when longitudinal bracing is used. The uprights have cams on both flanks for hooking in the intermediate shelves in a 53:53 mm grid.

Important details:

Upright frame for shelving system R 3000
Roll profile, 60 x 31 mm
Made of high quality, sendzimir galvanized sheet steel
Incl. bulkhead stays and metal base plate, without end cap
Designed as an add-on upright
Front part conically profiled
Ready mounted
GS-tested

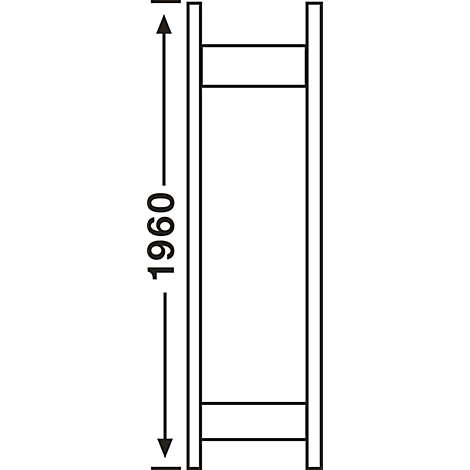

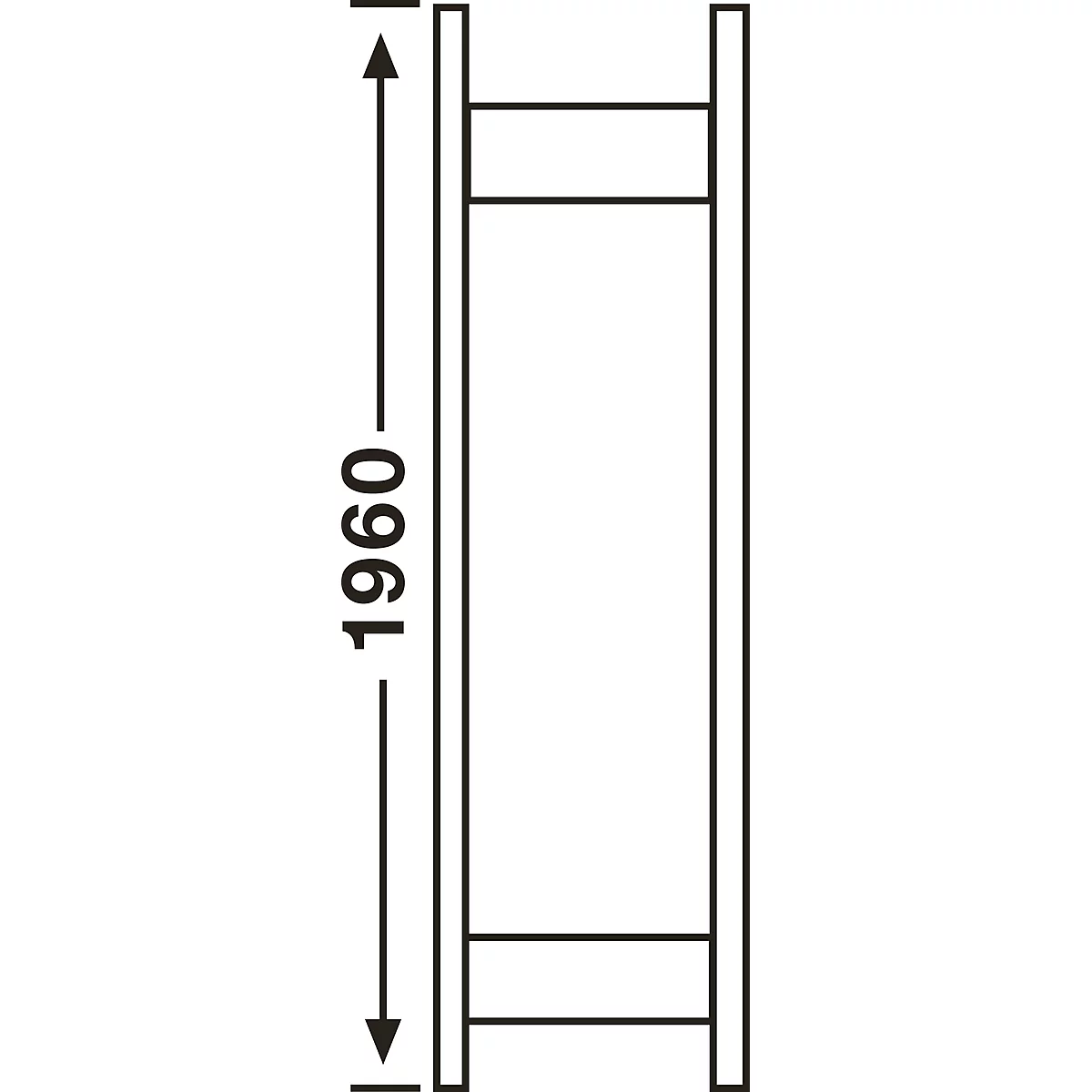

Dimensions: W 600 x D 300, 400, 500 or 600 x H 1960 mm

Show moreShow less

Technical data

General features
Color silver
Colour of the shelf frame silver
Depth [mm] 300
GS-approved Yes
Height [mm] 1960
Material Sheet steel
Shelf type Storage rack
Shelving system R 3000
Surface galvanised
Dimensions
Dimensions H x W (mm) 1960 x 300

Download

ProductSafety_10152741.pdf

Schäfer Shop Quality and Service

only Fr. 75.60

per Pcs.

excl. VAT plus handling fee

If the order value is less than CHF 100.00, a handling fee of CHF 8.90 will be charged.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Depth [mm]: 300 mm

300 mm 400 mm 500 mm 600 mm

show all variants

Add to basket

Delivery time: within 4 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Frame for shelving system R 3000, W 600 x D 300 H 1960 mm

Overview of the possible item variants. For more information, click on the respective variant.

Depth [mm]

Item			Price
Racking System R3000, Rack, H 1960 x 300 mm Item number: 125240			Fr. 75.60 Amount + - Added times
Racking System R3000, Rack, H 1960 x 400 mm Item number: 125241			Fr. 78.00 Amount + - Added times
Racking System R3000, Rack, H 1960 x 500 mm Item number: 125242			Fr. 79.55 Amount + - Added times
Racking system R3000, Rack, H 1960 x 600 mm Item number: 125243			Fr. 83.50 Amount + - Added times
No results

Accessories

Item			Price
Cover plate, black Item number: 30510			only Fr. 1.05 from Fr. 1.05 per Pcs. Go to product
Label holder, for shelf system R 3000/4000, L 85 mm, 50 pieces Item number: 124640			only Fr. 56.00 from Fr. 56.00 per OU Go to product
Labels, for shelf system R 3000/4000, L 85 mm, 100 pieces Item number: 124642			only Fr. 14.25 from Fr. 14.25 per OU Go to product
Sliding safety edge for R 3000/4000 shelving system, p. shelf width 995 mm Item number: 31312			only Fr. 5.15 from Fr. 5.15 per Pcs. Go to product
Shelf for system R 3000/4000, W 995 x D 300 mm, load capacity 100 kg, lacquered Item number: 30481			instead of Fr. 60.00 only Fr. 48.00 from Fr. 48.00 per Pcs. Go to product
Shelf for system R 3000/4000, W 1282 x D 400 mm, 150 kg load capacity, painted Item number: 30460			only Fr. 65.55 from Fr. 65.55 per Pcs. Go to product
