R 3000 shelving system, frame, W 60 x D 300 x H 1960 mm

Item number: 125240

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

In the workshop or warehouse, nothing beats a flexible sheet steel shelving unit that can hold seemingly endless amounts of things and can also store heavy loads effortlessly. Like the R 3000 shelving system, which includes this sturdy frame.

The rolling profile of the frame for the R 3000 shelving system is made of high-quality, sendzimir galvanized sheet steel and is therefore perfectly protected against corrosion. The frame is supplied fully assembled and comes to you with bulkhead stays and a metal base plate, but without an end cap.

As the frame for the R 3000 shelving system is designed as an add-on upright, the front section is conically profiled. This means that the hanging pockets grip positively and without play when using longitudinal bracing. The uprights have cams on both sides for attaching the intermediate shelves in a grid of 53:53 mm.

Important details:

Upright frame for shelving system R 3000
Rolling profile, 60 x 31 mm
Made of high-quality, sendzimir galvanized sheet steel
Incl. bulkhead stays and metal base plate, without end cap
Designed as an add-on stand
Front part conically profiled
Fully assembled
GS-tested

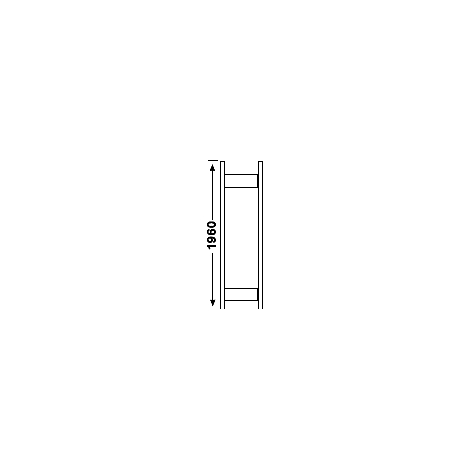

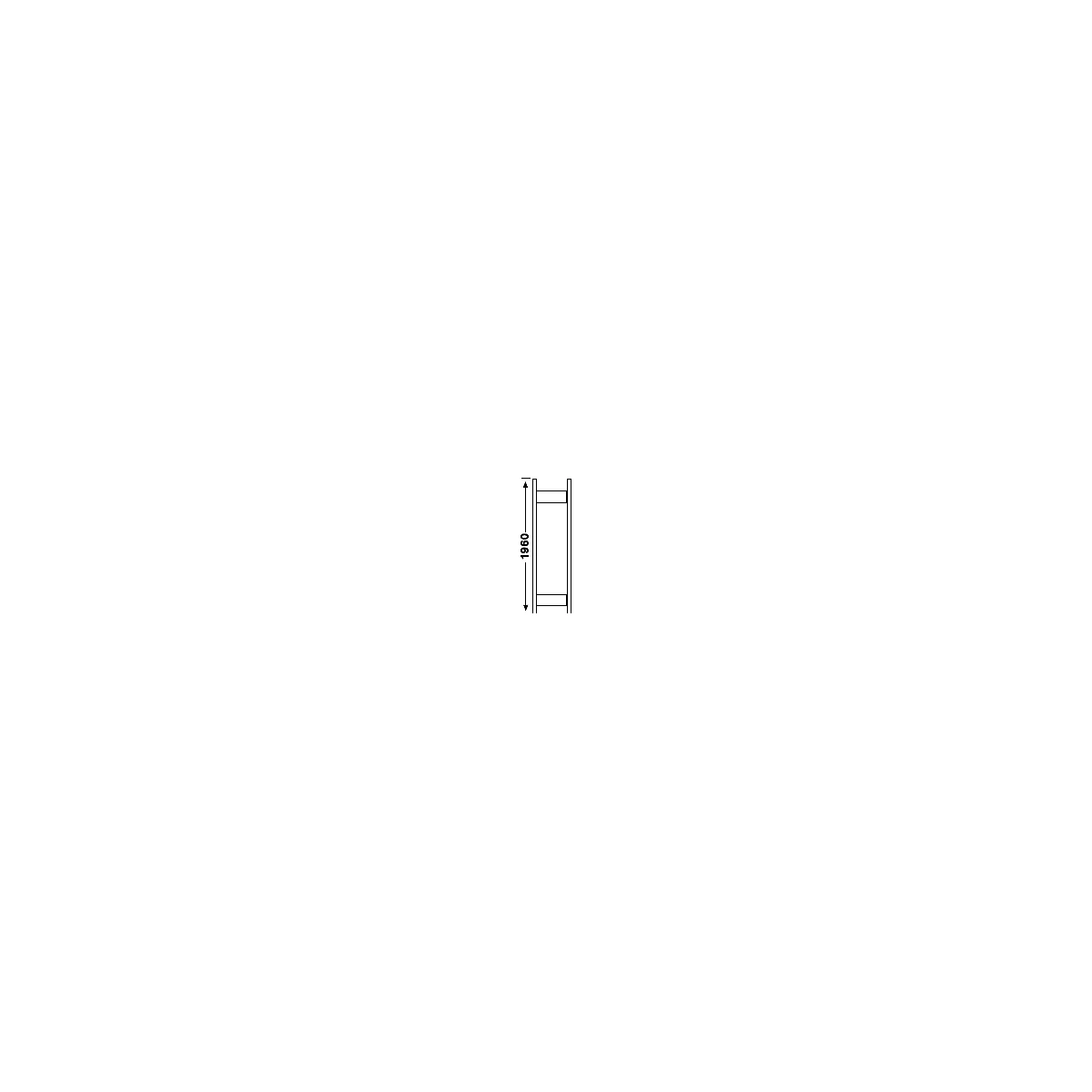

Dimensions: W 60 x D 300, 400, 500, 600 or 800 x H 1960 mm

Show moreShow less

Technical data

General features
Color silver
Colour of the shelf frame silver
Depth [mm] 300
GS-approved Yes
Height [mm] 1960
Material Sheet steel
Shelf type Storage rack
Shelving system R 3000
Surface galvanised
Dimensions
Dimensions H x W (mm) 1960 x 60

Download

ProductSafety_10152741.pdf

Schäfer Shop Quality and Service

only Fr. 75.60

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Depth [mm]: 300 mm

300 mm 400 mm 500 mm 600 mm 800 mm

show all variants

Add to basket

Delivery time: within 4 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Frame for shelving system R 3000, W 60 x H 1960 mm

Overview of the possible item variants. For more information, click on the respective variant.

Depth [mm]

Item			Price
R 3000 shelving system, frame, W 60 x D 300 x H 1960 mm Item number: 125240			Fr. 75.60 Amount + - Added times
R 3000 shelving system, frame, W 60 x D 400 x H 1960 mm Item number: 125241			Fr. 78.00 Amount + - Added times
R 3000 shelving system, frame, W 60 x D 500 x H 1960 mm Item number: 125242			Fr. 79.55 Amount + - Added times
R 3000 shelving system, frame, W 60 x D 600 x H 1960 mm Item number: 125243			Fr. 83.50 Amount + - Added times
R 3000 shelving system, frame, W 60 x D 800 x H 1960 mm Item number: 125611			Fr. 145.00 Amount + - Added times
