Product Safety Information

Electric pump CEMO Cematic 56, 230 V, 56 l/min, self-priming, jet valve, 4 m filling hose

General information

EU authorized representative E-mail address

kontakt@cemo-group.com

EU authorized representative Name

CEMO GmbH

EU authorized representative Place

Weinstadt

EU authorized representative Postal code

71384

EU authorized representative Street & house number

In den Backenländern 5

EU Plenipotentiary Country

Deutschland

Product safety instructions

Do not use the electric pump in potentially explosive atmospheres, near sources of ignition or naked flames. Take care when handling flammable liquids (biodiesel and diesel).;Pump performance may be impaired if the suction hose is not positioned correctly. Ensure that hoses and valves are connected correctly.;Regularly check seals and hoses for leaks. Take precautions against the risk of suffocation due to pinched hoses.;Use the electric pump in accordance with the application guidelines and only with suitable media such as biodiesel and diesel. Take care when using other media.;Disconnect the power supply before carrying out maintenance work and ensure that the pump is operated on a stable surface. Wear protective clothing to avoid skin contact with fuels.;Do not operate the product at extreme temperatures, under water or near heat sources. Protect from frost.;Pump should be operated with the intended voltage (12V). Observe the instructions for 230V use.;Improper use may result in leaks or damage. Read the operating instructions carefully and follow them.;Do not leave the pump unattended during operation. Do not bring the electric pump into contact with food.

Article numbers

139859 139860 139861 139862 139863 139864 139865

Electric pump CEMO Cematic 56, 230 V, 56 l/min, self-priming, jet valve, 4 m filling hose

Name: Electric pump CEMO Cematic 56, 230 V, 56 l/min, self-priming, jet valve, 4 m filling hose
Brand: Cemo
SKU: 7467985
Price: 432.0 CHF
Availability: InStock

Item number: 139859

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

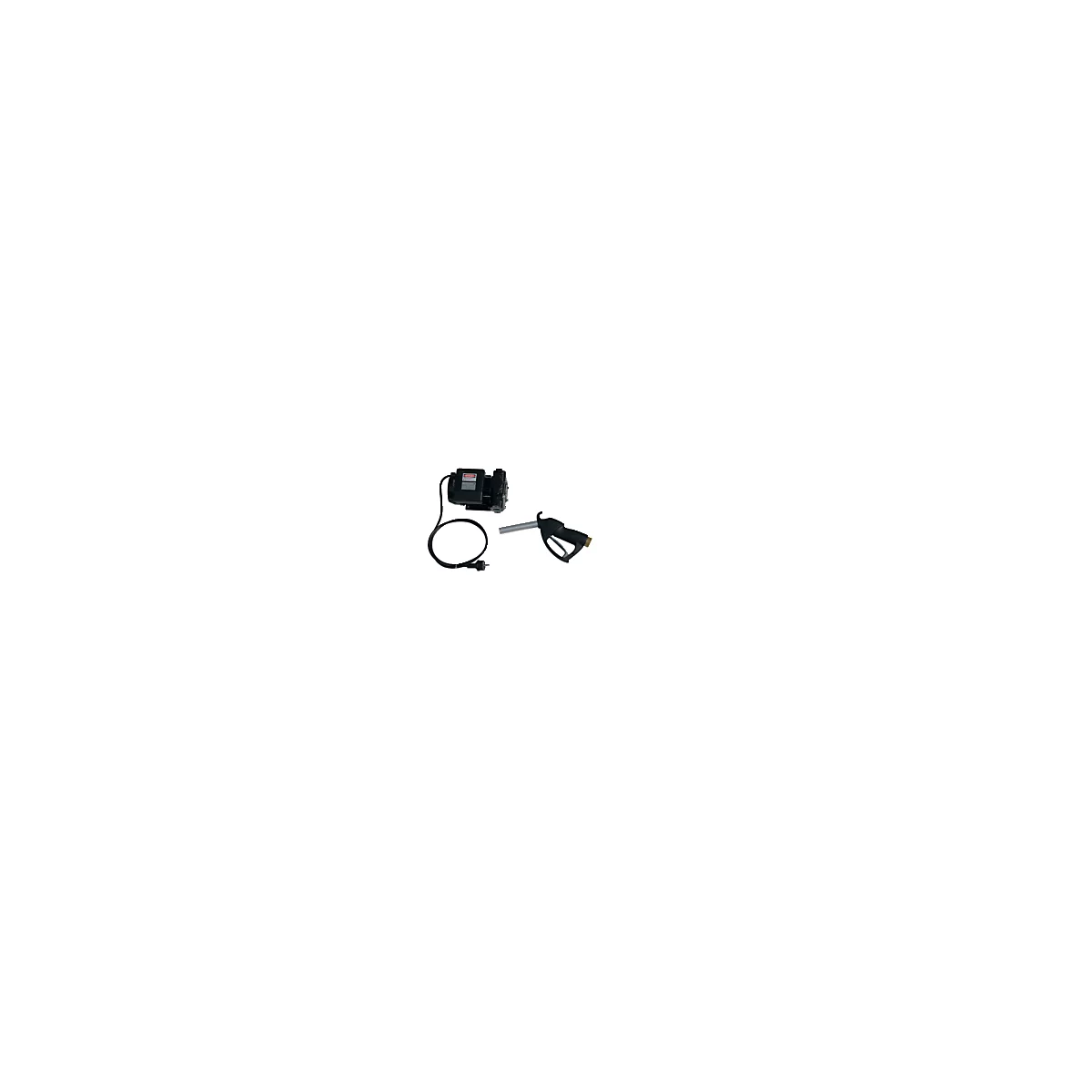

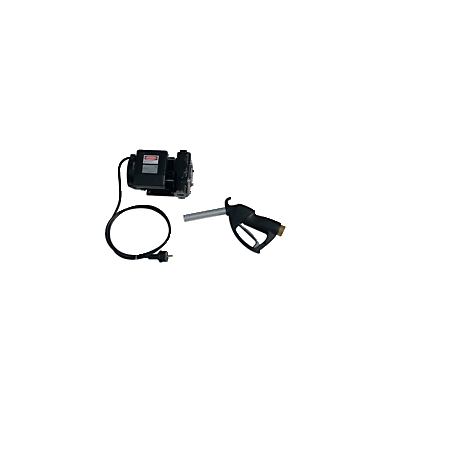

The Cematic 56 electric pump from Cemo with 4 meter hose delivers 56 liters per minute. This product is suitable for use with biodiesel and diesel.

The electric pump is equipped with:

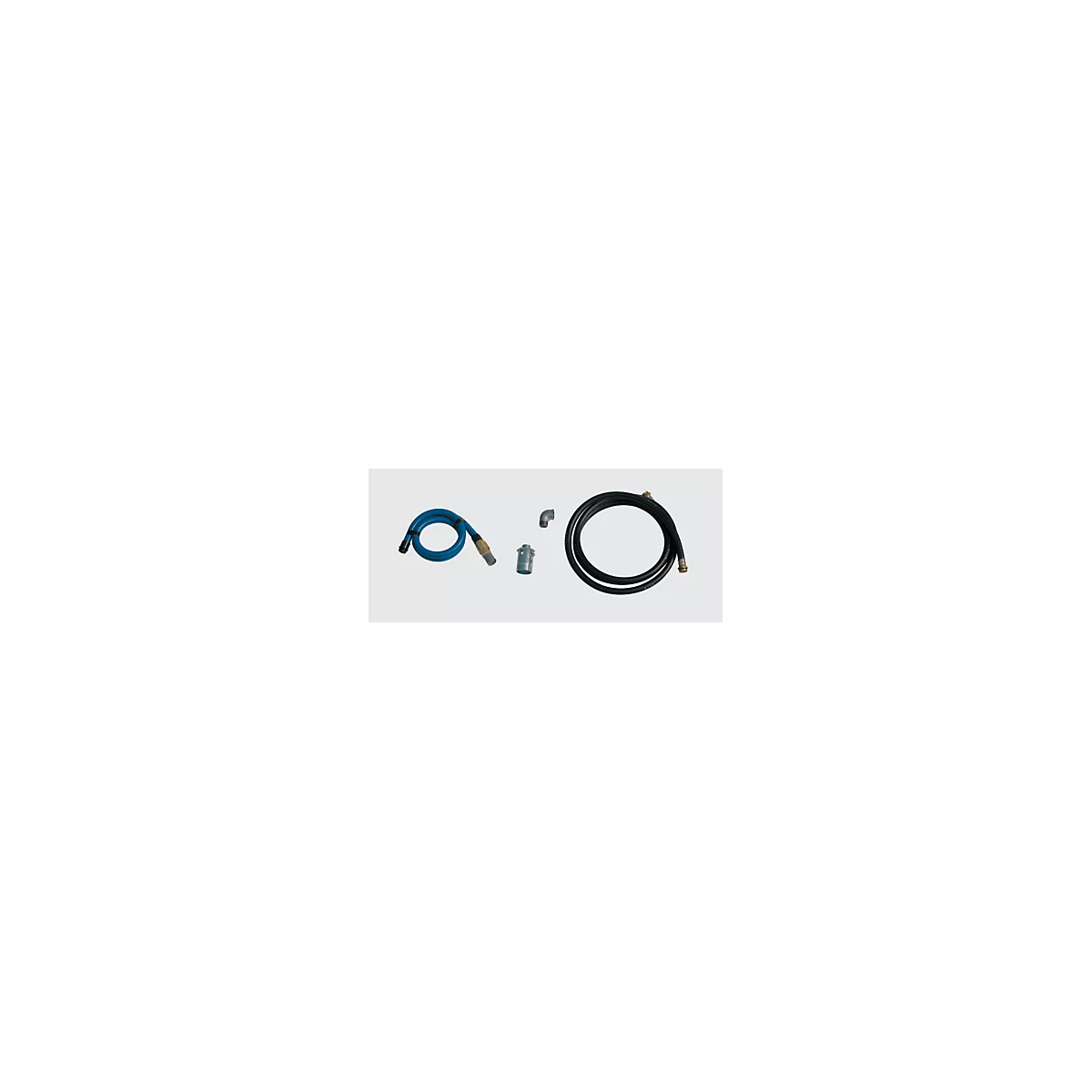

Self-priming 230 V vane pump, approx. 56 l/min, siphon protection, nozzle valve, 4 m filling hose, 1.6 m suction hose with foot valve, 2' barrel screw connection.

Show moreShow less

Technical data

General features
ATEX-compliant No
Flow rate (l/min) 56
Food contact No
Hazardous substance type Biodiesel; Diesel
Hose connection [inch] 1
Hose length (m) 4
Immersion depth [mm] 160
Line voltage (V) 230
Max. working pressure 2
Power (W) 370
Protection class [IP] 55
Pump type self-priming vane pump
Scope of delivery Electric pump, dispensing valve, filling hose, suction hose, foot valve, barrel screw connection
Thread 2"
Version Cematic 56, 230V, 56 l/min

Schäfer Shop Quality and Service

only Fr. 432.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Version: Cematic 56, 230V, 56 l/min

Cematic 56, 230V, 56 l/min Cematic 56 AZ, 230V, 56 l/min Cematic 56 K33 AZ, 230V, 56 l/min Cematic 3000/12, 12V, 40 l/min Cematic 3000/12 K33 AZ, 12V, 40 l/min Cematic 3000/24, 24V, 40 l/min Cematic 3000/24 AZ, 24V, 40 l/min

show all variants

Add to basket

Delivery time: within 3 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Electric pump CEMO Cematic, self-priming, various versions. Versions

Overview of the possible item variants. For more information, click on the respective variant.

Version

Item			Price
Electric pump CEMO Cematic 56, 230 V, 56 l/min, self-priming, jet valve, 4 m filling hose Item number: 139859			Fr. 432.00 Amount + - Added times

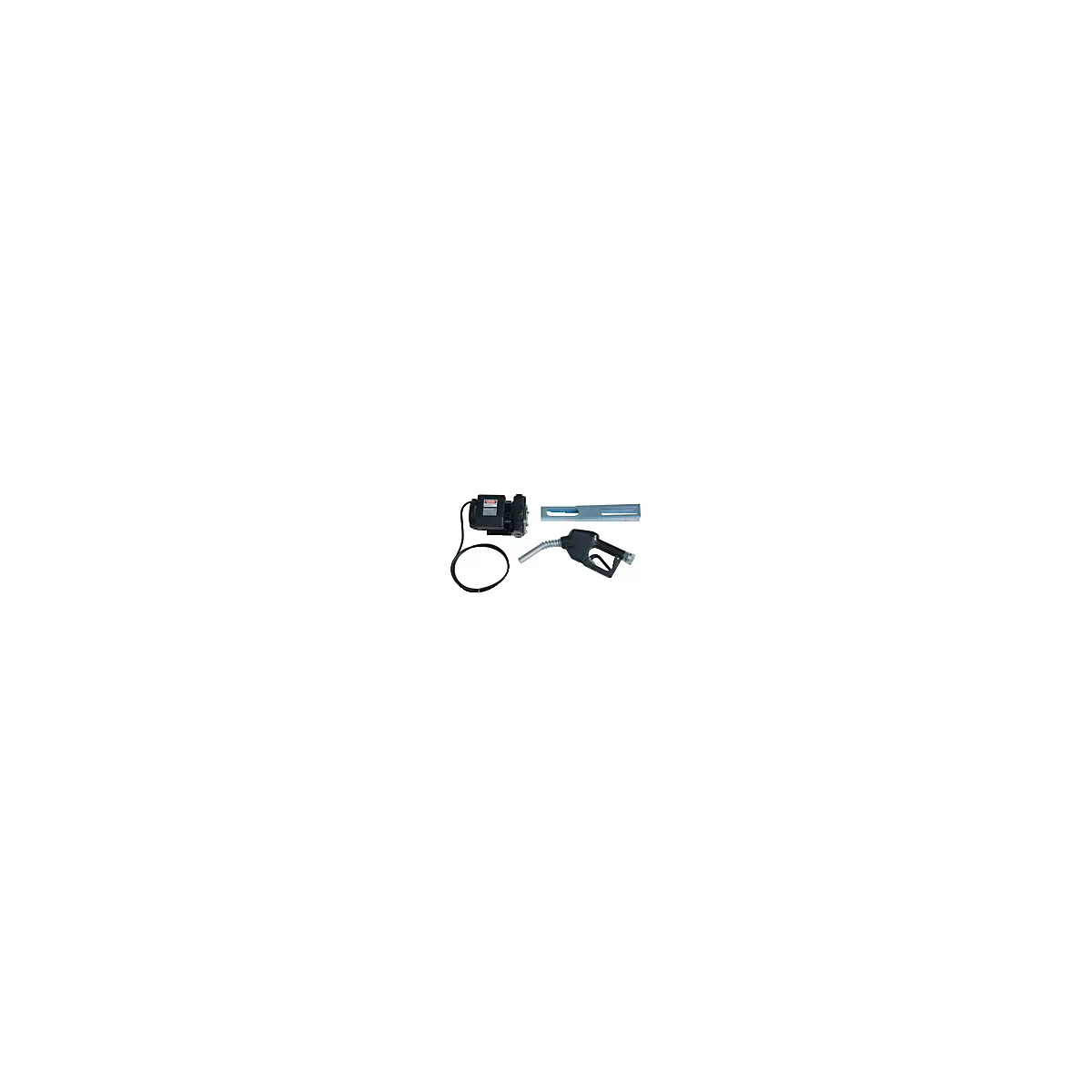

Electric pump CEMO Cematic 56 AZ, 230 V, 56 l/min, self-priming, nozzle gun with bracket, filling hose 4 m Item number: 139860			Fr. 633.00 Amount + - Added times

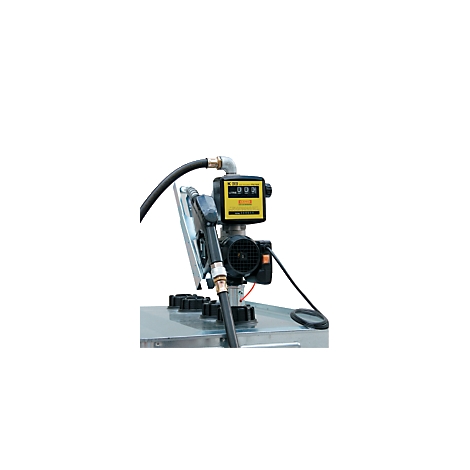

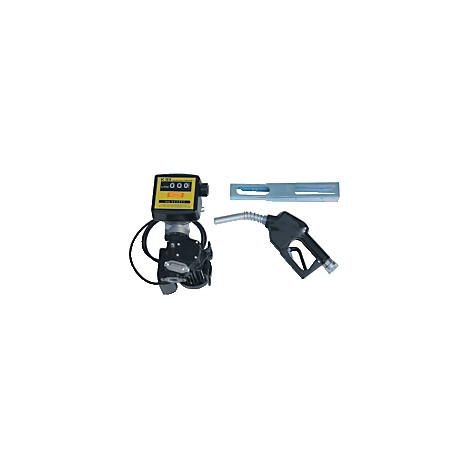

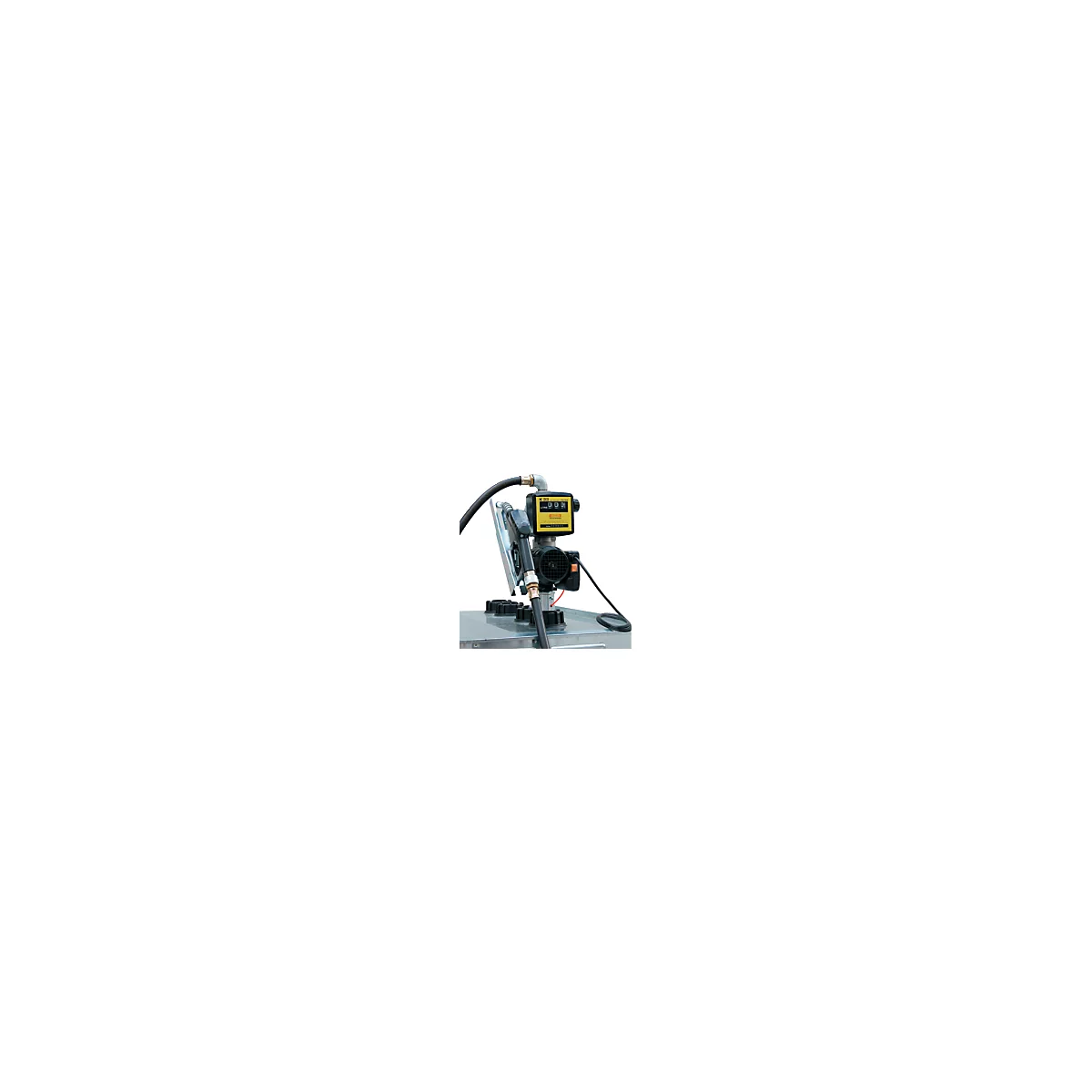

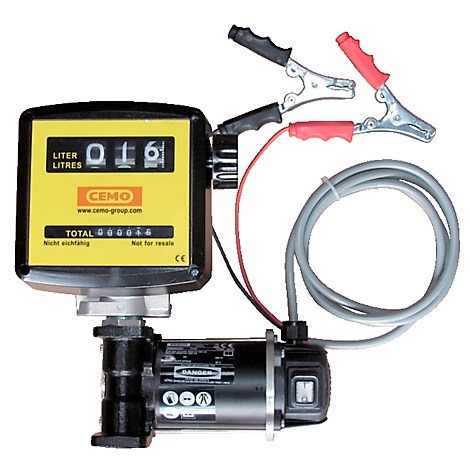

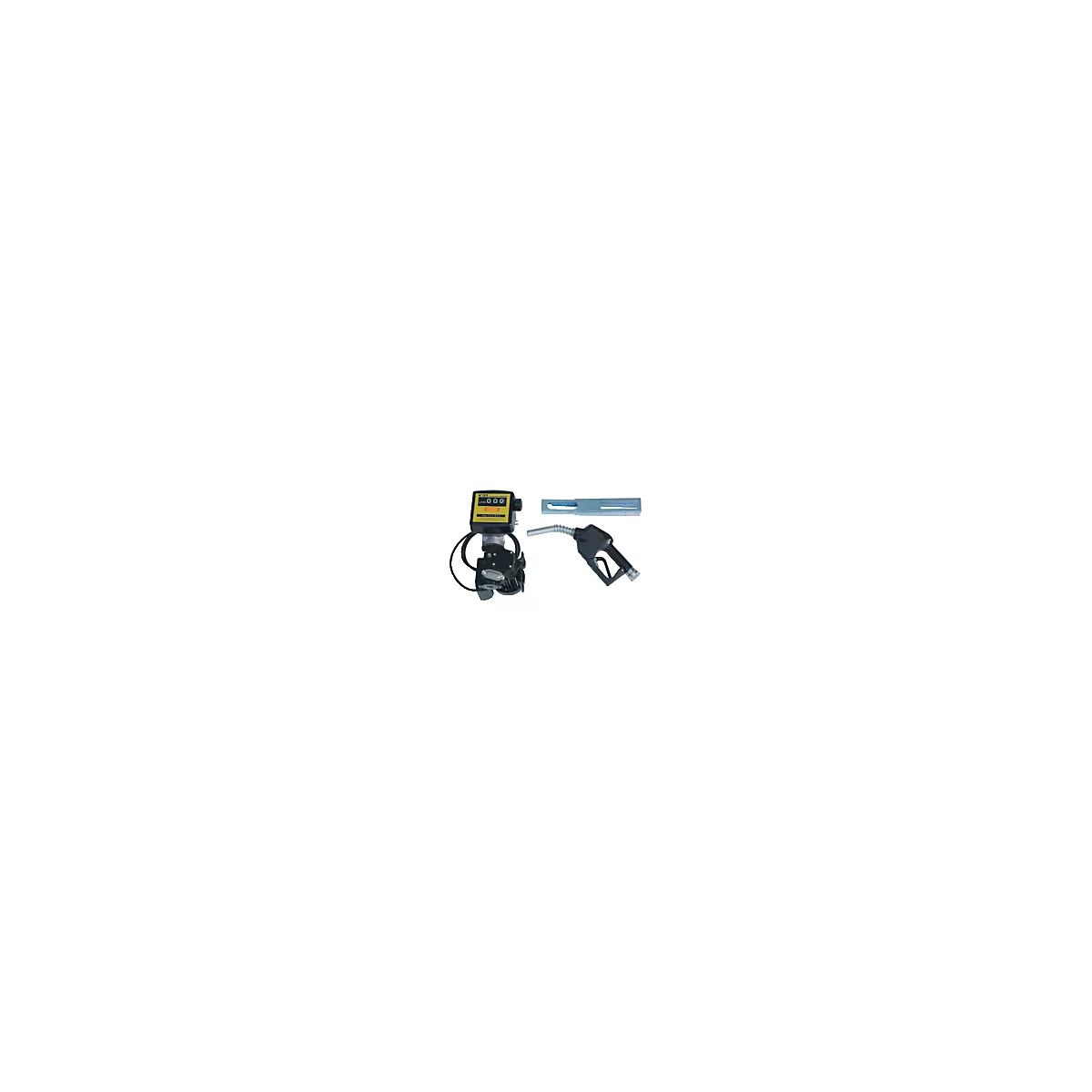

Electric pump CEMO Cematic 56 K33 AZ, 230 V, 56 l/min, self-priming, counter, nozzle gun, filling hose 4 m Item number: 139861			Fr. 753.00 Amount + - Added times

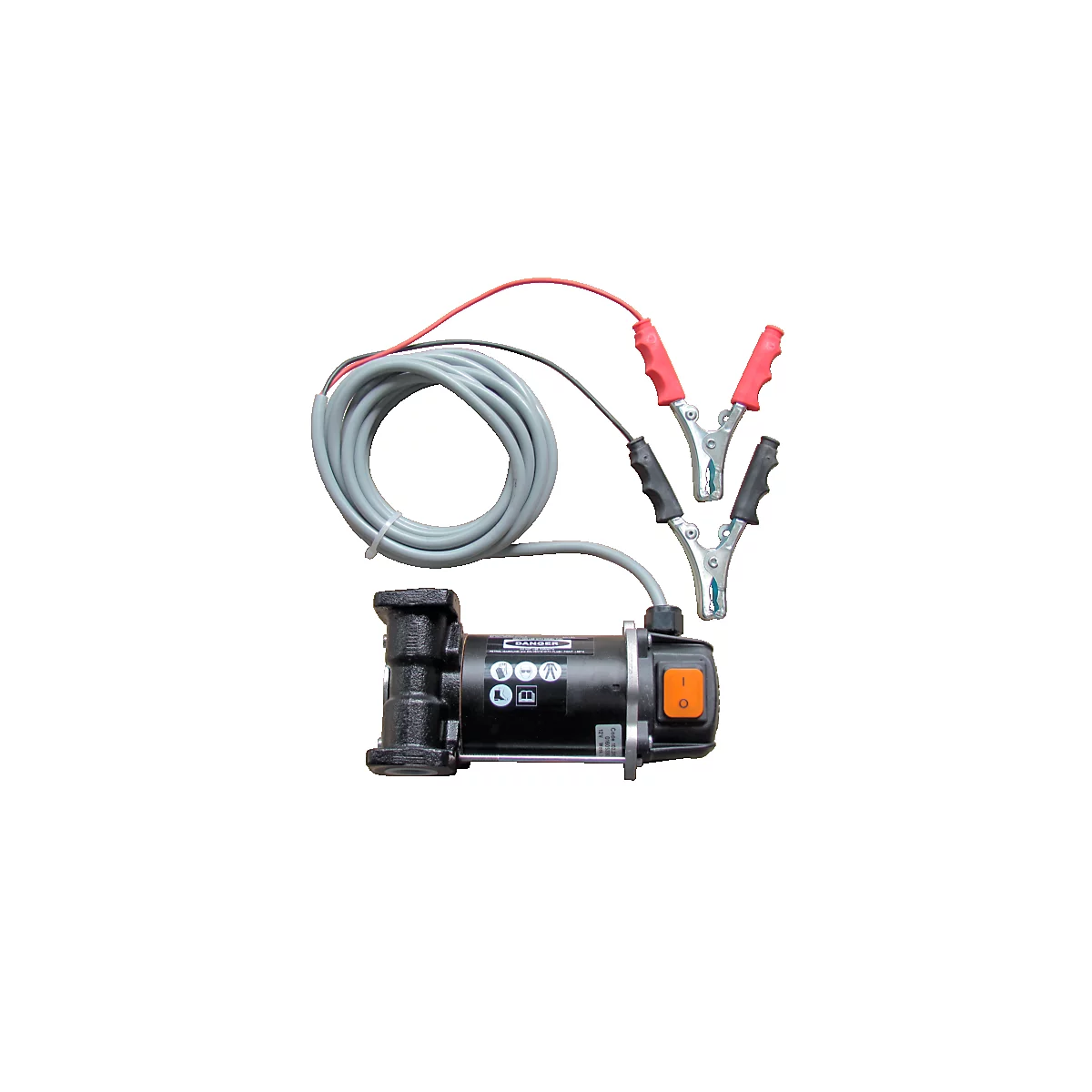

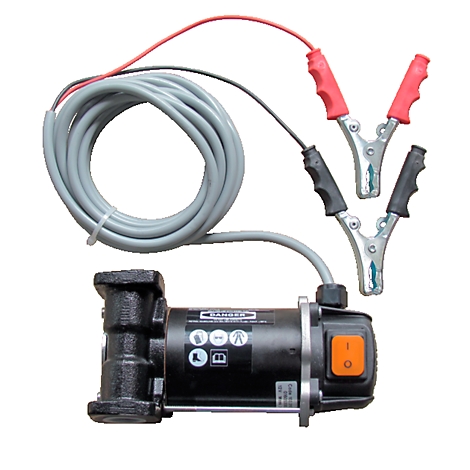

Electric pump CEMO Cematic 3000/12, 12 V, 40 l/min, self-priming, jet valve, 4 m filling hose Item number: 139862			Fr. 417.00 Amount + - Added times

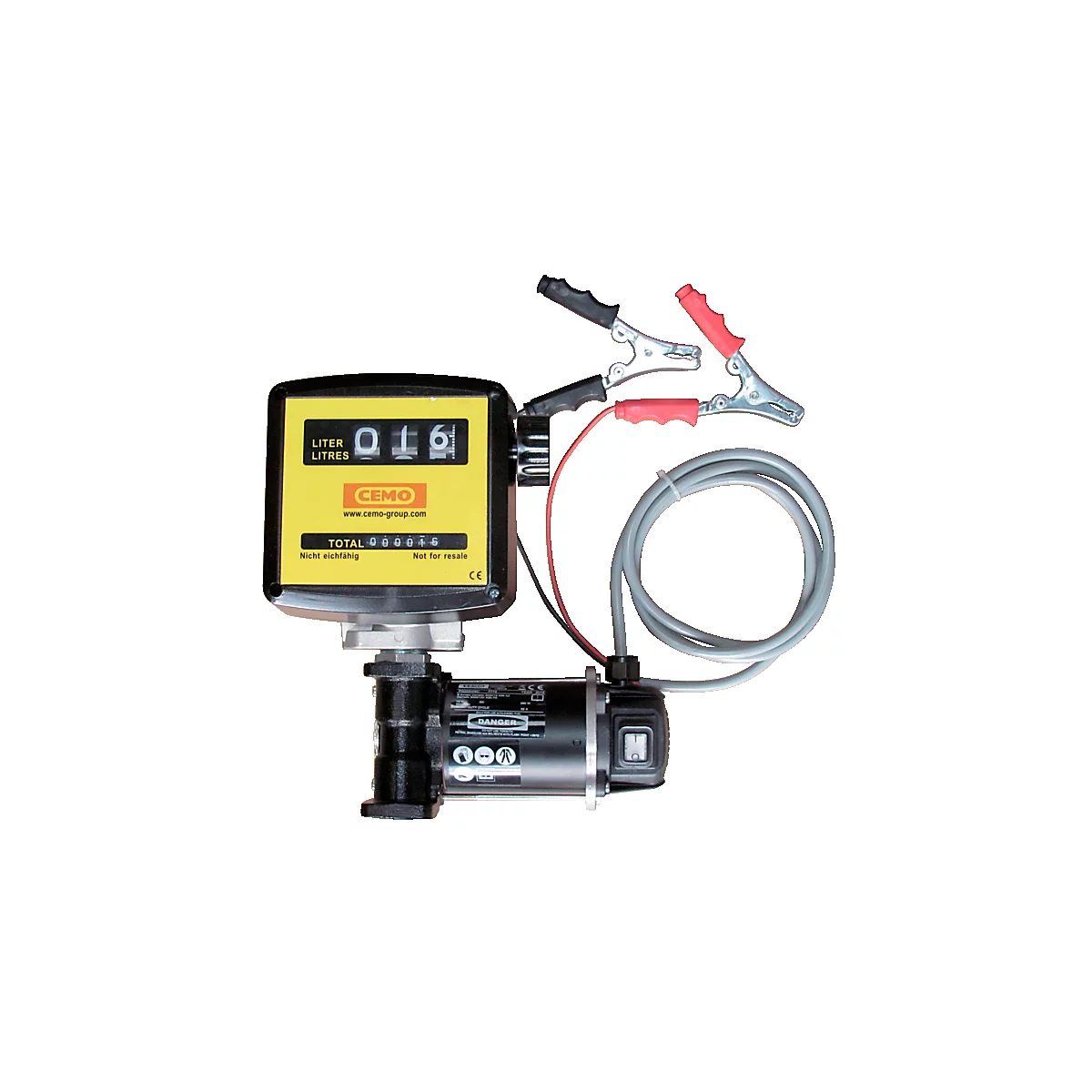

Electric pump CEMO Cematic 3000/12 K33 AZ, 12 V, 40 l/min, self-priming, counter, nozzle gun, filling hose 4 m Item number: 139863			Fr. 677.00 Amount + - Added times
Electric pump CEMO Cematic 3000/24, 24 V, 40 l/min, self-priming, jet valve, 4 m filling hose Item number: 139864			Fr. 567.00 Amount + - Added times
Electric pump CEMO Cematic 3000/24 AZ, 24 V, 40 l/min, self-priming, nozzle gun with bracket, filling hose 4 m Item number: 139865			Fr. 683.00 Amount + - Added times
