Product Safety Information

Electric pump CEMO Cematic 3000/12, 12 V, 280 W, 45 l/min, self-priming, IP 55

General information

EU authorized representative E-mail address

kontakt@cemo-group.com

EU authorized representative Name

CEMO GmbH

EU authorized representative Place

Weinstadt

EU authorized representative Postal code

71384

EU authorized representative Street & house number

In den Backenländern 5

EU Plenipotentiary Country

Deutschland

Product safety instructions

Do not use the pump for flammable liquids other than biodiesel or diesel.;Observe the maximum operating time of 30 minutes to avoid overheating.;Protection class IP55: The pump is protected against dust and splash water, but is not suitable for permanent submersion.;Ensure that the pump installation is safe and stable to prevent accidents.;The product is not suitable for use in extreme cold or heat.;Overpressurisation can lead to damage.;The appliance must not be operated in a damp environment without suitable protection.;The enclosed instructions for handling and installation must be read carefully.;The product may only be installed and maintained by qualified personnel.

Article numbers

139875 139876

Electric pump CEMO Cematic 3000/12, 12 V, 280 W, 45 l/min, self-priming, IP 55

Name: Electric pump CEMO Cematic 3000/12, 12 V, 280 W, 45 l/min, self-priming, IP 55
Brand: Cemo
SKU: 7703101
Price: 288.0 CHF
Availability: InStock

Item number: 139875

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

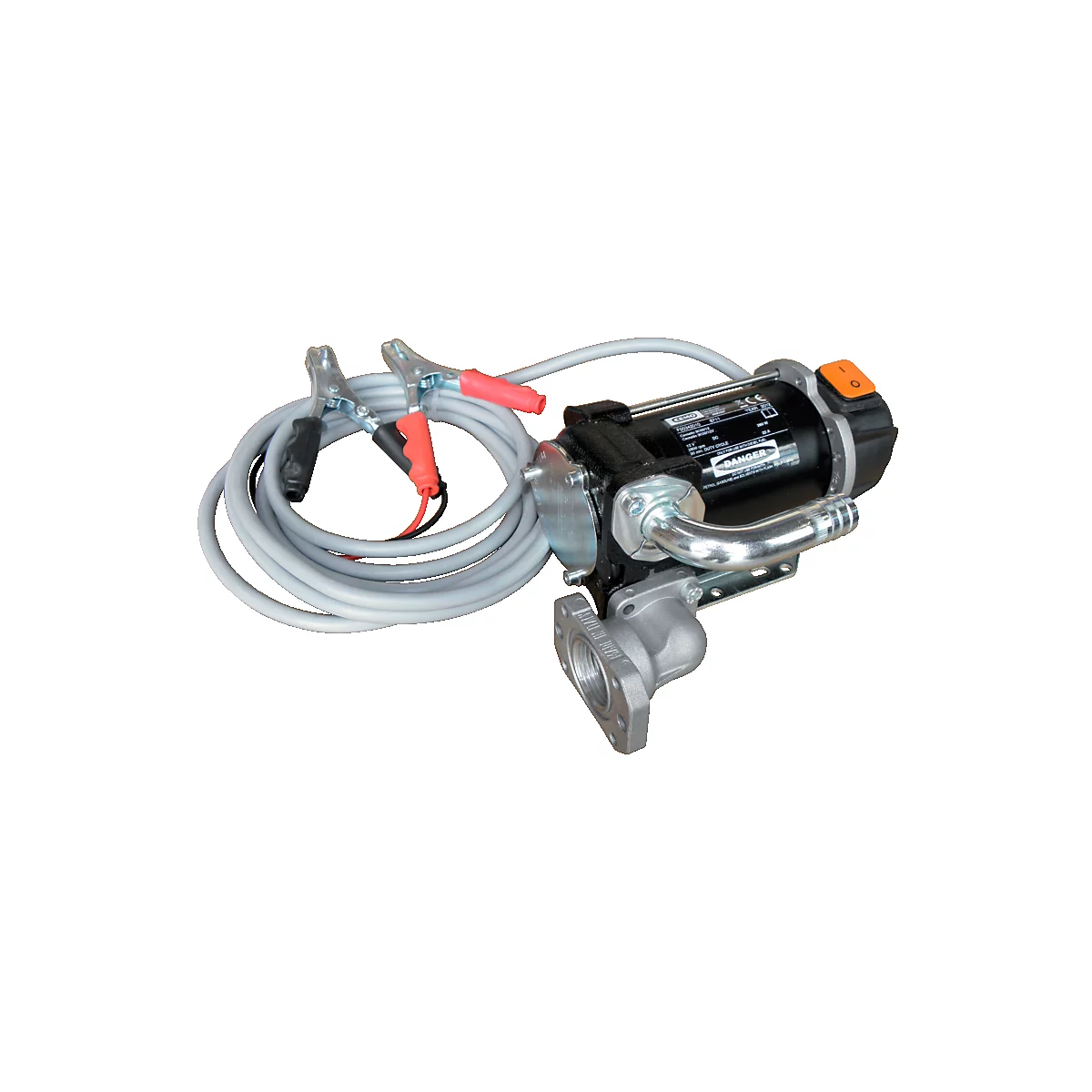

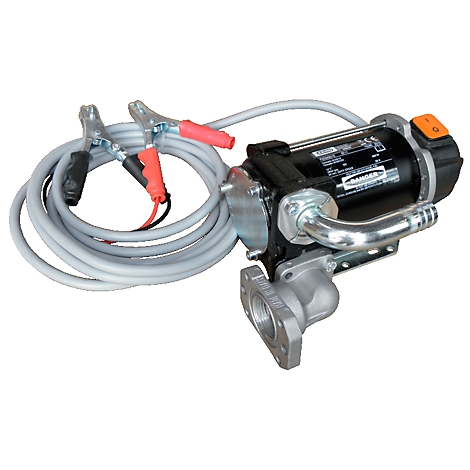

The Cematic 3000/12 electric pump from Cemo delivers 45 litres per minute. Diesel and biodiesel can be used safely and in accordance with regulations.

The equipment of the electric pump includes:

Self-priming 12 V vane pump, 280 W, approx. 45 l/min, DC brush motor, robust cast steel housing, max. 30 min working cycle, overpressure bypass valve, suction side nozzle DN 19.

Show moreShow less

Technical data

General features
ATEX-compliant No
Flow rate (l/min) 45
Food contact No
Hazardous substance type Biodiesel; Diesel
Hose connection [inch] 1
Line voltage (V) 12
Max. working pressure 1.5
Power (W) 280
Protection class [IP] 55
Pump type self-priming vane pump
Scope of delivery Electric pump
Thread 1"

Schäfer Shop Quality and Service

only Fr. 288.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Line voltage (V): 12 V

12 V 24 V

show all variants

Add to basket

Delivery time: within 3 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Electric pump CEMO Cematic, 12/24V, 280 W, 45 l/min, self-priming, IP 55, different versions Versions

Overview of the possible item variants. For more information, click on the respective variant.

Line voltage (V)

Item			Price
Electric pump CEMO Cematic 3000/12, 12 V, 280 W, 45 l/min, self-priming, IP 55 Item number: 139875			Fr. 288.00 Amount + - Added times
Electric pump CEMO Cematic 3000/24, 24 V, 280 W, 45 l/min, self-priming, IP 55 Item number: 139876			Fr. 275.00 Amount + - Added times
