Product Safety Information

Diesel tank system CEMO with UNI tank, TW coupling, 230 V electric pump, 50 l/min, W 1660 x D 770 x H 1590 mm, 1 tank à 1000 l

General information

EU authorized representative E-mail address

kontakt@cemo-group.com

EU authorized representative Name

CEMO GmbH

EU authorized representative Place

Weinstadt

EU authorized representative Postal code

71384

EU authorized representative Street & house number

In den Backenländern 5

EU Plenipotentiary Country

Deutschland

Product safety instructions

Fire hazard due to improper handling of diesel fuels.;Environmental hazard due to inadequate protection against leakage or spillage of fuel.;Risk of electric shock if the electric pump is used incorrectly. Ensure that the electric pump connection is properly connected.;Safety warning: Only allow qualified personnel to operate the appliance.;Read all safety and operating instructions before use.;Caution: Use and storage of hazardous substances such as diesel and rapeseed oil methyl ester.;Only suitable for indoor use, especially in water protection areas.;A visual leakage indicator is provided; act immediately in the event of a leak.;Risk of fire and explosion if flammable substances are used improperly. Keep flammable substances away from heat sources.;Do not damage or kink the hose to avoid leaks.;Wear personal protective equipment (e.g. gloves and safety goggles) when using the product.;Handle the diesel tank system with care to avoid leaks and contamination.;Only use the system in well-ventilated areas, as vapours can be harmful to health.;Do not overfill the system to avoid overflow and backflow.;In the event of a leak or leakage, inform the responsible safety service immediately.

Article numbers

139455 139456 139457

Diesel tank system CEMO with UNI tank, TW coupling, 230 V electric pump, 50 l/min, W 1660 x D 770 x H 1590 mm, 1 tank à 1000 l

Name: Diesel tank system CEMO with UNI tank, TW coupling, 230 V electric pump, 50 l/min, W 1660 x D 770 x H 1590 mm, 1 tank à 1000 l
Brand: Cemo
SKU: 7720687
Price: 3047.0 CHF
Availability: InStock

Item number: 139455

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

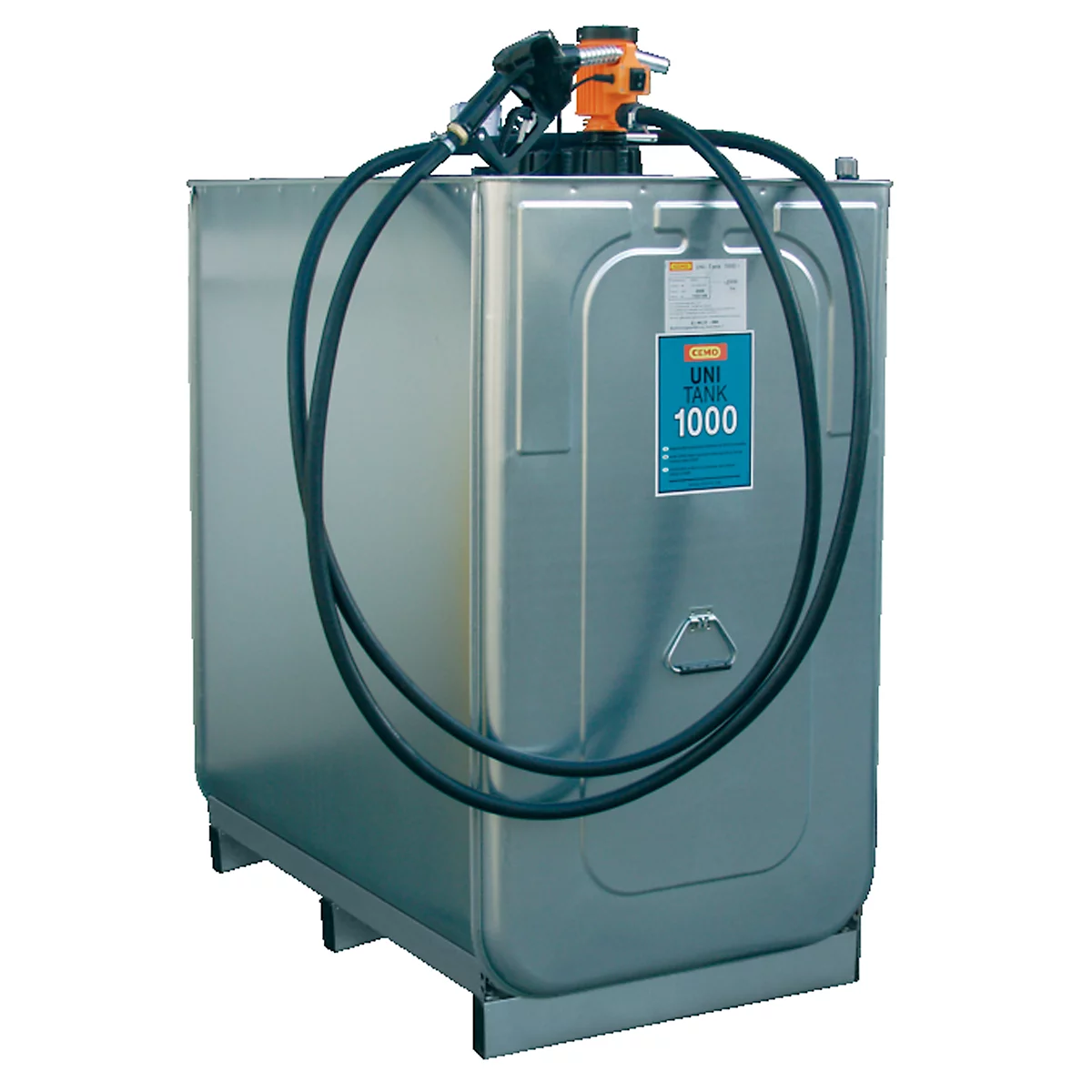

With the product of Cemo with 4 meter hose you get a diesel tank system with UNI tank with a capacity of 1000 l, which delivers 50 liters per minute. Proper handling of hazardous substances begins with the appropriate material. The diesel tank system with UNI tank is made of high-quality polyethylene (PE) and sheet steel.

Possible applications of the diesel tank system with UNI tank from Cemo:

Storage and refuelling of diesel and rapeseed oil methyl ester (RME) indoors, also in water protection areas.

The equipment of the diesel tank system with UNI-Tank includes:

Low overall height
Integrated galvanized sheet steel collecting tray
Foot pallet
optical leakage indicator
Filling connection with TW-coupling and limit indicator
level indicator
extraction line
vent line
Counter
4m filling hose
automatic nozzle with nozzle holder
self-priming electric pump 230 V
fixed tank truck connection
1 UNI tank

Show moreShow less

Technical data

General features
Approval no. Z-40.21-288
Certificates General technical approval
Container type Tank
Depth [mm] 770
Dispensing nozzle/valve Automatic tap valve
Flow rate (l/min) 50
Handle No
Height [mm] 1590
Hose length (m) 4
Line voltage (V) 230
Material Polyethylene (PE); Sheet steel
Max. Delivery pressure [bar] 2
Mobile No
Pump type Electric pump
Volume (litres) 1000
Weight [kg] 114
Colors
Color galvanised
Dimensions
Width [mm] 1660

Schäfer Shop Quality and Service

only Fr. 3’047.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Volume (litres): 1000 l

1000 l 2000 l 3000 l

show all variants

Add to basket

Delivery time: within 3 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Diesel tank system CEMO with UNI-tank, TW-coupling, 230 V electric pump, 50 l/min

Overview of the possible item variants. For more information, click on the respective variant.

Volume (litres)

Item			Price
Diesel tank system CEMO with UNI tank, TW coupling, 230 V electric pump, 50 l/min, W 1660 x D 770 x H 1590 mm, 1 tank à 1000 l Item number: 139455			Fr. 3’047.00 Amount + - Added times
Diesel tank system CEMO with UNI-tank, TW-coupling, 230 V electric pump, 50 l/min, W 1660 x D 1570 x H 1590 mm, 2 tanks à 1000 l Item number: 139456			Fr. 5’334.00 Amount + - Added times
Diesel tank system CEMO with UNI-tank, TW-coupling, 230 V electric pump, 50 l/min, W 1660 x D 2370 x H 1590 mm, 3 tanks à 1000 l Item number: 139457			Fr. 6’993.00 Amount + - Added times
