Chip container SGU 50, orange (RAL 2000)

Item number: 127584

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

The SGU chip container has been specially designed for collecting and separating liquids from solids. Screwed perforated plate 100 mm above the bottom, hole Ø 3 mm, pitch 6 mm. Drain cock 1", for draining the liquids. Tilting at any height by cable pull from forklift seat. Tray plate with all-round edge profile. Stable base frame with drive-in pockets. Secured against unintentional slipping and tipping. Oil- and watertight.

Capacity in m³: 0,50
Load capacity in kg: 1000
Dead weight in kg: 137
Dimensions (L x W x H) in mm: 1440 x 780 x 680

Advantages for you

Due to the load capacity of 1,000 kg, very heavy quantities of consumables and recyclables can be transported comfortably with this tipping container.

Show moreShow less

Technical data

General features
Anti-tilt Yes
Bulk edge height [mm] 495
Cover No
Execution tub Tray plate with circumferential edge profile

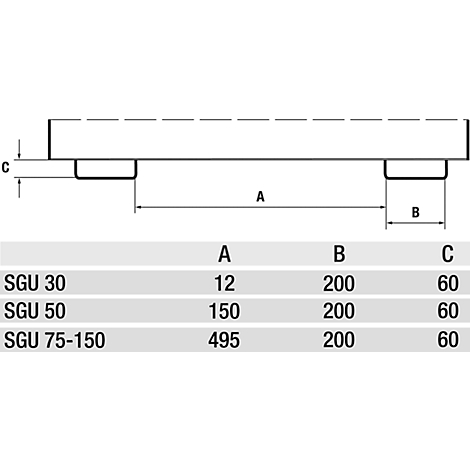

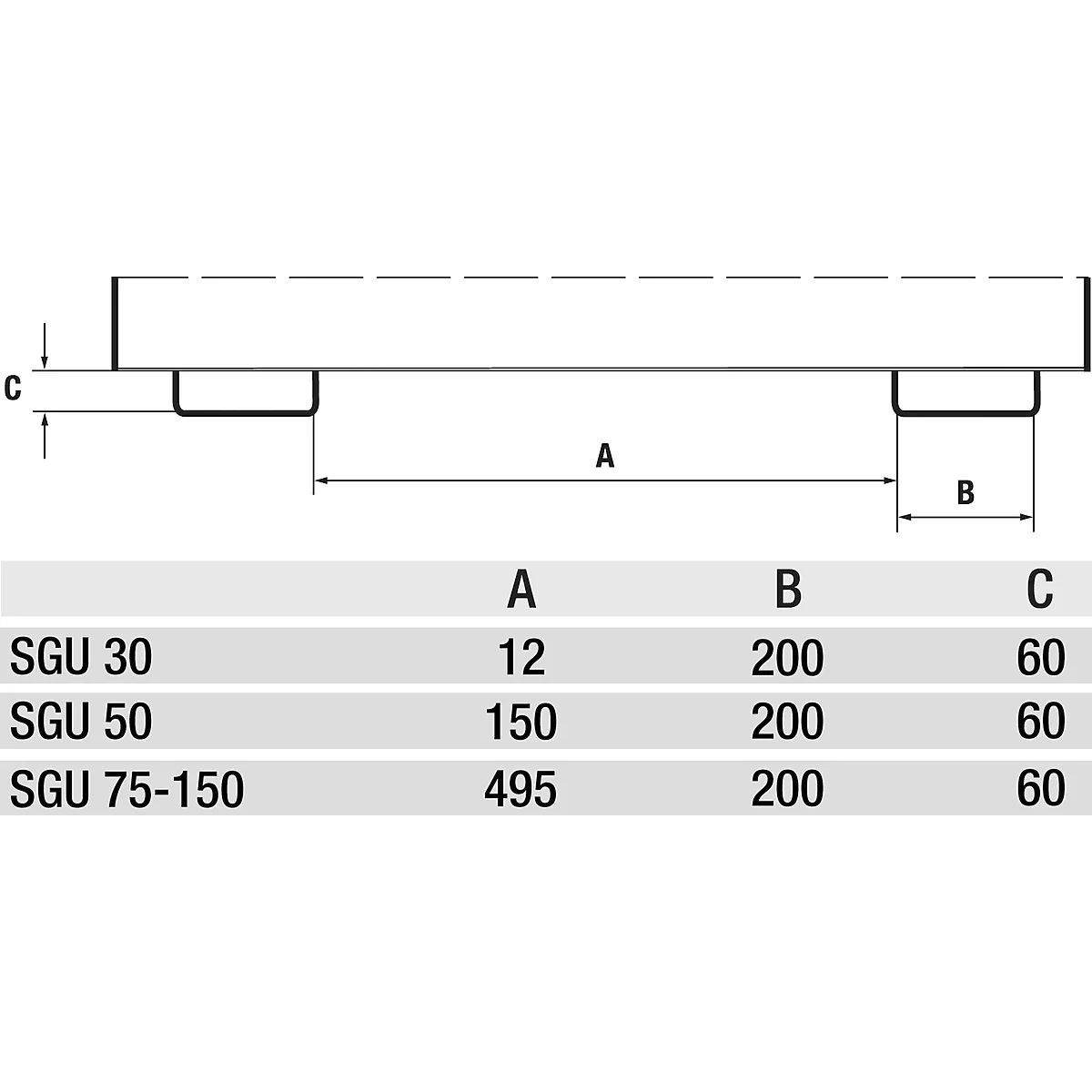

Fork pocket spacing [mm] 150
Height [mm] 680
Internal dimensions fork pocket W x H [mm] 200 x 60
Load capacity [kg] 1000
Material Steel
Permeable wall thickness (mm) 3
Stackable No
Substructure Skids
Surface varnished
Tilting process by wire
Volume (litres) 500
Warranty [years] 3
Weight [kg] 123
Colors
Color yellow-orange RAL 2000
Dimensions
Width [mm] 1440

Download

ProductSafety_10134968.pdf

Schäfer Shop Quality and Service

only Fr. 1’554.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Color: yellow-orange RAL 2000

show all variants

Add to basket

Delivery time: within 3 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Chip container SGU 50

Overview of the possible item variants. For more information, click on the respective variant.

Color

Item			Price
Chip container SGU 50, orange (RAL 2000) Item number: 127584			Fr. 1’554.00 Amount + - Added times

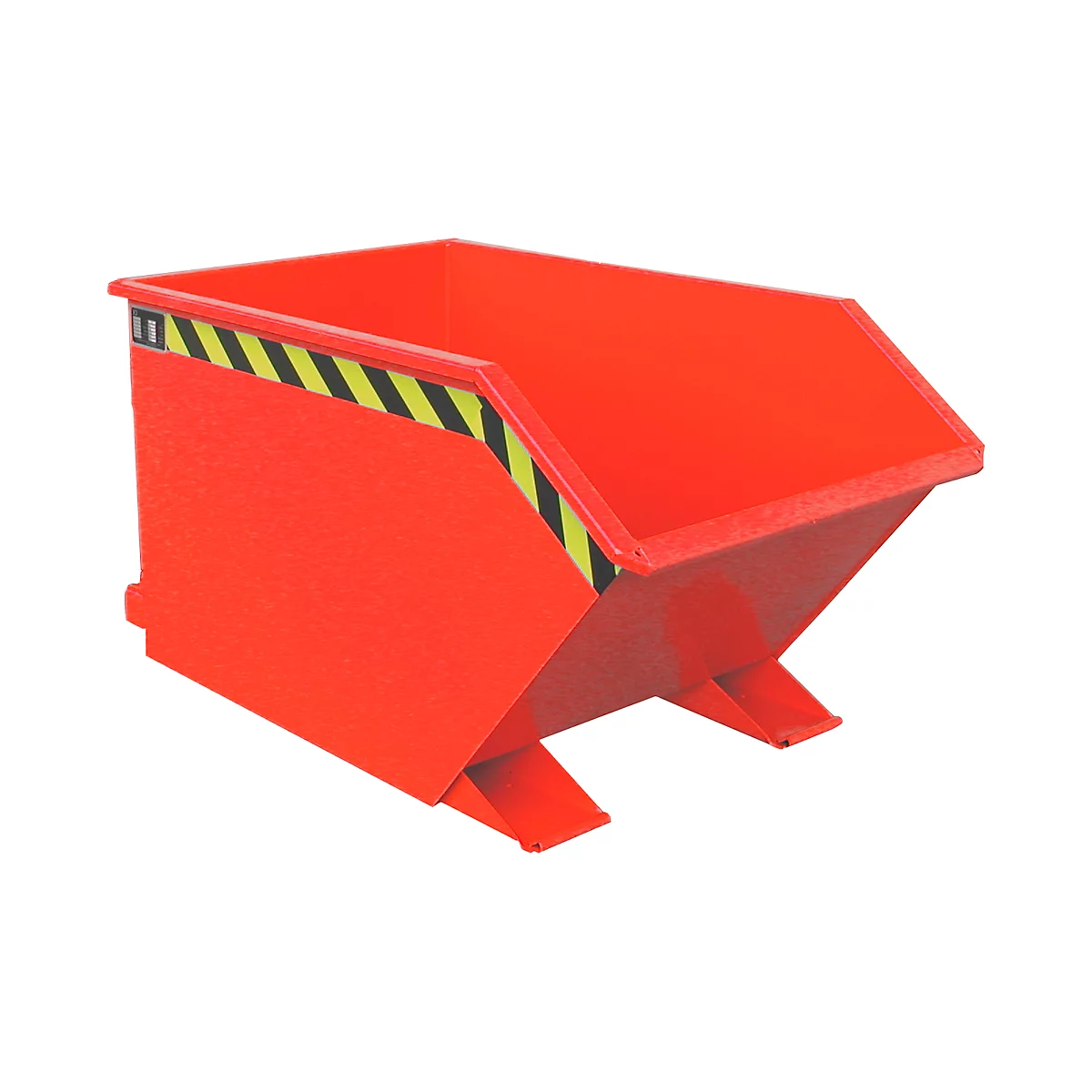

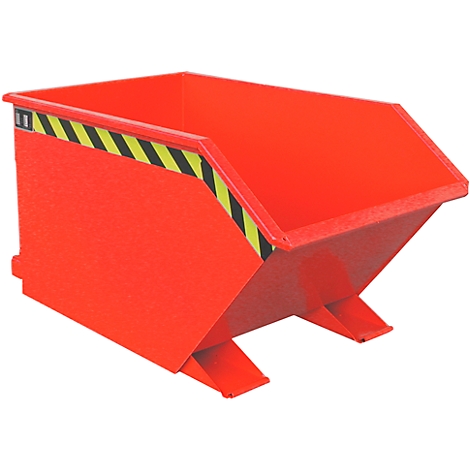

Chip container SGU 50, red (RAL 3000) Item number: 127585			Fr. 1’554.00 Amount + - Added times

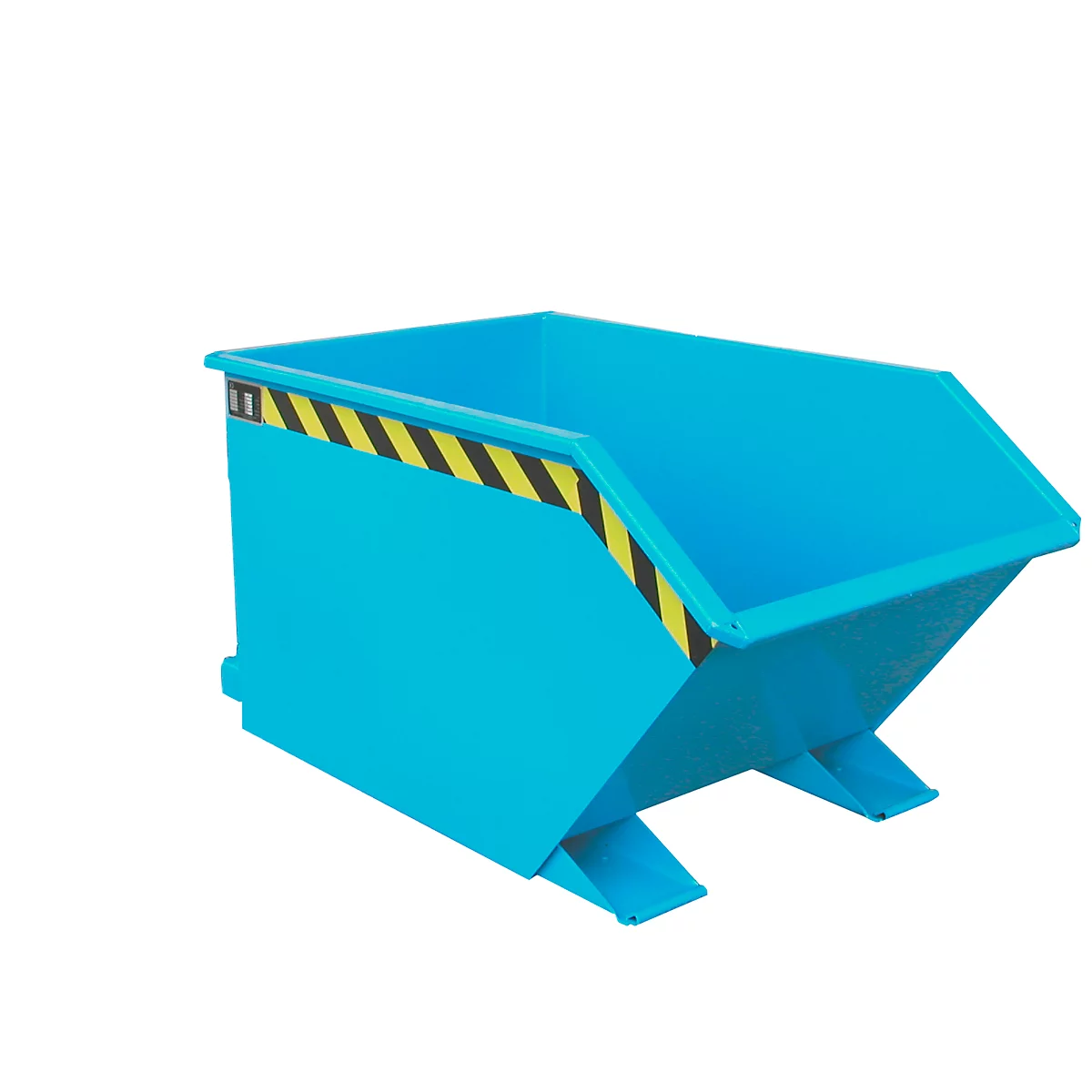

Chip container SGU 50, blue (RAL 5012) Item number: 127586			Fr. 1’554.00 Amount + - Added times

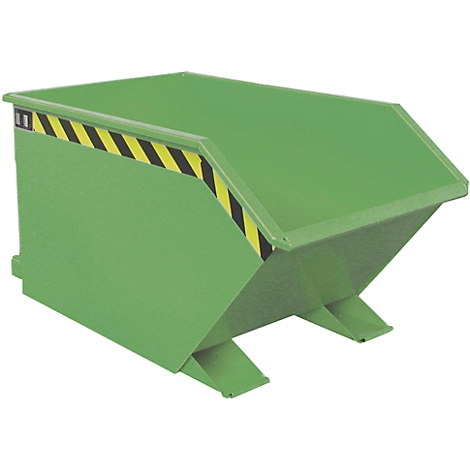

Chip container SGU 50, green (RAL 6011) Item number: 127587			Fr. 1’554.00 Amount + - Added times

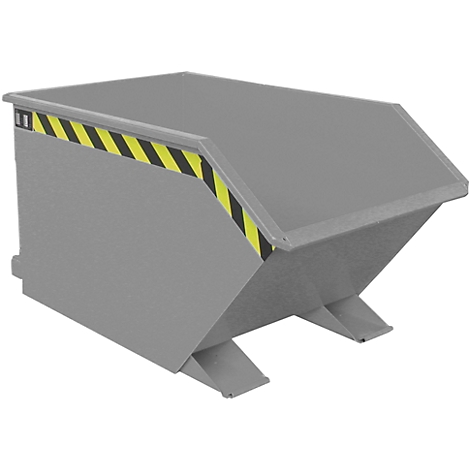

Chip container SGU 50, grey (RAL 7005) Item number: 127588			Fr. 1’554.00 Amount + - Added times

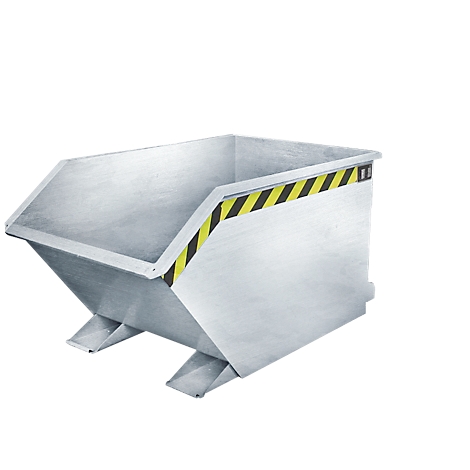

Chip container SGU 50, galvanised Item number: 127590			Fr. 1’890.00 Amount + - Added times
