Cantilever arm bracket KRM, unilateral, height 2000 mm, usable depth 400 mm

Article numbers

123914 123915 123916 123917 123918 123919 123920 123921 123922 123923 123924 123925

Cantilever arm bracket KRM, unilateral, height 2000 mm, usable depth 400 mm

Item number: 123914

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

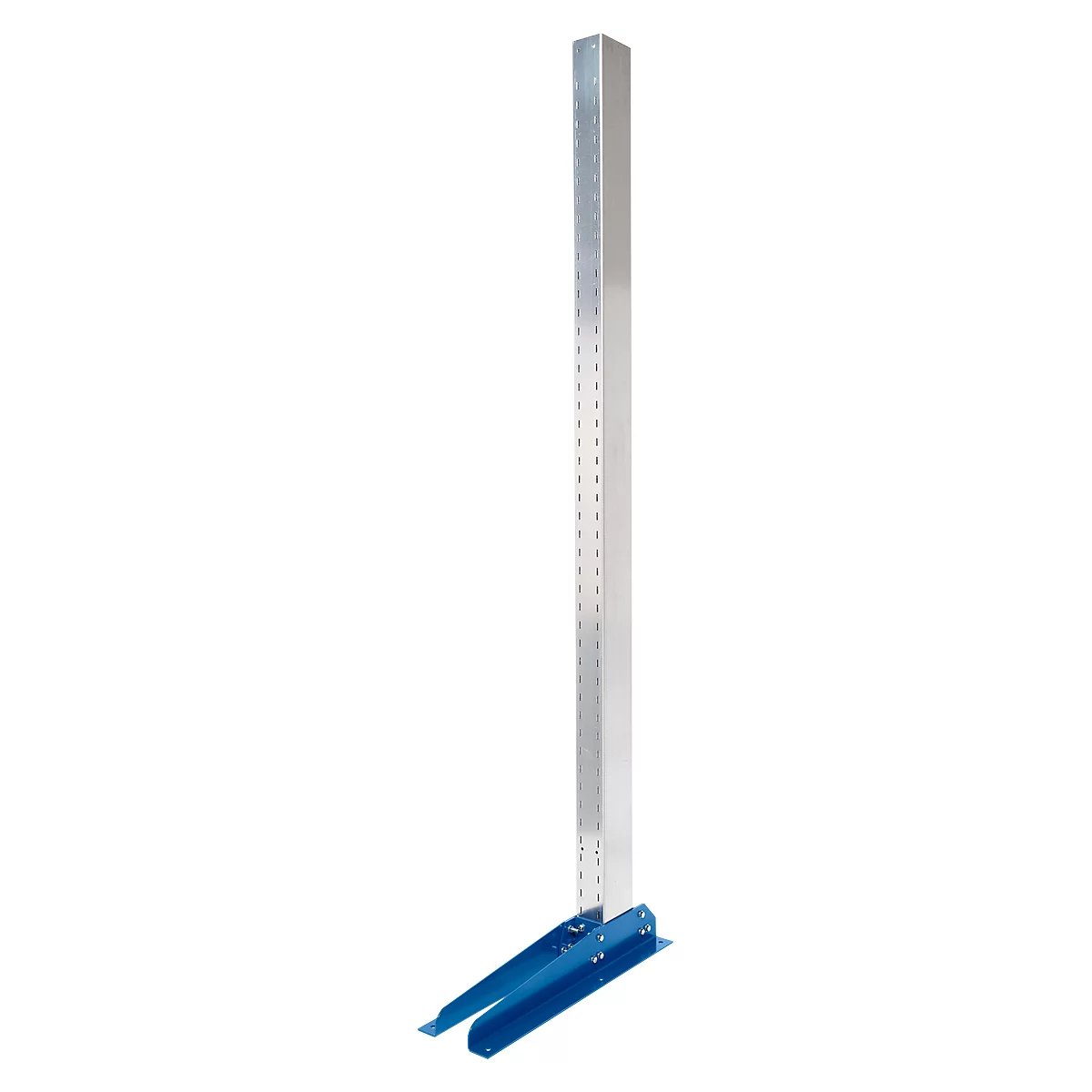

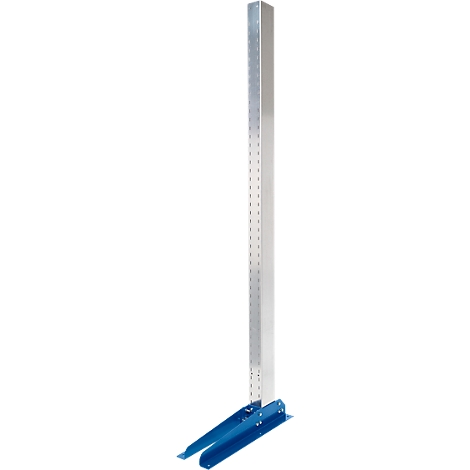

With the KRM cantilever upright, you have additional accessories for the KRM cantilever rack. The cantilever upright is designed on one side. For the connection of cantilever uprights, two longitudinal bracings are required in each case. The cantilever upright KRM is made of steel, galvanized and provided with a system perforation at a distance of 50 : 50 mm. The foot profiles consist of angle profiles in gentian blue (RAL 5010). The KRM cantilever stand is available in heights of 2000, 2500 or 3000 mm. We stock the cantilever upright with useful depths of 400, 500, 600 or 800 mm and also offer other accessories for the KRM cantilever rack.

Further details:

Accessories for cantilever rack KRM
Cantilever uprights, one-sided
To connect cantilever uprights, 2 longitudinal bracings are required in each case
Made of steel, zinc plated, system perforation 50 : 50 mm
Base profiles made of angle profiles in gentian blue (RAL 5010)
Height: optionally 2000 mm, 2500 mm or 3000 mm
Useful depth: optionally 400 mm, 500 mm, 600 mm or 800 mm

Show moreShow less

Technical data

General features
Clearance depth [mm] 400
Height [mm] 400
Length stand foot [mm] 700
Load/shelf side [kg] 2300
Material Steel, galvanised
Shelf type cantilever rack
Shelving system Cantilever rack KRM
Surface galvanised
Use unilateral
Useful depth [mm] 2000

Download

ProductSafety_10146359.pdf

Schäfer Shop Quality and Service

Special features of this product

only Fr. 324.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Height [mm]: 400 mm

400 mm 500 mm 600 mm 800 mm

Useful depth [mm]: 2000 mm

2000 mm 2500 mm 3000 mm

show all variants

Add to basket

Delivery time: within 4 weeks

Purchase on account available
Secure and fast payment

Our recommendations for you

Variants

Overview of variants - Cantilever stand KRM, one-sided, height 2000 to 3000 mm, useful depth 400 to 800 mm

Overview of the possible item variants. For more information, click on the respective variant.

Height [mm]

Useful depth [mm]

Item			Price
Cantilever arm bracket KRM, unilateral, height 2000 mm, usable depth 400 mm Item number: 123914			Fr. 324.00 Amount + - Added times
Cantilever arm bracket KRM, unilateral, height 2000 mm, usable depth 500 mm Item number: 123915			Fr. 366.00 Amount + - Added times
Cantilever arm bracket KRM, unilateral, height 2000 mm, usable depth 600 mm Item number: 123916			Fr. 361.00 Amount + - Added times
Cantilever arm bracket KRM, unilateral, height 2000 mm, usable depth 800 mm Item number: 123917			Fr. 391.00 Amount + - Added times
Cantilever arm bracket KRM, unilateral, height 2500 mm, usable depth 400 mm Item number: 123918			Fr. 478.00 Amount + - Added times
Cantilever arm bracket KRM, unilateral, height 2500 mm, usable depth 500 mm Item number: 123919			Fr. 488.00 Amount + - Added times
Cantilever arm bracket KRM, unilateral, height 2500 mm, usable depth 600 mm Item number: 123920			Fr. 484.00 Amount + - Added times
Cantilever arm bracket KRM, unilateral, height 2500 mm, usable depth 800 mm Item number: 123921			Fr. 514.00 Amount + - Added times
Cantilever arm bracket KRM, unilateral, height 3000 mm, usable depth 400 mm Item number: 123922			Fr. 501.00 Amount + - Added times
Cantilever arm bracket KRM, unilateral, height 3000 mm, usable depth 500 mm Item number: 123923			Fr. 511.00 Amount + - Added times
Cantilever arm bracket KRM, unilateral, height 3000 mm, usable depth 600 mm Item number: 123924			Fr. 507.00 Amount + - Added times
Cantilever arm bracket KRM, unilateral, height 3000 mm, usable depth 800 mm Item number: 123925			Fr. 537.00 Amount + - Added times
