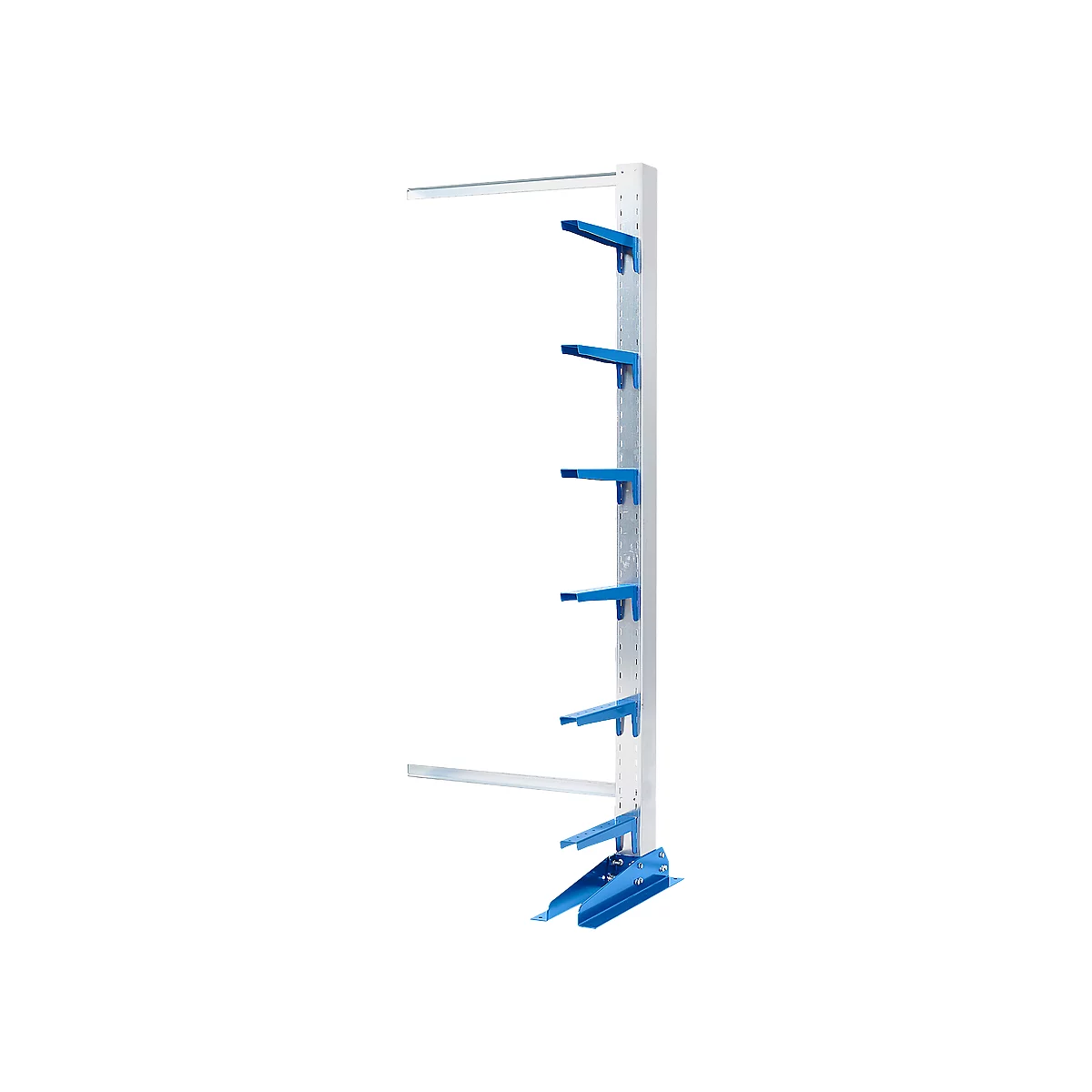

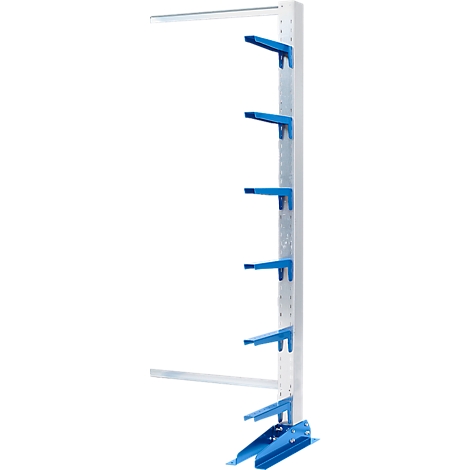

Cantilever rack add-on module KRM, one-sided, height 2000 mm, cantilever arm length 400 mm

The cantilever racking add-on bays KRM are ideal for material provision and storage of pipes, profiles or bulky materials. The KRM cantilever rack add-on bays are robust add-on bays for the KRM cantilever rack on one side. They consist of few components and are easy to assemble. As the add-on bays are designed as hook-in cantilever arms, they can be easily adjusted. The cantilever uprights are made of galvanised steel, with system perforation at a distance of 50 : 50 mm and with foot profiles in gentian blue and can be loaded up to 2300 kg with even load distribution. Floor anchors are included. Shelf heights are 2000, 2500 or 300 mm, cantilever lengths 400 or 500 mm.

Further details:

• For material supply and storage of pipes, profiles or long, bulky materials.
• Single sided add-on bay for cantilever racking KRM
• Simple assembly with few components
• Suspended cantilever arms, therefore adjustment without tools
• Robust design with solid base plate
• Cantilever uprights made of steel, galvanised, system perforation 50 : 50 mm
• Foot profiles made of angle profiles in gentian blue (RAL 5010)
• Load capacity up to 2300 kg per upright side with uniform height division and evenly distributed load
• Cantilever arm length 400 mm: Total depth 700 mm, load capacity per cantilever 350 kg* (with evenly distributed load).
• Cantilever arm length 500 mm: Total depth 800 mm, load per cantilever 300 kg* (with evenly distributed load ).
• Axle dimension: 1000 mm
• Shelf height: optionally 2000 mm, 2500 mm or 3000 mm
• Floor anchors included in delivery
