go to the brand shop: SSI Schäfer

Cantilever racking additional module KRM, double-sided, height 2000 mm, cantilever arm length 400 mm

Item number: 120721
Show moreShow less

Product description

The cantilever rack add-on bays KRM are double-sided add-on bays for the cantilever rack KRM. The suspendable cantilever arms are simply constructed, adjustable without tools and designed with a solid base plate. They are suitable for material procurement and storage of profiles, pipes and other bulky materials. The cantilever stands are made of galvanized steel and have base profiles in gentian blue. With even height adjustment and distributed load, KRM cantilever rack add-on bays can support loads of up to 2300 kg per upright side. Floor anchors are supplied. The shelf heights are 2000, 2500 or 3000 mm, the cantilever arm lengths vary between 400 and 500 mm.

Further details:

  • For material provision and storage of pipes, profiles or long, bulky materials.
  • Double-sided add-on bay for cantilever rack KRM
  • Simple assembly with few components
  • Hinged cantilever arms, therefore adjustment without tools
  • Robust design with solid base plate
  • Cantilever uprights made of steel, galvanised, system perforation 50 : 50 mm
  • Foot profiles made of angle profiles in gentian blue (RAL 5010)
  • Load capacity up to 2300 kg per upright side with uniform height division and evenly distributed load

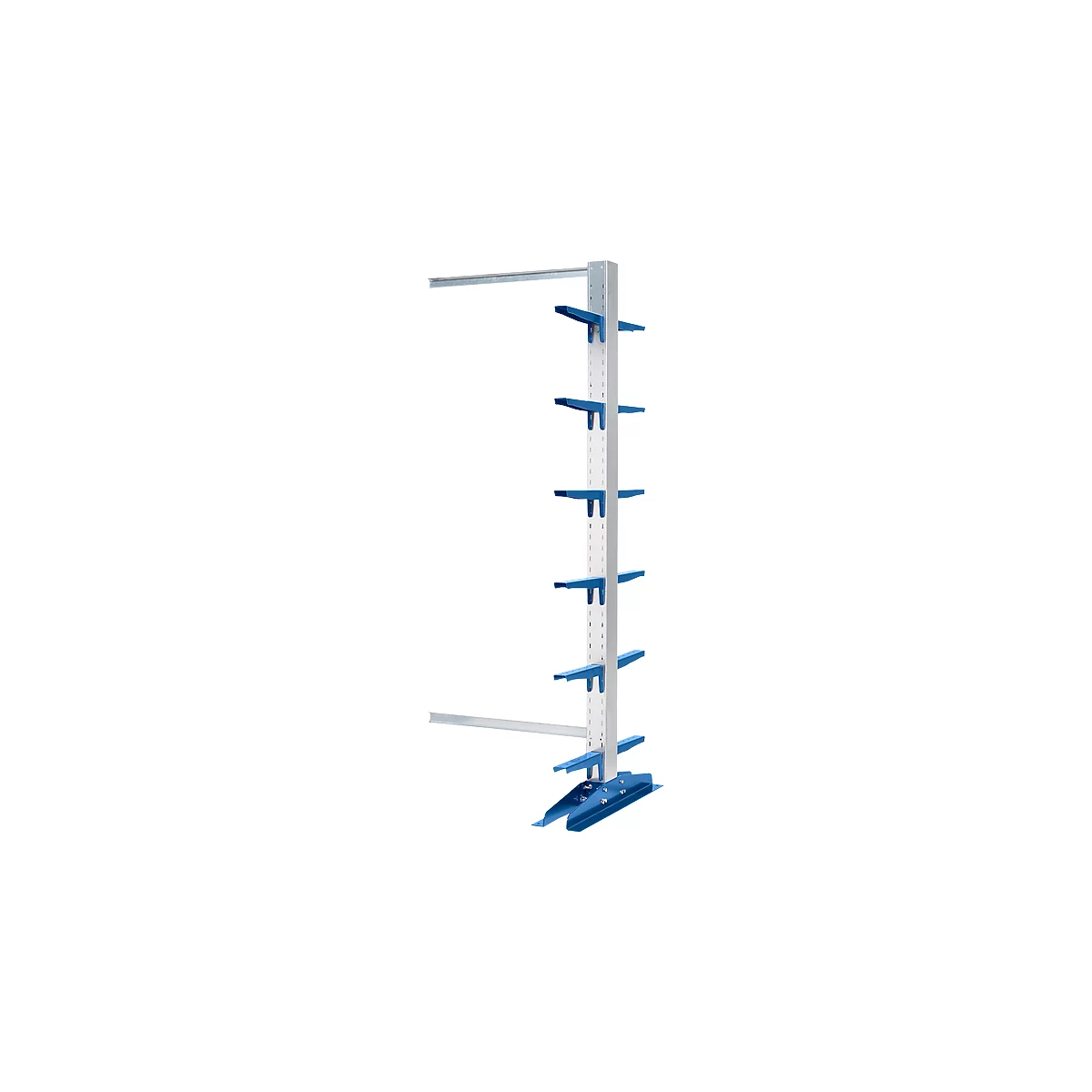

  • Cantilever arm length 400 mm: Total depth 1040 mm, load capacity per cantilever 350 kg* (with evenly distributed load).

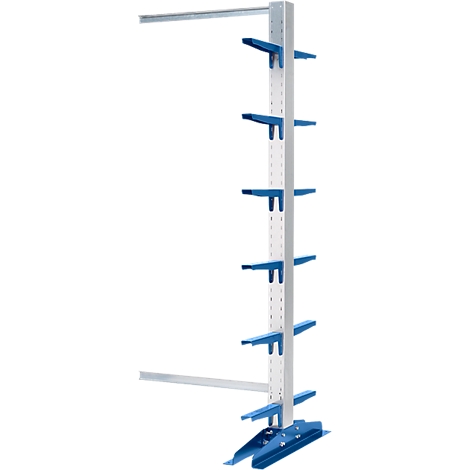

  • Cantilever arm length 500 mm: Total depth 1240 mm, load per cantilever 300 kg* (with evenly distributed load)
  • Axle dimension: 1000 mm
  • Shelf height: optionally 2000 mm, 2500 mm or 3000 mm
  • Floor anchors included in delivery
Show moreShow less

Technical data

  • General features
  • Color gentian blue RAL 5010
  • Color stand galvanised
  • Colour support arm gentian blue RAL 5010
  • Compartment load (kg) 350
  • Depth [mm] 1040
  • Height [mm] 2000
  • Length of cantilever arm [mm] 400
  • Length [mm] 400
  • Load capacity [kg] 2300
  • Material Steel
  • Scope of delivery Cultivation field, ground anchor
  • Shelf type extension rack
  • Width [mm] 1000

Schäfer Shop Quality and Service

Warehouse planning Logo LBE PS
Bearing analysis Logo LBE PS
Made in Germany
3 years warranty
only Fr. 622.00
per Pcs.
excl. VAT free shipping from CHF 100.–
Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions
This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Depth [mm]: 1040 mm

1040 mm 1240 mm

Height [mm]: 2000 mm

2000 mm 2500 mm 3000 mm
-
+

Delivery time: within 4 weeks
