Product Safety Information

TRESTON 1630, 16 drawers, P 300 mm, transparent

General information

EU authorized representative E-mail address

info.de@treston.com

EU authorized representative Name

Treston Deutschland GmbH

EU authorized representative Place

Hamburg

EU authorized representative Postal code

22047

EU authorized representative Street & house number

Friedrich-Ebert-Damm 143

EU Plenipotentiary Country

Deutschland

Product safety instructions

Do not place or store any heavy or unstable objects on the drawer unit.;Do not overload drawers to avoid damage.;Take care when using small parts; be aware of the risk of suffocation.;The drawer dispenser is not suitable for damp environments.;Only secure items against vertical tipping when stacked.;Observe the maximum load of the drawers to avoid damage or accidents.;Improper use or overloading can cause drawers to break; follow the user instructions.;Do not place the product near heat sources.;Make the base stable and load-bearing to prevent stackable drawer units from tipping over.;Use in automatic carousels only as instructed.;Take care with sharp edges and corners.;Use only for the purposes intended by the manufacturer.;Improper handling can lead to damage.

Article numbers

70147 70148 70150 70159

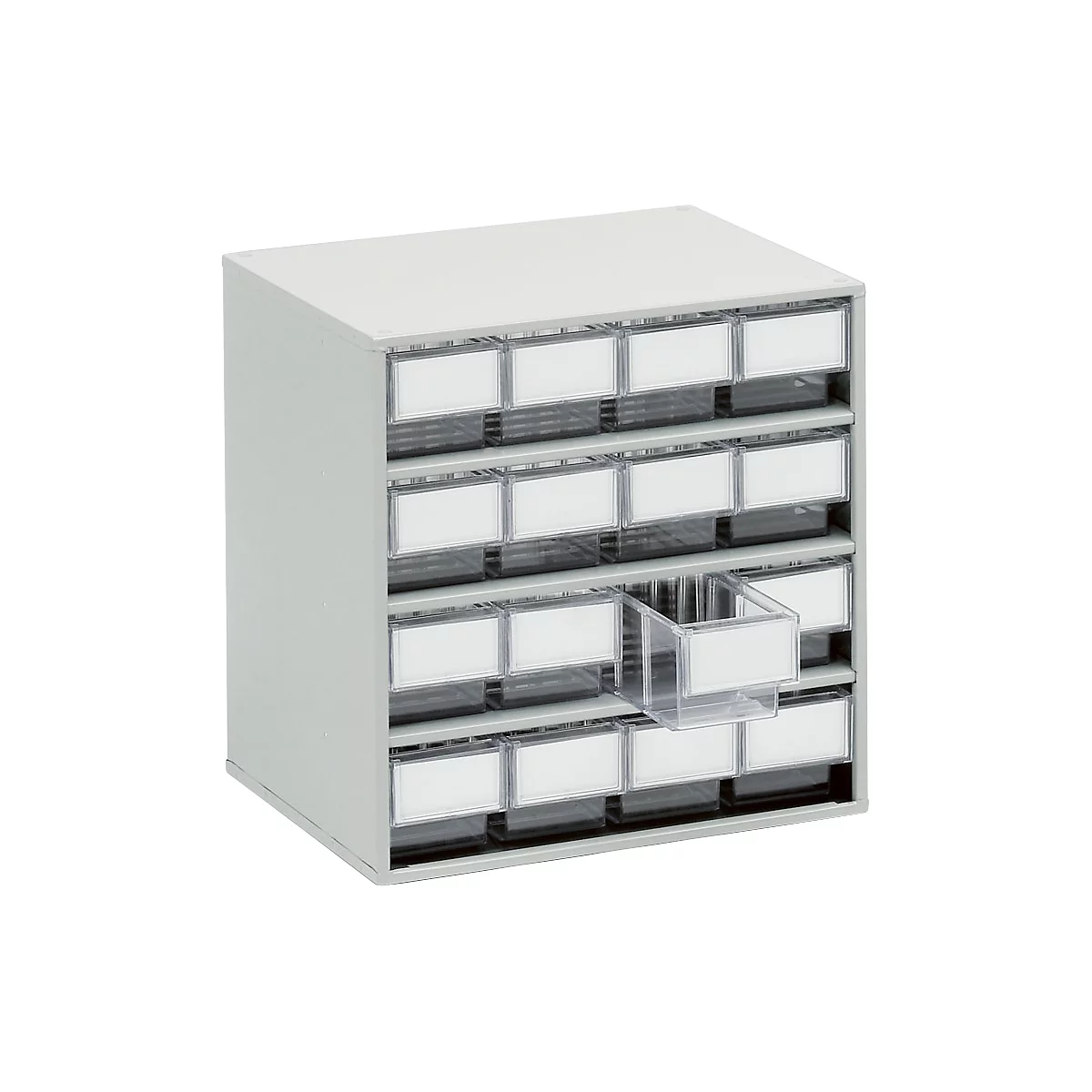

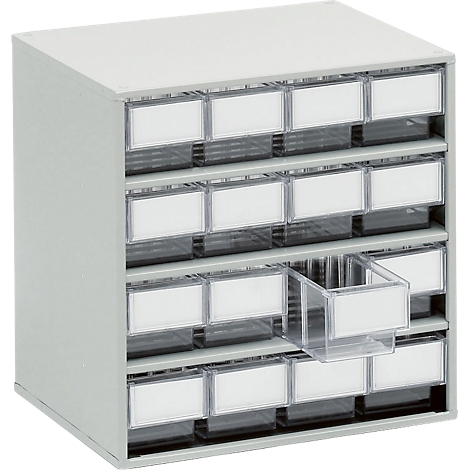

TRESTON 1630, 16 drawers, P 300 mm, transparent

Name: TRESTON 1630, 16 drawers, P 300 mm, transparent
Brand: Treston
SKU: 7473433
Price: 233.5 CHF
Availability: InStock

Item number: 70150

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

Are simply stacked on top of each other or hung on the wall. Treston drawer and small parts magazines are already fully equipped with drawers in the same colour.
Magazine made of sturdy, grey stove-enamelled sheet steel, equipped with 16 drawers. Drawers made of polystyrene.

Corrugated drawer bottom facilitates gripping of small and flat parts
ideal for use in automatic carousels due to robot-friendly drawer handle
large-area plug-in labels for labelling
stackable with drawers of the same width, even with different depths
can be divided crosswise by partitions
protective shield for drawer labels
external dimensions of magazine: H 395 x W 400 x D 300 mm
Drawer outer dimensions: H 82 x W 92 x D 300 mm
16 drawers type 3010: H 82 x W 92 x D 300 mm

Show moreShow less

Technical data

General features
(Driver) esd No
Body material Steel
Capacity (litres) per drawer 1,3
Color crystal clear
Depth [mm] 300
Drawer depth inside (mm) 257
External depth of the drawer (mm) 300
External dimensions D x W x H [mm] 302 x 400 x 395
External height of the drawer (mm) 82
External width of drawer (mm) 92
Frame depth(mm) 300
Frame height (mm) 395
Frame width (mm) 400
Height [mm] 395
Inside height of drawer (mm) 70
Inside width of drawer (mm) 75
Made from recycled plastic No
Material drawers Polystyrene (PS)
Number of drawer(s) 16
Rotatable not
Series 1630
Stackable Yes
Suitable for 3010
Temperature resistance [°C] 55 °C
Type 1630
Weight [kg] 7.9
Width [mm] 400
Withstands temperatures from (°C) -40 °C
Dimensions
Outer dimensions drawers D x W x H [mm] 302 x 92 x 82

Download

ProductSafety_10133515.pdf

Schäfer Shop Quality and Service

only Fr. 233.50

per Pcs.

Incl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF9.60.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Color: crystal clear

show all variants

Add to basket

Delivery time: within 1 week

Secure and fast payment

Our recommendations for you

Variants

Overview of variants - TRESTON drawer magazine 1630, 16 drawers, D 300 mm

Overview of the possible item variants. For more information, click on the respective variant.

Color

Item			Price

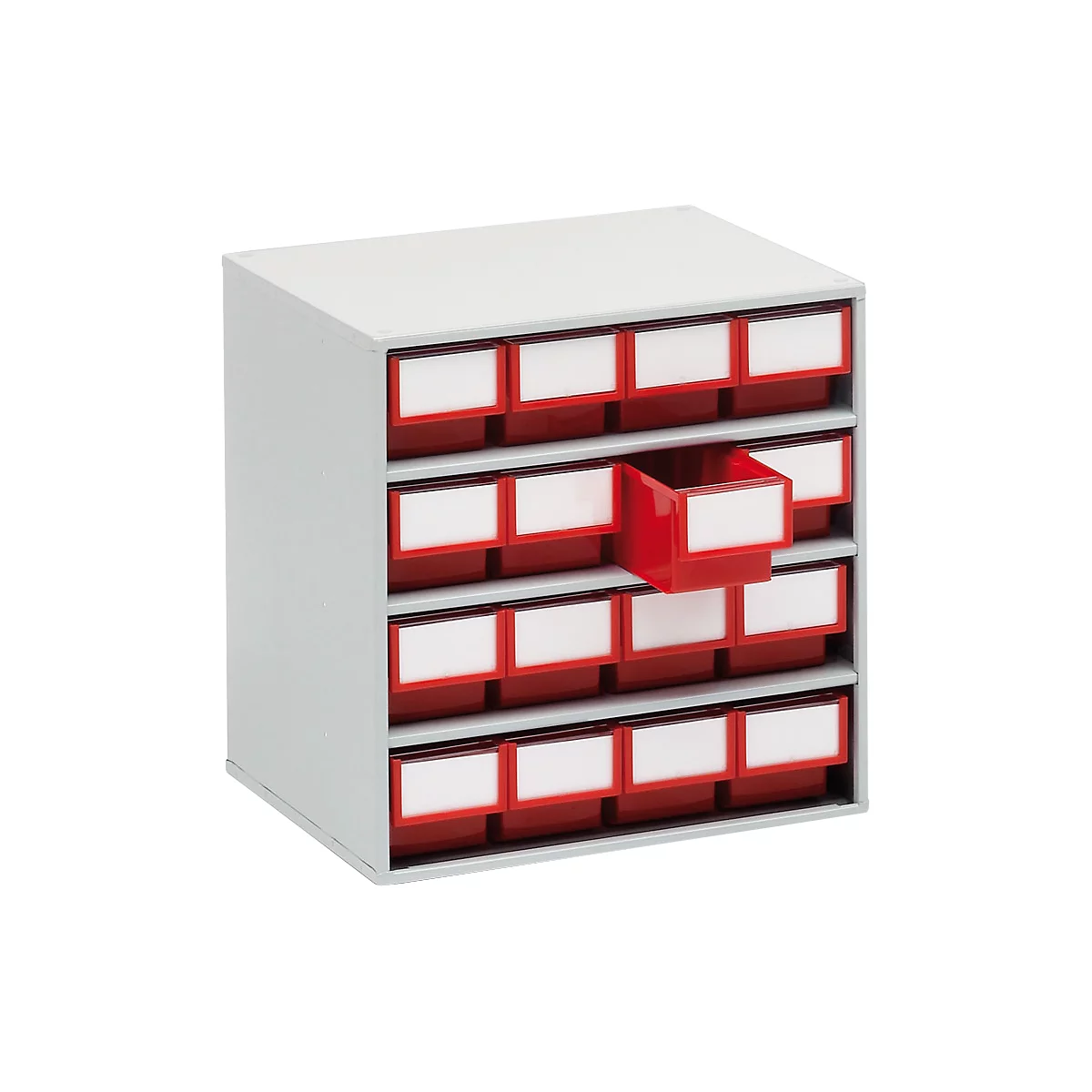

TRESTON 1630 Drawer Cabinet, 16 drawers, P 300 mm, red Item number: 70147			Fr. 222.70 Amount + - Added times

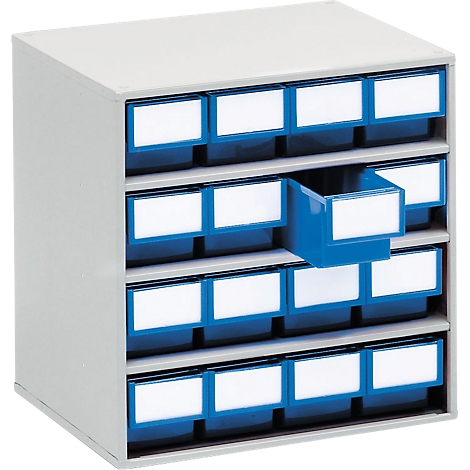

TRESTON 1630 Drawer Cabinet, 16 drawers, P 300 mm, blue Item number: 70148			Fr. 220.50 Amount + - Added times
TRESTON 1630, 16 drawers, P 300 mm, transparent Item number: 70150			Fr. 233.50 Amount + - Added times

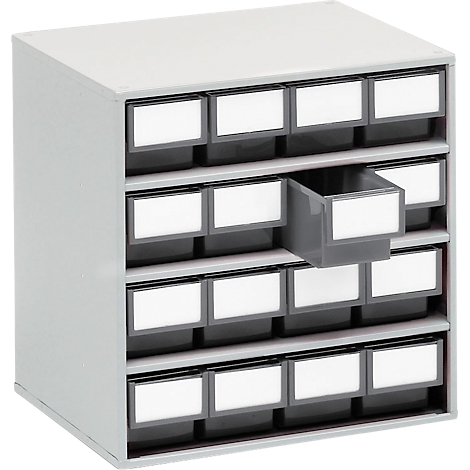

TRESTON 1630 Drawer Cabinet, 16 drawers, P 300 mm, grey Item number: 70159			Fr. 222.70 Amount + - Added times
