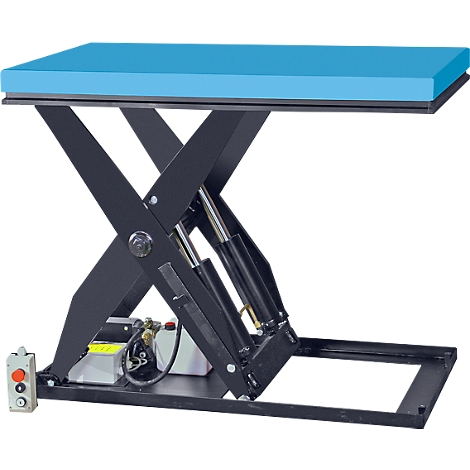

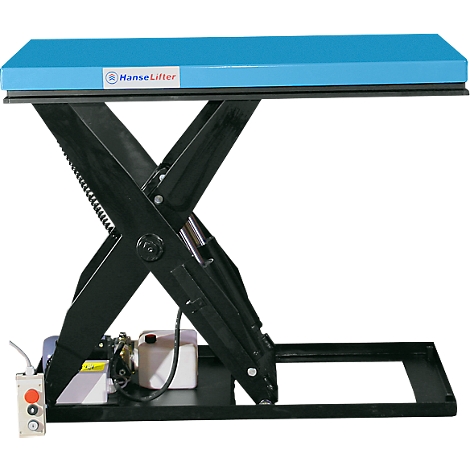

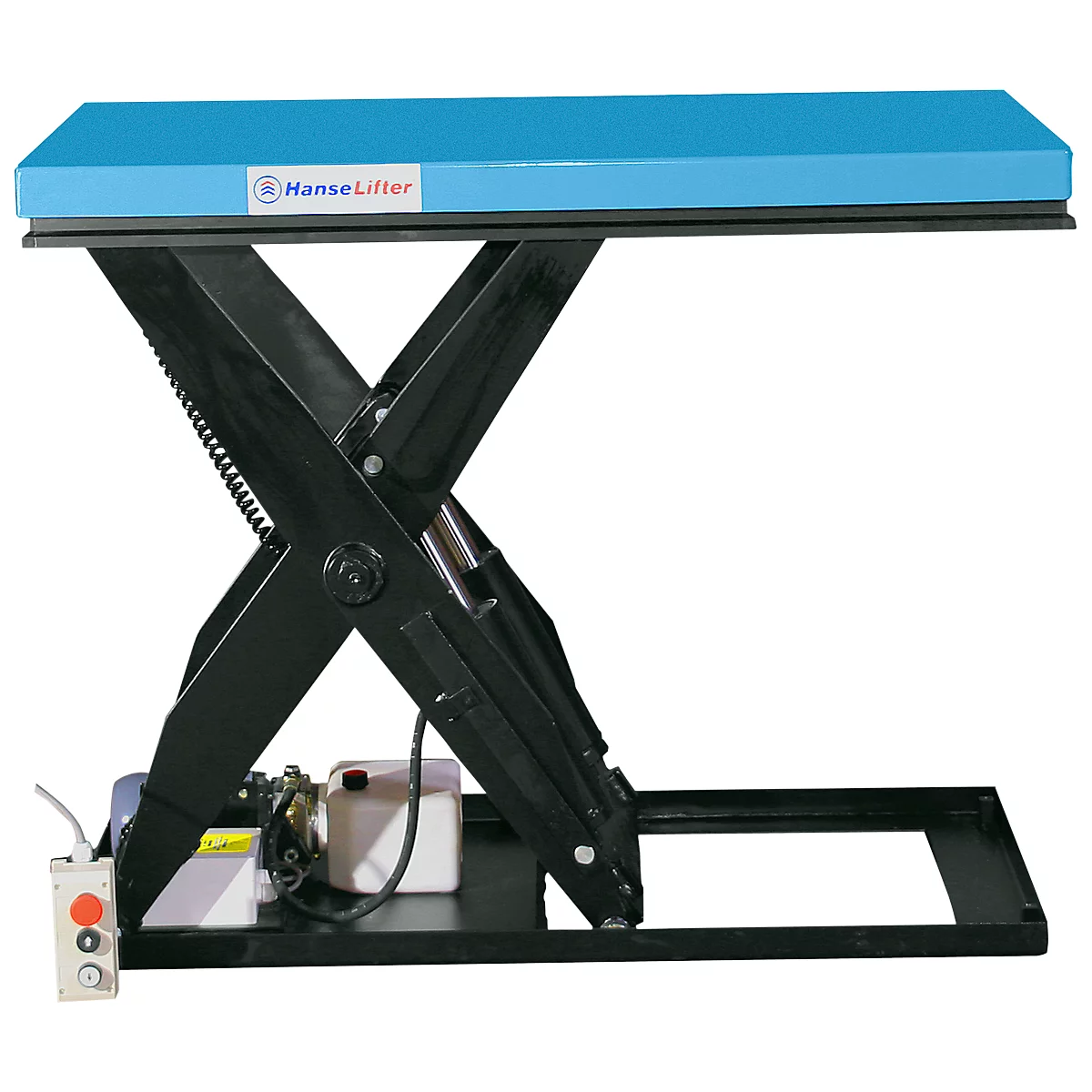

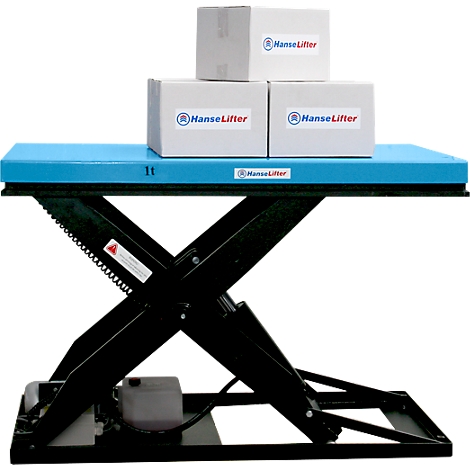

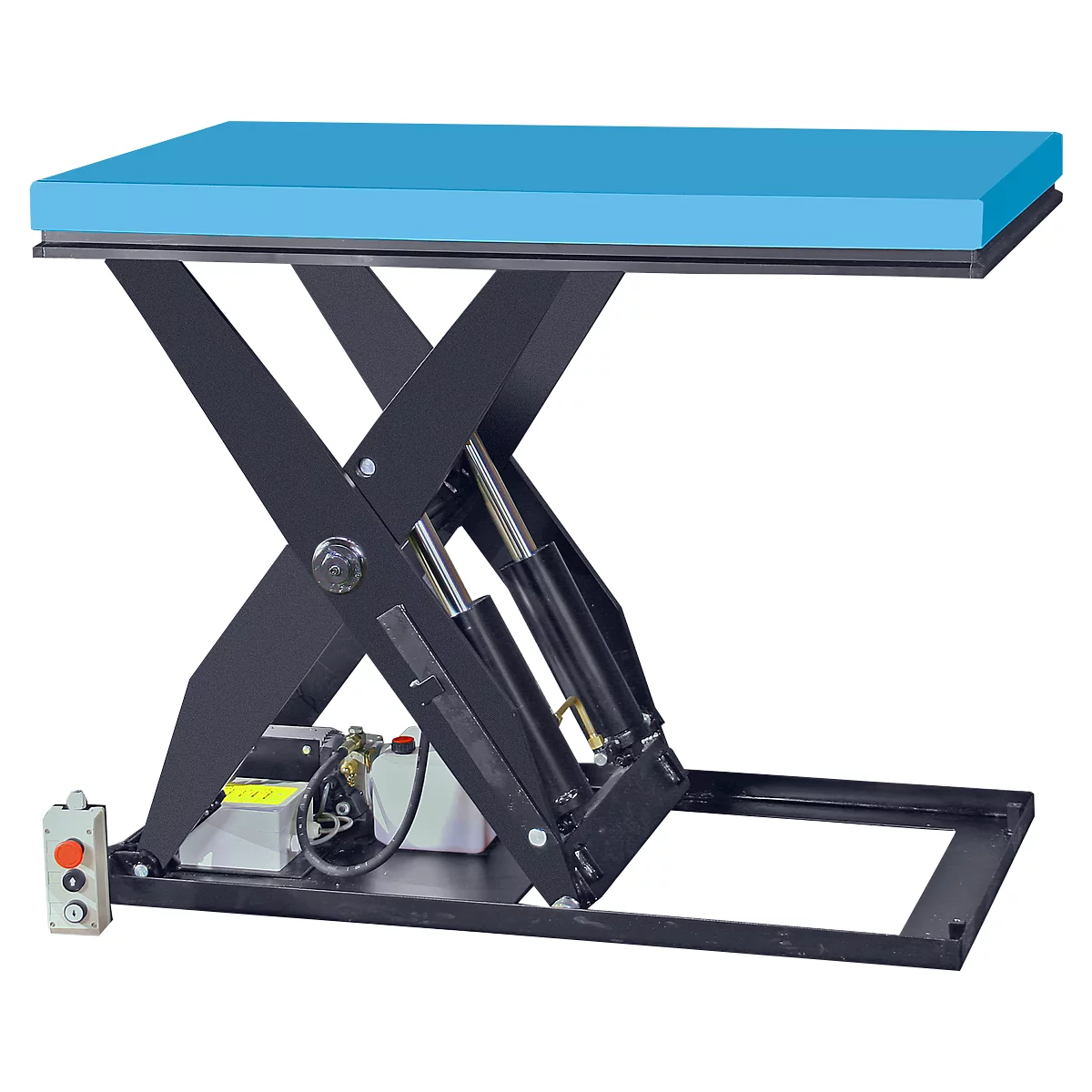

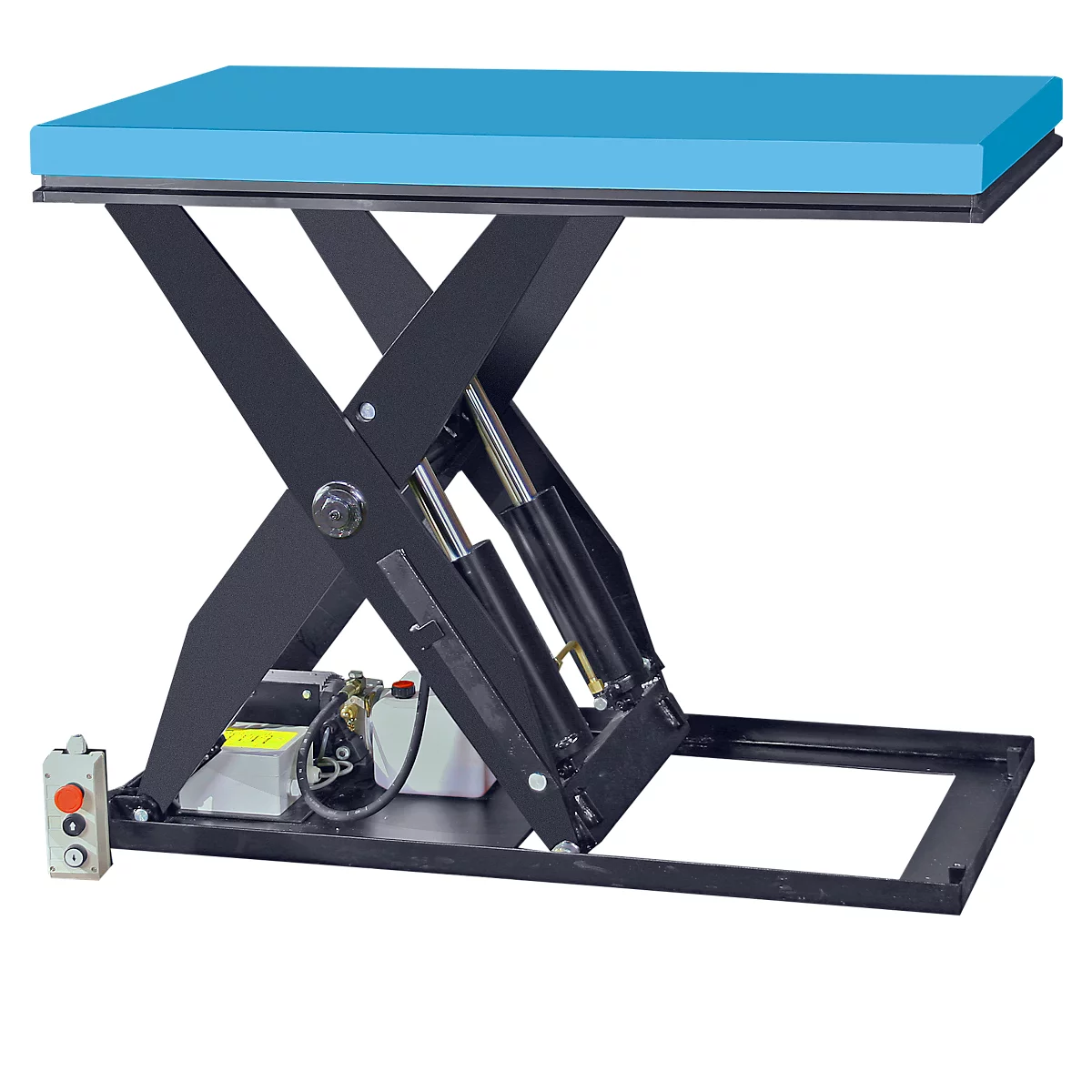

Lift table, fixed, load capacity 500 kg

Item number: 129747
Show moreShow less

Product description

  • Stepless hydraulic height adjustment
  • External control panel with approx. 2.65 m supply cable
  • Mechanical safety device for maintenance work
  • Complies with EN 1570


Technical data:
Load capacity: 500 kg

  • Lifting range: 190 - 1010 mm
  • Lifting speed: 55 mm/s
  • Platform dimensions: 1300 x 800 mm
  • motor power: 0,75 kW
  • Operating voltage: 380V/50Hz
  • Dead weight: 160 kg


lifting capacity: 1.000 kg

  • Lifting range: 190 - 1010 mm
  • Lifting speed: 40 mm/s
  • platform dimensions: 1300 x 800 mm
  • motor power: 0,75 kW
  • Operating voltage: 380V/50HZ
  • Dead weight: 220 kg


lifting capacity: 2.000 kg

  • Lifting range: 190 - 1010 mm
  • Lifting speed: 22 mm/s
  • platform dimensions: 1300 x 800 mm
  • motor power: 0,75 kW
  • Operating voltage: 380V/50HZ
  • Dead weight: 280 kg
Show moreShow less

Technical data

  • General features
  • Cable length [m] 2,65
  • Color gentian blue
  • Delivery Partially assembled
  • Double shears Yes
  • Final height (mm) 1010
  • Hydraulic cylinder Yes
  • Length [mm] 1300
  • Lift drive electrically by electric motor
  • Lift motor (kw) 0,75 kW
  • Lifting speed unloaded (mm/s) 55 mm/s
  • Load capacity [kg] 500
  • Load capacity [kg] 500
  • Manufacturer No. 11002687
  • Material Steel
  • Mobile No
  • Overall height [mm] 190
  • Platform length(mm) 1300
  • Platform width [mm] 800
  • Stroke range [mm] 190 - 1010
  • Useful height (mm) 190
  • Version stationary lifting table
  • Weight [kg] 160
  • Width [mm] 800

Schäfer Shop Quality and Service

1 year warranty

Special features of this product

Optim. Working height/stand area
only Fr. 3’151.00
per Pcs.
excl. VAT free shipping from CHF 100.–
Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions
This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Load capacity [kg]: 500 kg

500 kg 1000 kg 2000 kg
-
+

Delivery time: within 3 weeks
