CR 500 scissor lift table, 500 kg load capacity

General information

EU authorized representative E-mail address

info@edmolift.de

EU authorized representative Name

EdmoLift Hebetechnik GmbH

EU authorized representative Place

Wunstorf

EU authorized representative Postal code

31515

EU authorized representative Street & house number

Hohenfelder Str. 5a

EU Plenipotentiary Country

Deutschland

Product safety instructions

Risk of injury and crushing due to improper operation or overloading. Only to be operated by qualified personnel; user training required.;Risk of slipping due to improper positioning of the lift table; ensure a safe standing surface.;Use the emergency stop button and inform all users of its function; check the safety edge to minimise the risk of injury.;Observe the maintenance instructions to ensure safety; regularly check the lift table and safety devices in accordance with the manufacturer's instructions.;Ensure that all electrical components are properly connected to avoid the risk of electric shock.;Do not load with more than the maximum load capacity of 1000 kg to avoid damage. Observe the specific load capacity of 2000 kg and do not overload.;Before use, ensure that all maintenance and safety devices are intact; check the control element for proper function.;Maintain a minimum distance from the danger zone during operation and ensure safe handling.;Read and understand the operating instructions thoroughly before use; training in safe handling of the product is necessary.;Properly maintain hydraulic components to prevent overheating; check maintenance supports regularly.

Article numbers

72941 72942 72943 72944 72946 72947

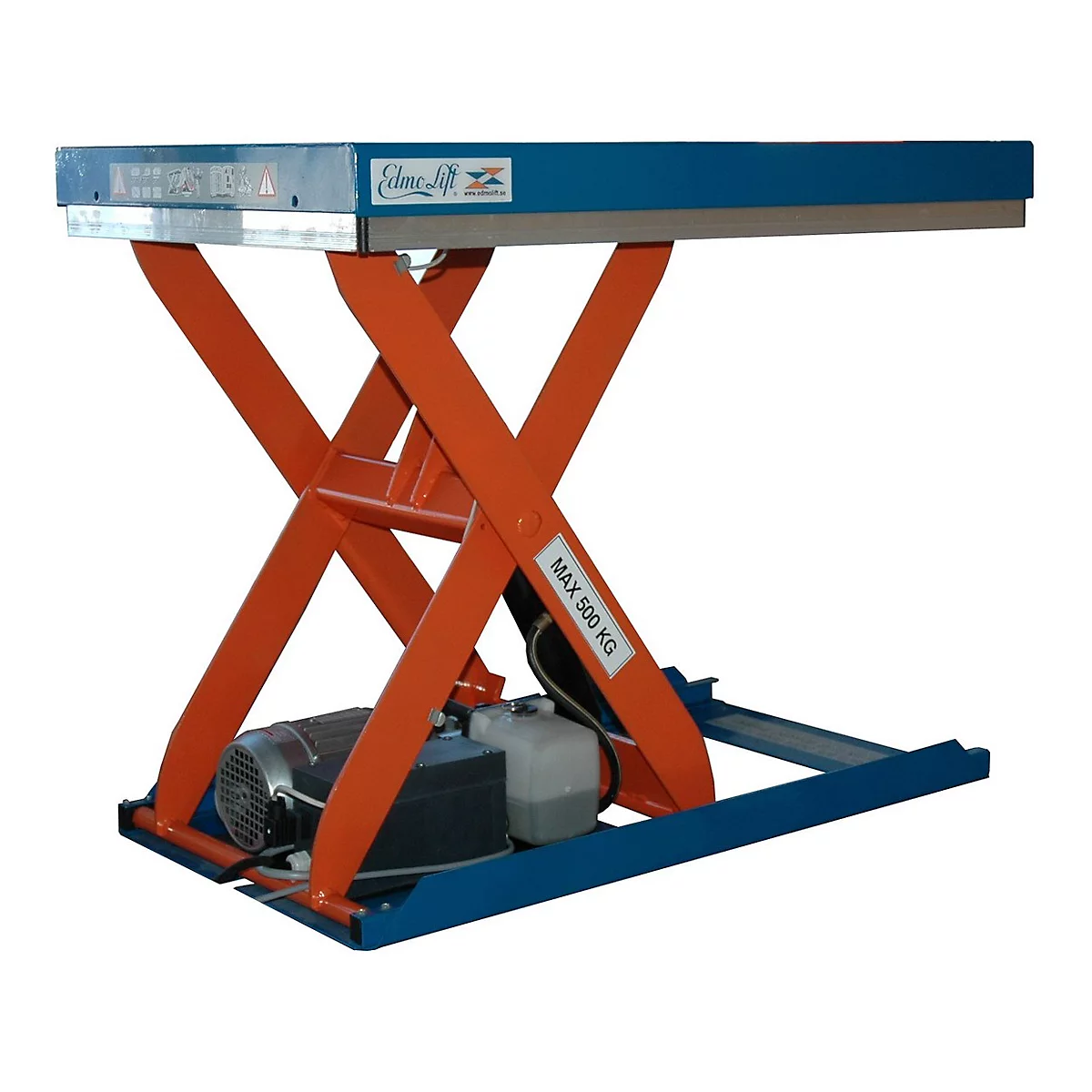

CR 500 scissor lift table, 500 kg load capacity

Item number: 72941

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

The C-models of the lifting table are inexpensive due to large series productions and have a lifting intensity of 30 strokes per day at maximum load. The design of the lifting tables complies with EN 1570-1 and is also suitable for pit installation.
The lifting table is equipped with a circumferential safety rail incl. acknowledgement function, a mechanical pipe break valve in the cylinder, an electromagnetic pipe break valve on the cylinder, maintenance supports as well as a pressure relief and constant flow valve. The lowering speed is adjustable, the hydraulic cylinders have chrome-plated piston rods. The control element for lifting and lowering has a dead man's function, an "up" - "down" button and an emergency stop button with locking function.
Special designs, lifting tables with double or tandem scissors as well as extensive accessories (wheel underframe, lifting carriage device, round turntables) are available on request!

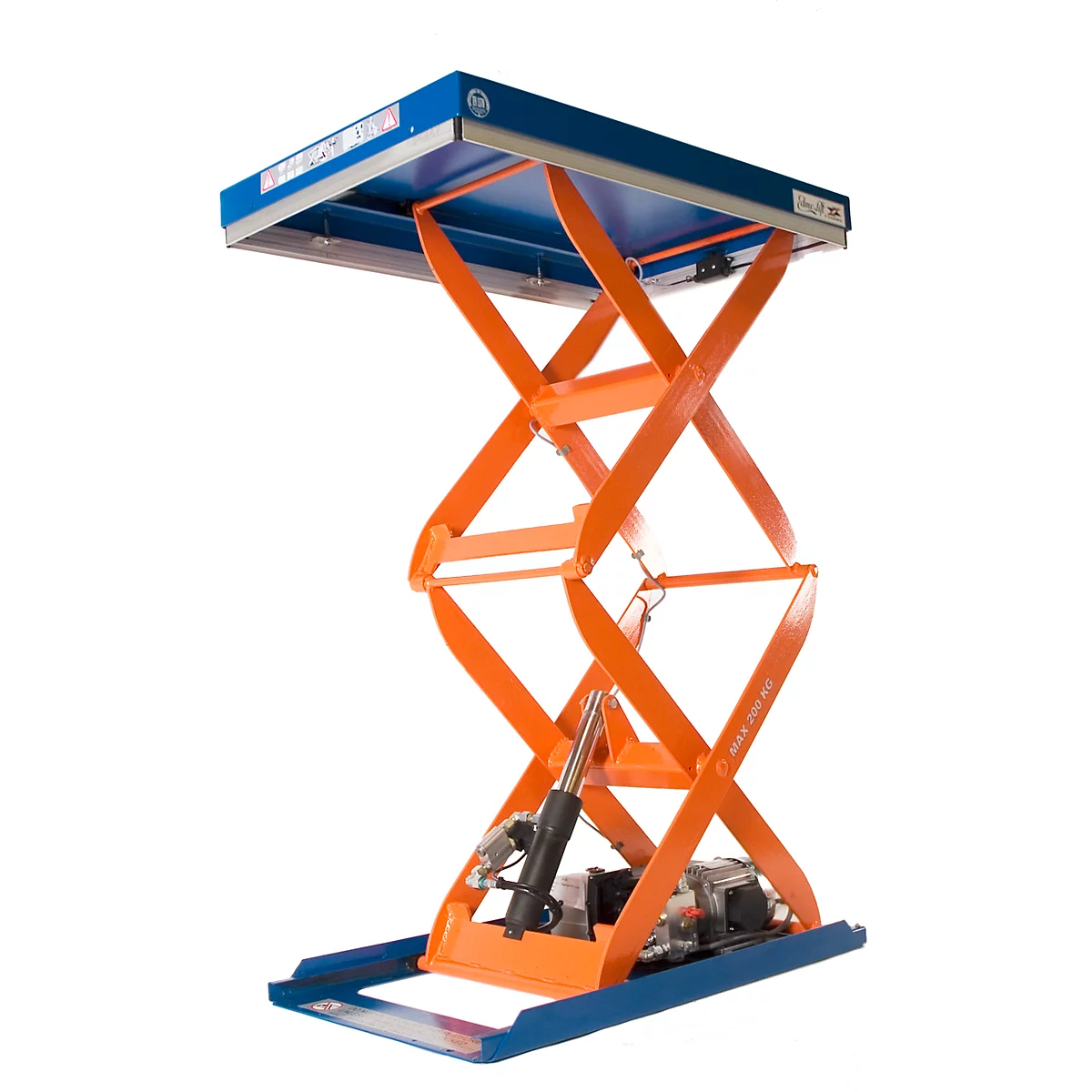

Model CRD 200 (with double scissors)- Lifting
capacity: 200 kg-
Overall height: 280 mm, effective stroke: 1170 mm, final height: 1450 mm-
Lifting time: approx. 12 sec

. -

Power: 0.37 kW-
Weight: approx. 85 kgModel

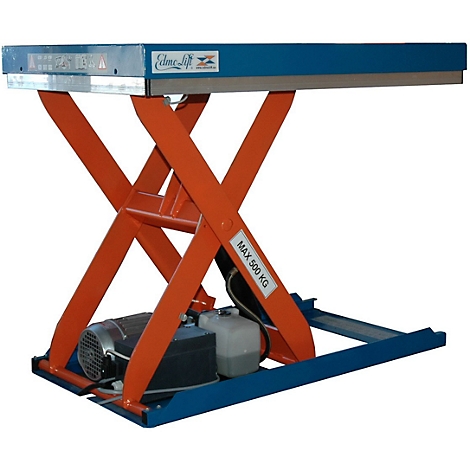

CR 500-

Lifting

capacity: 500

kg-

Overall height: 160 mm, effective stroke: 600 mm, final height: 760 mm- Lift

ing

time: approx

.

12 sec-
Power: 0,37 kW-
Weight: approx. 90 kgModel
CR 1000-

Lifting

capacity: 1000 kg

-

Height: 160 mm, Effective stroke: 600 mm, Final height: 760 mm-
Lifting time: approx. 23 sec-
Power: 0,37 kW-
Weight

: approx.

110 kgModel

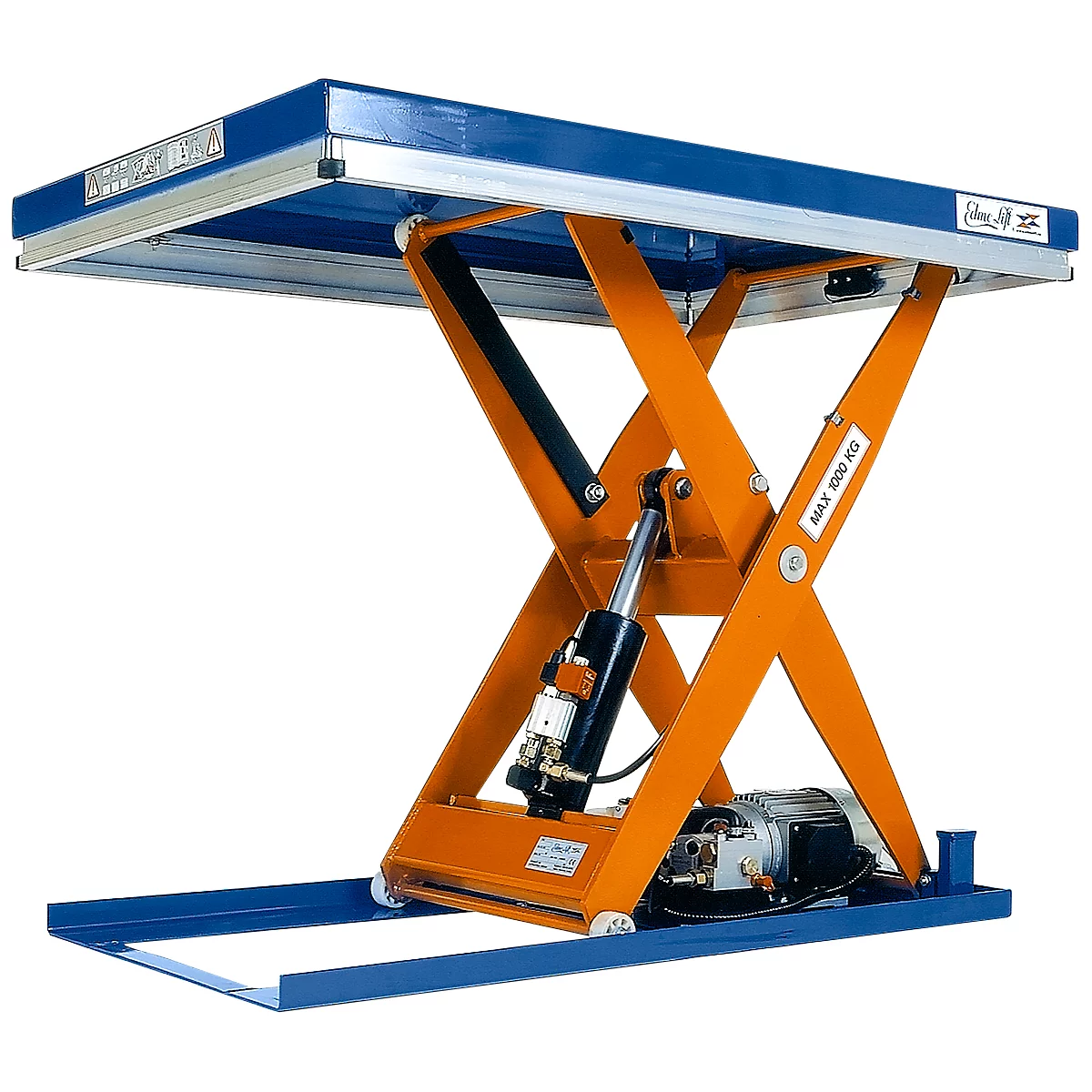

CL 1001-
Lifting

capacity: 1000

kg-

Overall height: 180 mm, Effective stroke: 820 mm, Final height: 1000 mm- Lift

ing

time: approx. 15 sec

.

- Power: 0,75 kW-
Weight: approx. 152 kgModel

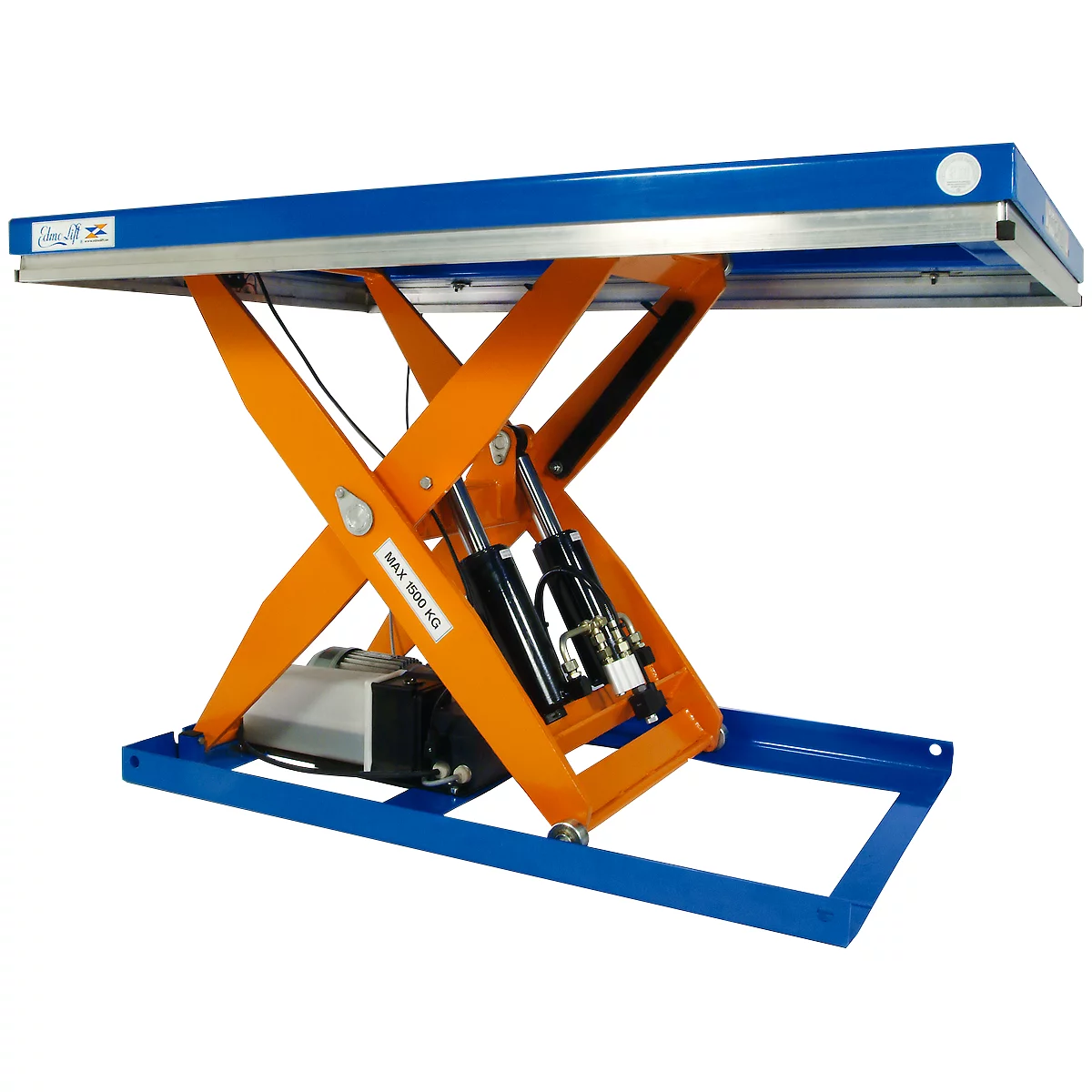

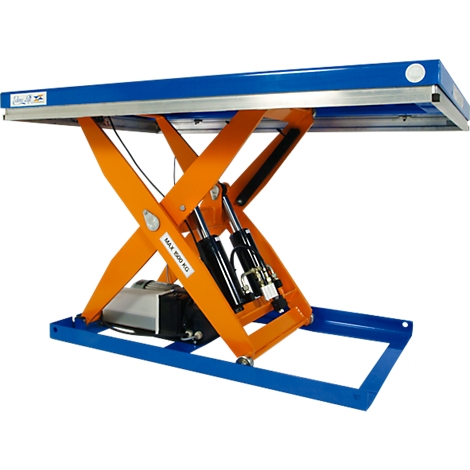

CB 1500-

Lifting

capacity: 1500

kg-

Overall height: 210 mm, Effective stroke: 1000 mm, Final height: 1210 mm- Lift

ing

time: approx

.

17 sec-
Power: 1,5 kW- Weight
:

approx. 255 kgModel

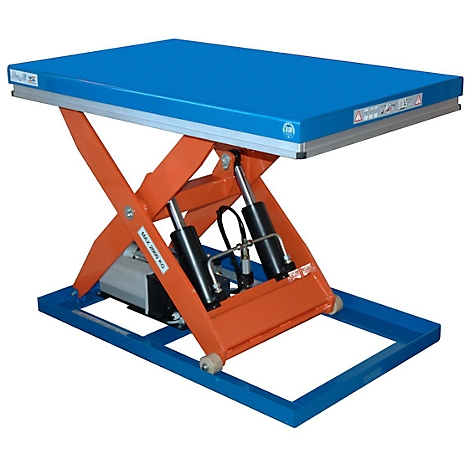

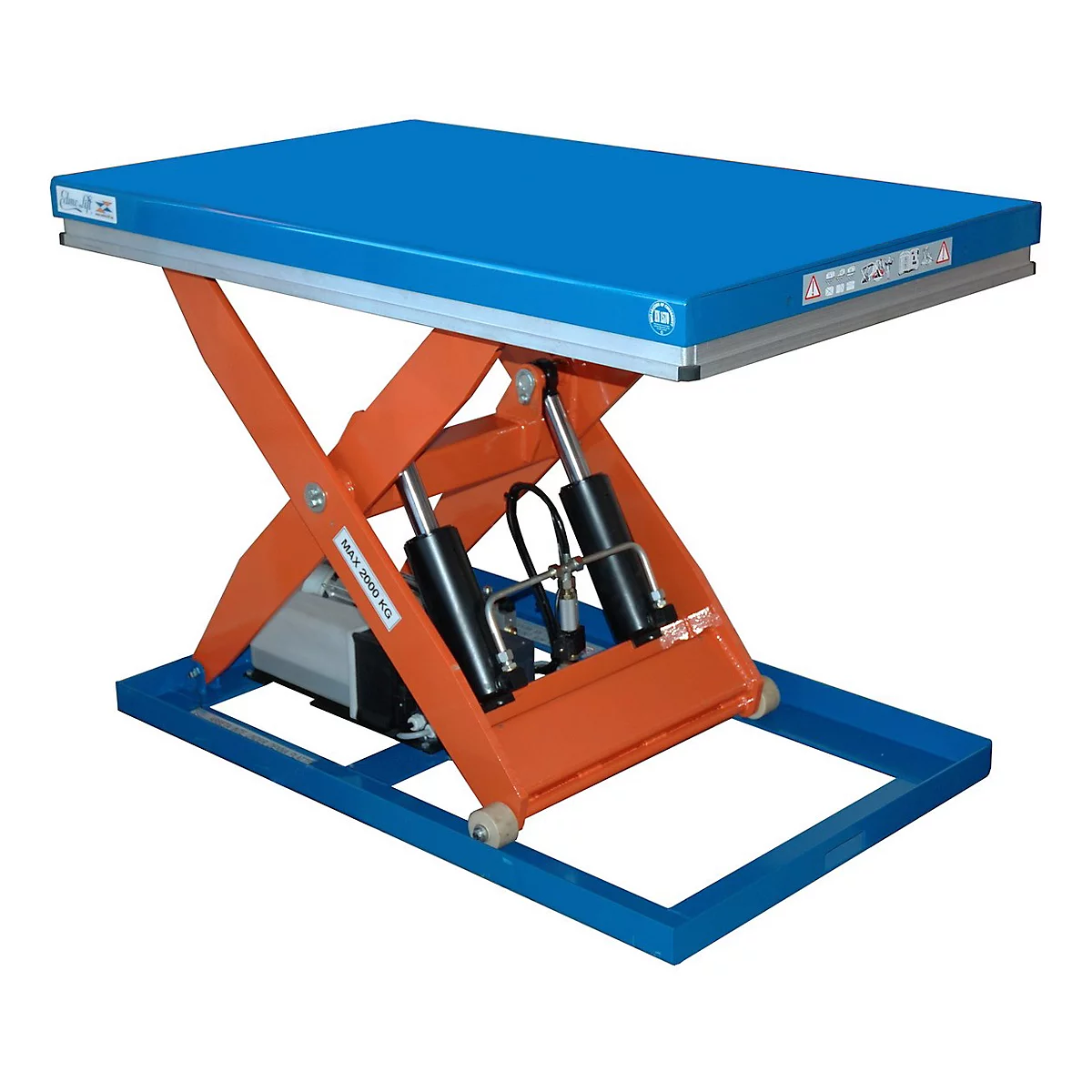

CL 2000-

Lifting

capacity: 2000 kg

-

Overall height: 200 mm, Effective stroke: 820 mm, Final height: 1020 mm-
Lifting time: approx. 17 sec-
Power: 1,5 kW- Weight

: approx.

200 kg

Maintenance-free slide bearings in the scissors
Colour: platform and base frame in blue (RAL 5002), scissors or moving parts in signal orange (RAL 2010)
Electronic control unit UC60 in plug-and-play version
control voltage: 24 VDC
Protection class: IP 65
cable length for control unit: 3 m

Special designs, lifting tables with double or tandem scissors as well as extensive accessories (wheel underframe, lifting carriage device, round turntables) available on request!

Show moreShow less

Technical data

General features
Cable length [m] 3
Color violet blue RAL 5000; signal orange RAL2010
Control Yes
Control voltage [V] 24
Delivery Partially assembled
DIN EN DIN EN 1570
Double shears No
Final height (mm) 760
Hydraulic cylinder Yes
Length [mm] 900
Lift drive electrical
Load capacity [kg] 500
Material Steel
Mobile No
Model CR 500
Overall height [mm] 160
Pipe rupture valve mechanical
Platform length(mm) 900
Platform width [mm] 600
Power (W) 370
Protection class IP 65
Stroke range [mm] 160 - 760
Stroke time [s] 12
Table top L x W [mm] 900 x 600
Total length (mm) 900
Total width [mm] 600
Useful height (mm) 600
Version Suitable for pit installation
Width [mm] 600
Dimensions
Weight [kg] 90

Download

ProductSafety_10079533.pdf

Schäfer Shop Quality and Service

Special features of this product

only Fr. 3’151.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Model: CR 500

CR 500 CR 1000 CL 1001 CL 2000 CB 1500 CRD 200

Table top L x W [mm]: 900 x 600 mm

900 x 600 mm 900 x 700 mm 1200 x 800 mm 1300 x 800 mm 1500 x 800 mm

show all variants

Add to basket

Delivery time: approx. 7 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Edmolift lifting tables C-model

Overview of the possible item variants. For more information, click on the respective variant.

Model

Table top L x W [mm]

Item			Price
CR 500 scissor lift table, 500 kg load capacity Item number: 72941			Fr. 3’151.00 Amount + - Added times
CR 1000 scissor lift table, 1000 kg load capacity Item number: 72942			Fr. 3’519.00 Amount + - Added times
Scissor Lift Table CL 1001, load capacity 1000 kg Item number: 72943			Fr. 3’488.00 Amount + - Added times
Scissor Lift Table CL 2000, load capacity 2000 kg Item number: 72944			Fr. 4’095.00 Amount + - Added times
Scissor Lift Table CB 1500, load capacity 1500 kg Item number: 72946			Fr. 4’412.00 Amount + - Added times
CRD 200 scissor lift table, 200 kg load capacity Item number: 72947			Fr. 3’570.00 Amount + - Added times
