Product Safety Information

Tipper container 4703, 600 l, blue RAL 5007, without drainage tap and sieve

General information

EU authorized representative E-mail address

info@fetra.de

EU authorized representative Name

fetra Fechtel Transportgeräte GmbH

EU authorized representative Place

Borgholzhausen

EU authorized representative Postal code

33829

EU authorized representative Street & house number

Industriestraße 17-21

EU Plenipotentiary Country

Deutschland

Product safety instructions

Take protective measures against crushing and cutting injuries caused by moving parts, especially during the tilting process.;Do not exceed the load capacity of the dumper truck (max. 750 kg) to avoid structural damage or accidents.;Before use, ensure that the wheels are working properly and that the TOTALSTOP mechanism is active.;Only allow trained personnel to operate the appliance.;Use protective clothing, such as safety shoes, to avoid injuries caused by sharp edges or heavy loads.;Ensure sufficiently stable surfaces to prevent tipping over.;Use suitable safety precautions when emptying the container with a forklift truck.;Be aware of the risk of suffocation due to improper handling of pourable materials.;The operating instructions should be read carefully before use.

Article numbers

309076 309077 309084 309085

Tipper container 4703, 600 l, blue RAL 5007, without drainage tap and sieve

Name: Tipper container 4703, 600 l, blue RAL 5007, without drainage tap and sieve
Brand: Fetra
SKU: 7465819
Price: 1219.0 CHF
Availability: InStock

Item number: 309076

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

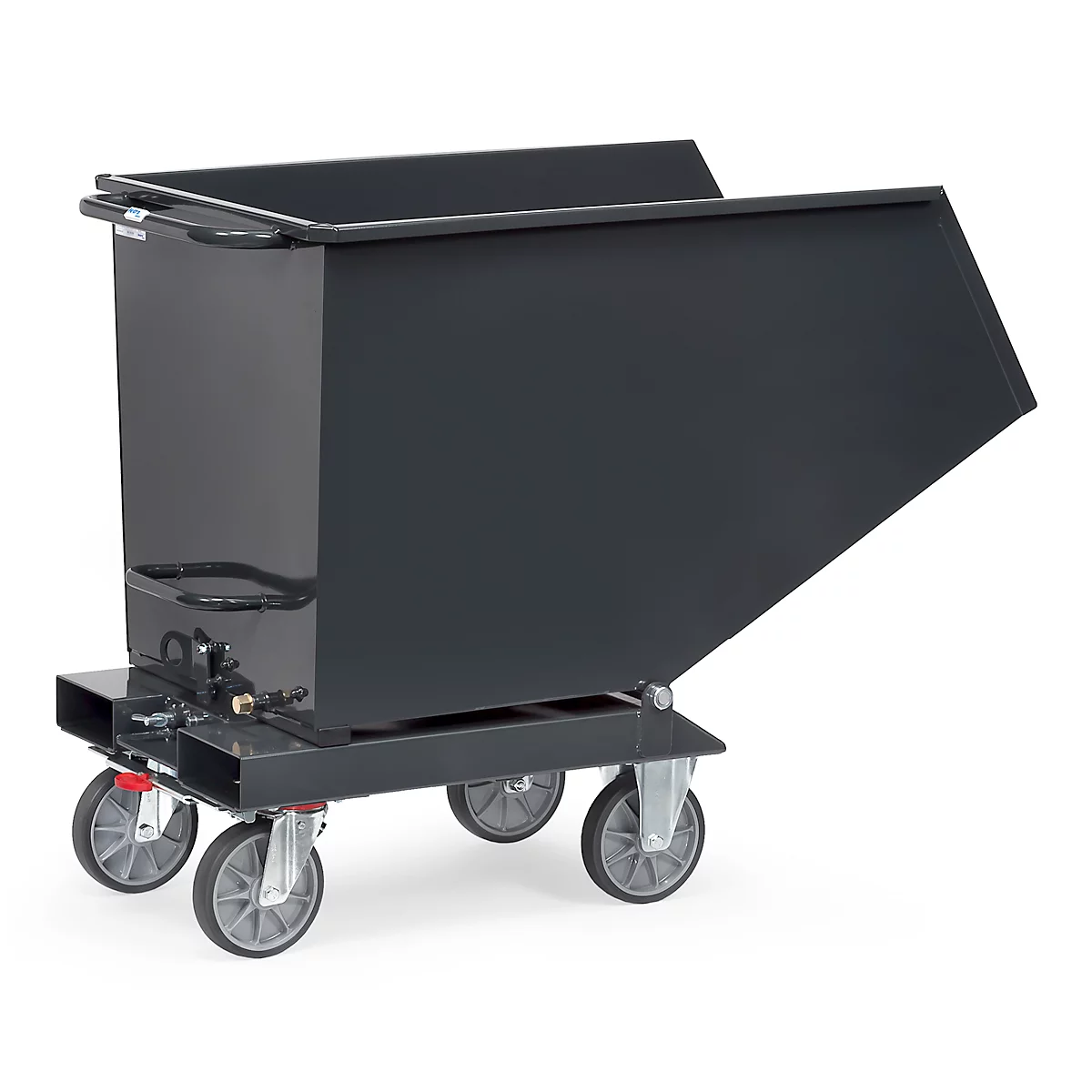

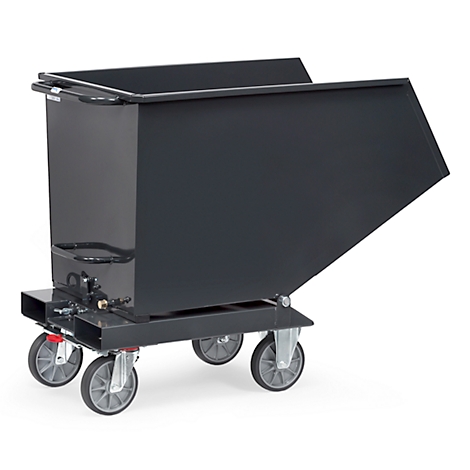

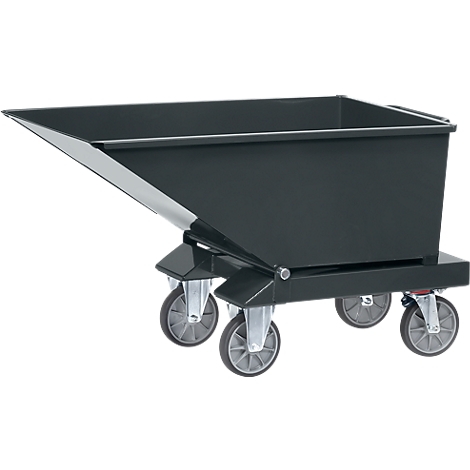

Tiltable trough made of 2 mm thick sheet steel, edge folded twice at the top, double folded over pouring edge, oil-tight welded. Base frame made of 3 mm thick edge profiles with integrated forklift pockets. Step plate and anti-tip device, tubular push handle. Powder coated, in blue (RAL 5007) or anthracite (RAL 7016). TOTALSTOP central braking system as standard on swivel castors.

Wheels: with 2 swivel castors and 2 fixed castors, TPE tyres ø 200 x W 40 mm, hubs with deep groove ball bearings.
Capacity: 600 l
Load capacity: 750 kg
Box dimensions: L 1321 x W 794 x H 735 mm
Outer dimensions: L 1458 x W 855 x H 1099 mm
Dump edge height: 843 mm
Dead weight: 95 kg

Note: Tipping process is triggered manually. For emptying with a forklift truck or for heavy loads, we recommend a tipping container or stacking tipper.

Advantages for you

Very heavy quantities of consumables and recyclables can be transported comfortably and safely with this tipping container with a load capacity of 750 kg.

Show moreShow less

Technical data

General features
Anti-slip device No
Anti-tilt No
Bulk edge height [mm] 843
Color brilliant blue RAL 5007
Cover No
Depth [mm] 713
Diameter of fixed-wheel castors (mm) 200
Diameter swivel castors [mm] 200
Equipment Central braking system
Execution tub oil-tight
Fork pocket spacing [mm] 203
Height [mm] 780
Internal dimensions fork pocket W x H [mm] 194 x 72
Load capacity [kg] 750
Material Steel
Permeable wall thickness (mm) 2
Stackable No
Substructure Wheels, castors
Surface powder-coated
Tilting process manual tilting
Tyres TPE tyres
Version without drain cock and strainer
Volume (litres) 250
Warranty [years] 10
Weight [kg] 95
Wheel/roller finish 2 swivel castors / 2 fixed castors
Width [mm] 1358

Download

ProductSafety_10138794.pdf

Schäfer Shop Quality and Service

Special features of this product

only Fr. 1’219.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Color: brilliant blue RAL 5007

Version: without drain cock and strainer

without drain cock and strainer with drain cock and sieve

show all variants

Add to basket

Delivery time: within 2 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Dump truck 4703, 600 l

Overview of the possible item variants. For more information, click on the respective variant.

Color

Version

Item			Price

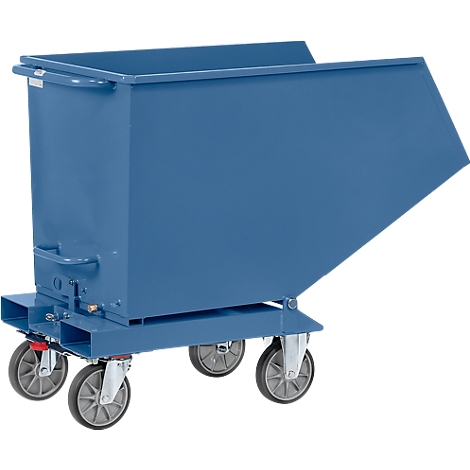

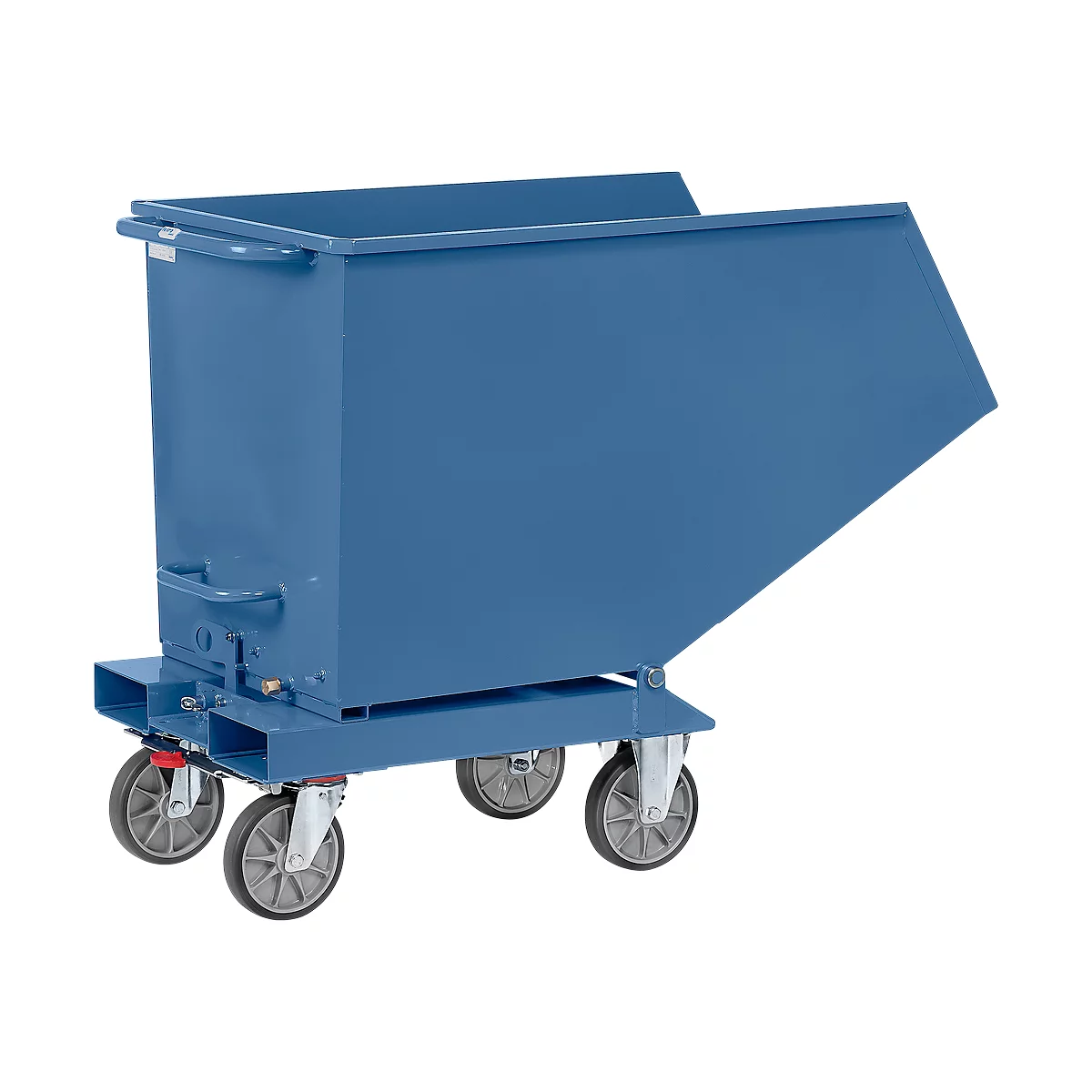

Tipper container 4703, 600 l, blue RAL 5007, without drainage tap and sieve Item number: 309076			Fr. 1’219.00 Amount + - Added times

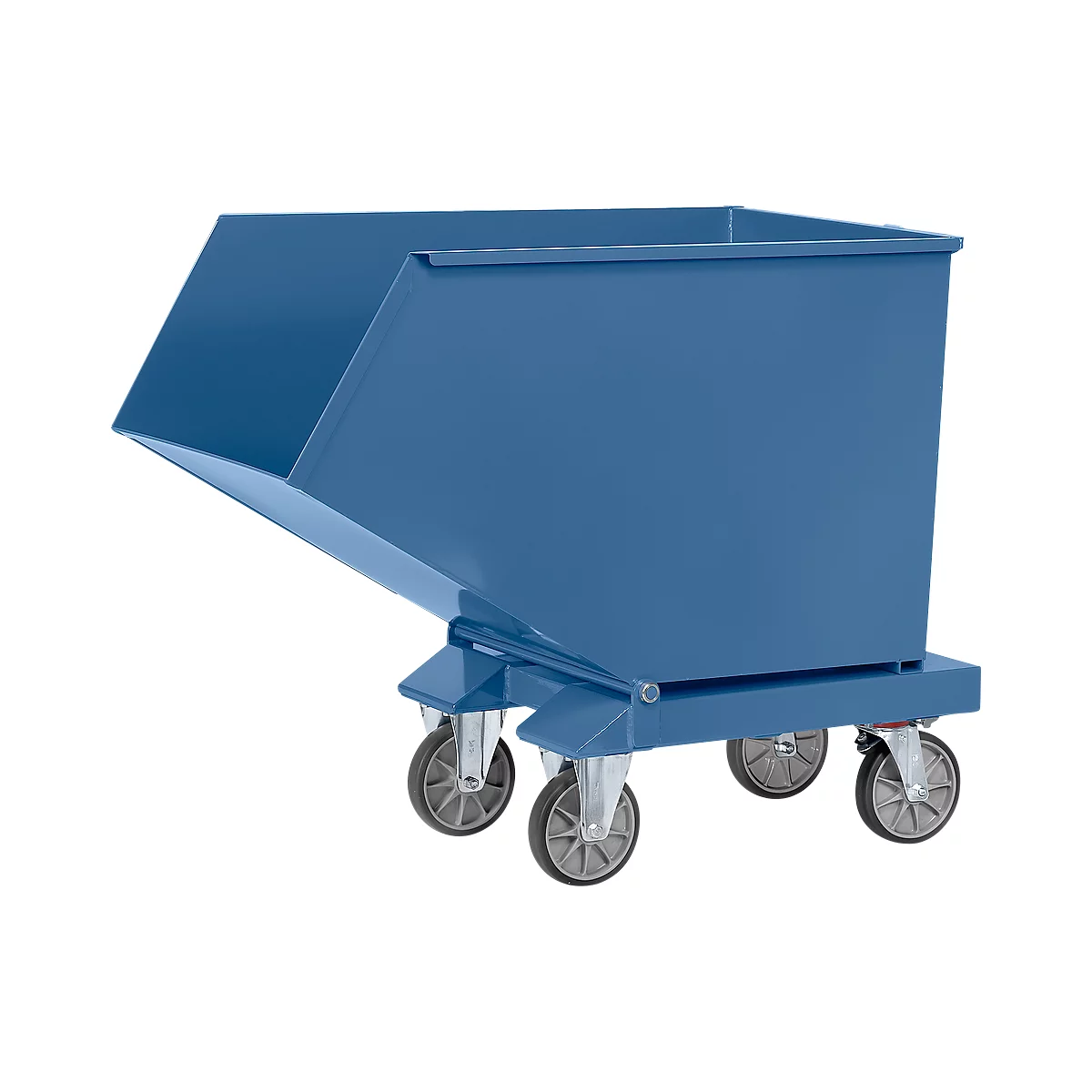

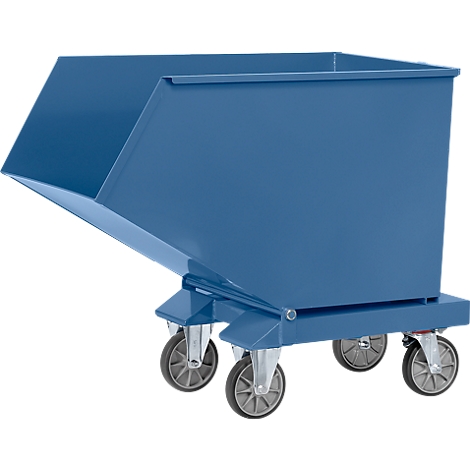

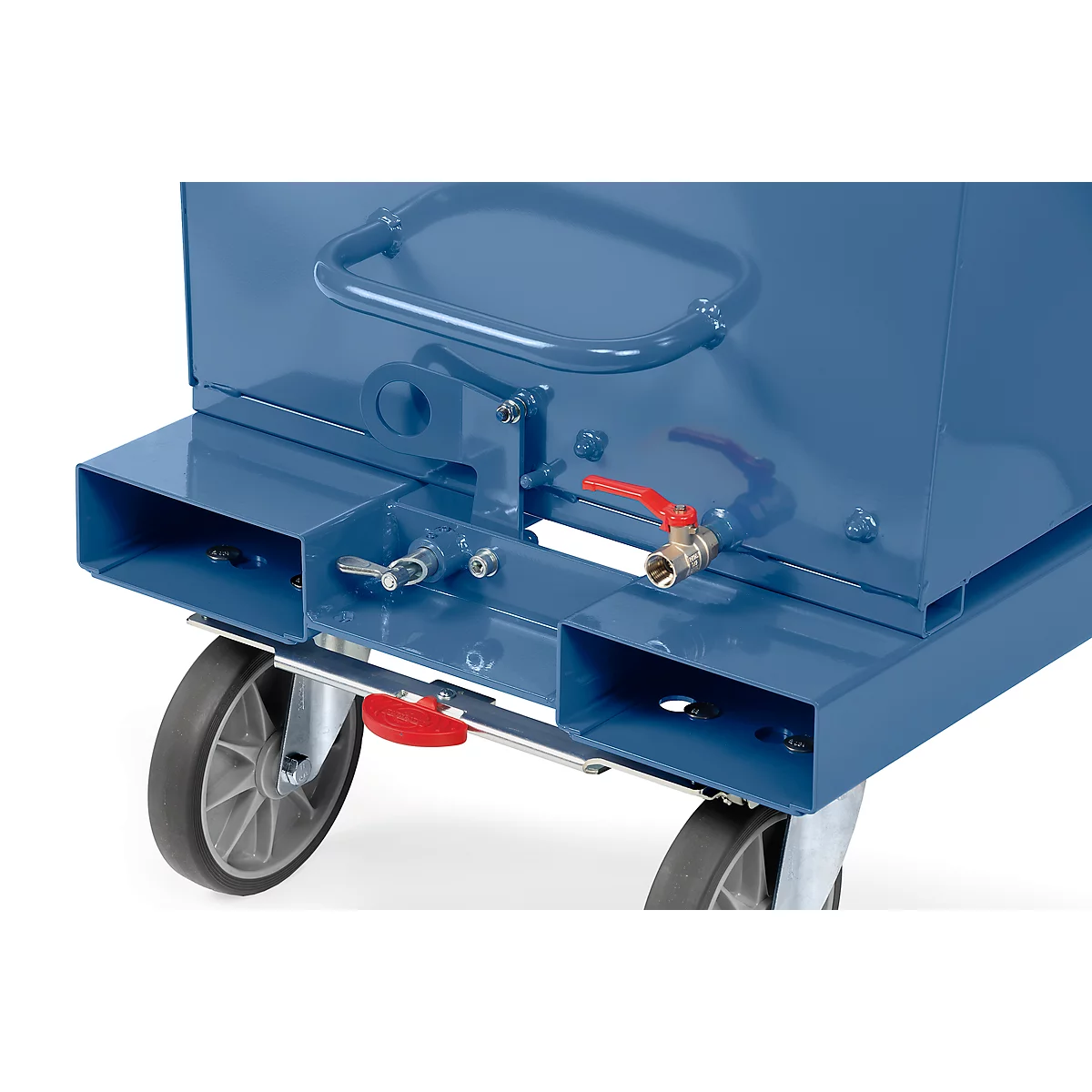

Tipper container 4703, 600 l, blue RAL 5007, with drainage tap and sieve Item number: 309077			Fr. 1’260.00 Amount + - Added times

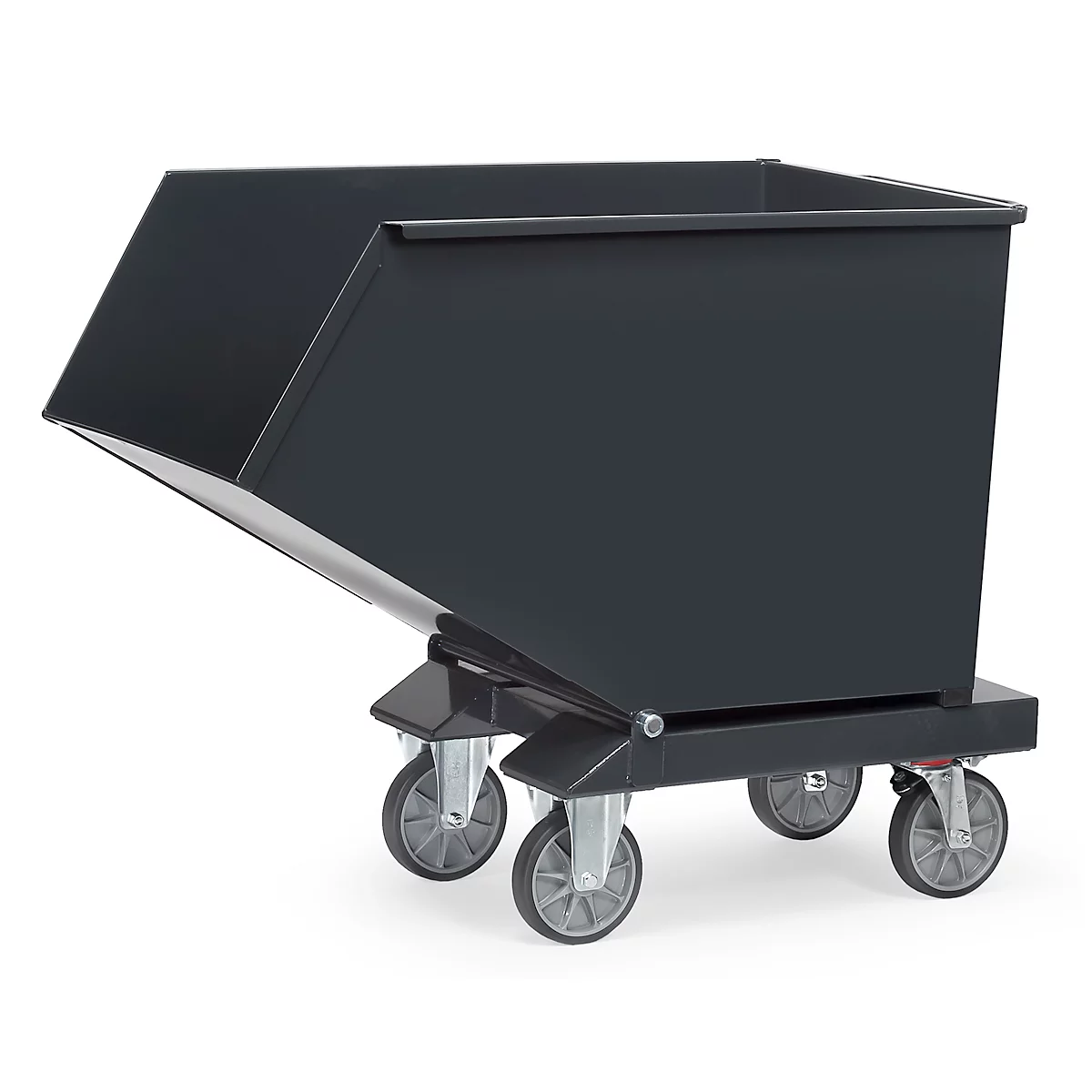

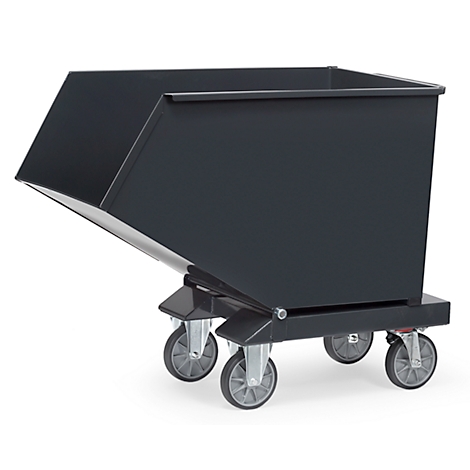

Tipper container 4703, 600 l, anthracite RAL 7016, without drainage tap and sieve Item number: 309084			Fr. 1’219.00 Amount + - Added times

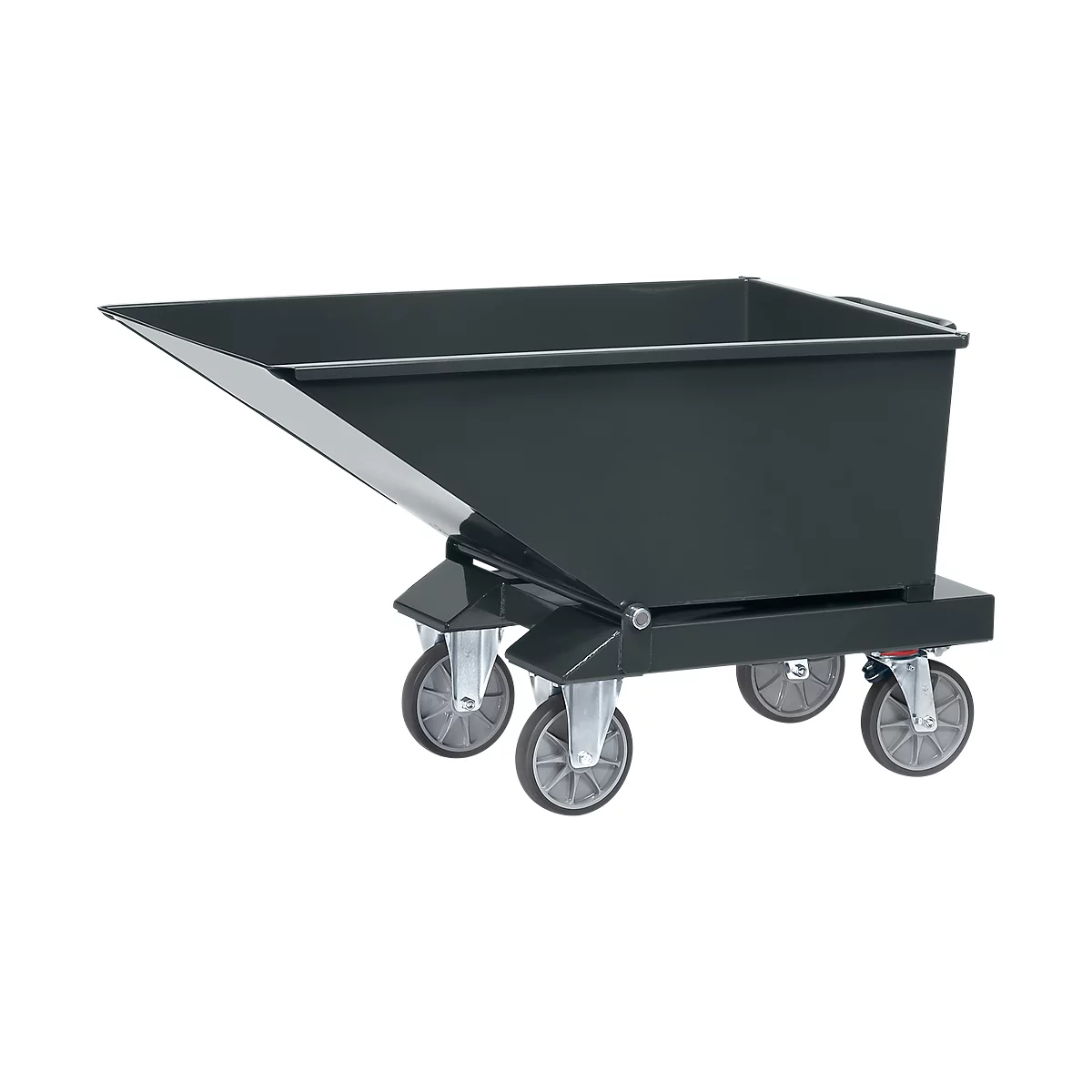

Tipper container 4703, 600 l, anthracite RAL 7016, with drainage tap and screen Item number: 309085			Fr. 1’260.00 Amount + - Added times
