Product Safety Information

Drawer cabinet, 8 drawers, W 910 x D 715 x H 1400 mm

General information

EU authorized representative E-mail address

info.de@treston.com

EU authorized representative Name

Treston Deutschland GmbH

EU authorized representative Place

Hamburg

EU authorized representative Postal code

22047

EU authorized representative Street & house number

Friedrich-Ebert-Damm 143

EU Plenipotentiary Country

Deutschland

Product safety instructions

Observe additional safety precautions for use on uneven floors to ensure stability.;Do not exceed the maximum load of 80 kg per drawer.;When using on uneven surfaces, adjust the floor levelling screws.;Observe the appropriate installation and operating instructions for safe operation.;Risk of suffocation due to improper use of the drawers due to small parts.;Risk of injury from heavy drawers falling if they are not properly closed or opened.;Risk of crushing when opening several drawers.;Ensure that the drawers are not overloaded to prevent the cabinet from tipping over.;Provide instructions for safe operation and correct closing of the drawers.;The drawers should be checked regularly to ensure that the pull-out stop is working properly.;Avoid using the drawer cabinet in areas with extreme temperature fluctuations or high humidity to prevent material damage.;Keep the drawer cabinet free of unnecessary objects that could prevent the drawers from closing properly.;Caution: Use the pull-out stop to prevent several drawers from opening at the same time.;Due to the height of the cabinet, secure the cabinet to the wall to prevent it from falling over.;Use drawer guides according to the instructions to ensure that drawers are safe and easy to use.;Regularly maintain the pull-outs and hinges to ensure safe use.;Children should not be left unattended near the cabinet.

Article numbers

154688 154689 154690 154691

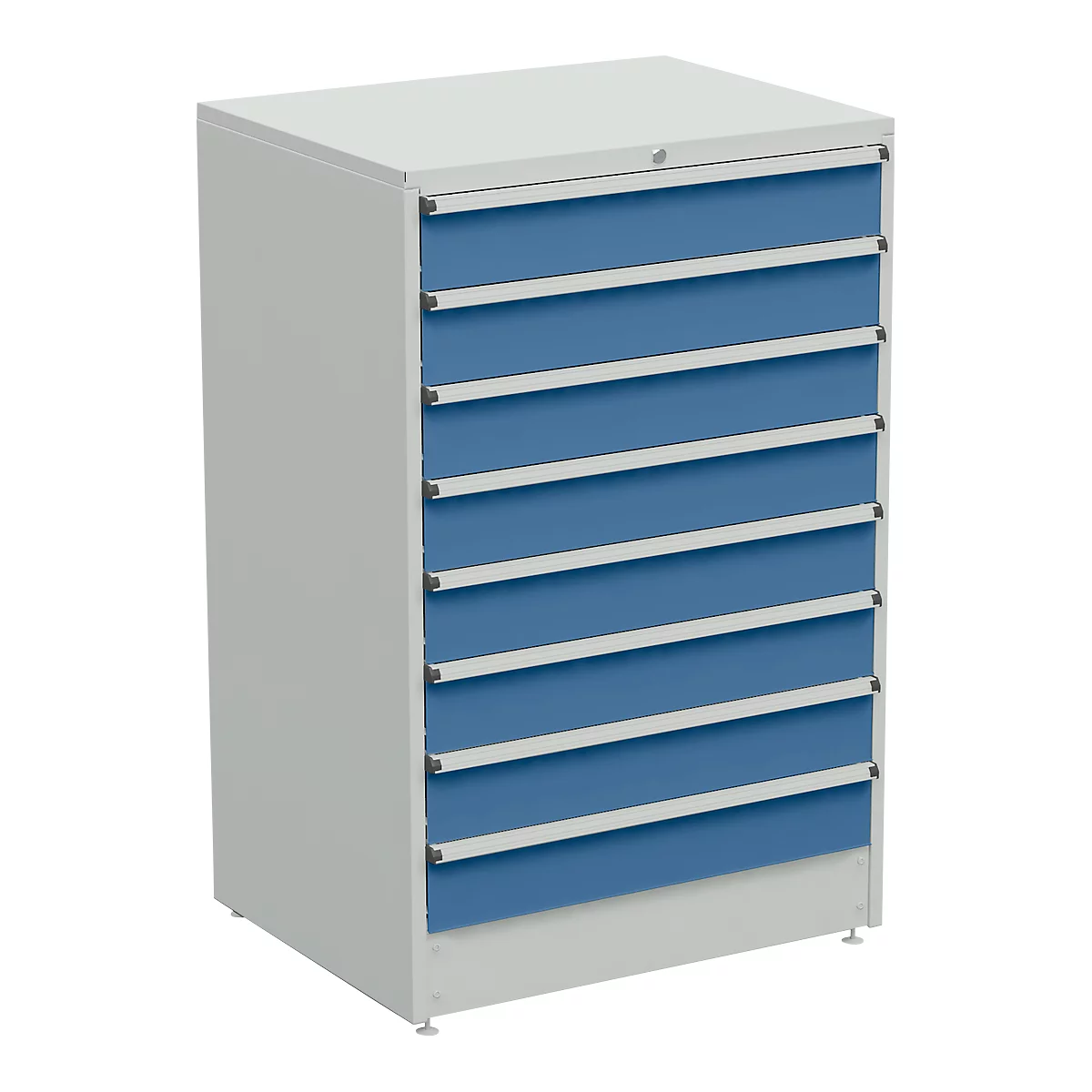

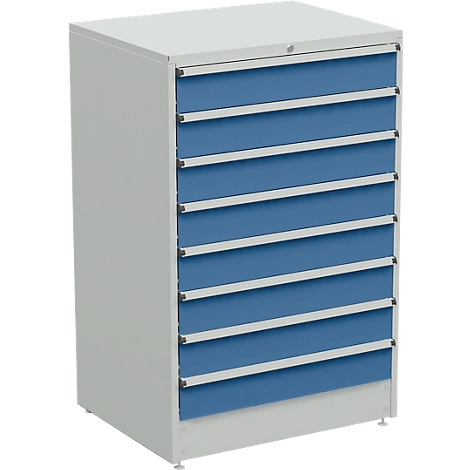

Drawer cabinet, 8 drawers, W 910 x D 715 x H 1400 mm

Name: Drawer cabinet, 8 drawers, W 910 x D 715 x H 1400 mm
Brand: Treston
SKU: 7704574
Price: 2636.55 CHF
Availability: InStock

Item number: 154691

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

for storing tools and small parts
Material: powder-coated sheet steel
Central lock
Pull-out stop prevents several drawers from opening at the same time
Drawers with ball bearings
Drawers can be pulled out 100 % (full extension) with max. load capacity of 80 kg
possible drawer heights: 75/100/150/250 mm
fixed base with floor levelling screws
Internal dimensions of drawers: 810 x 612 x 49/74/124/224 mm
Number of drawers 7, drawer heights 2 x 75, 2 x 100, 2 x 150, 1 x 250 mm
Number of drawers 8, drawer height 8 x 150 mm
Number of drawers 9, drawer height 9 x 100 mm
Number of drawers 10, drawer height 4 x 75, 2 x 100, 3 x 150, 1 x 250 mm

Advantages for you

The 715 mm deep drawer cabinet is ideal for compact storage

Show moreShow less

Technical data

General features
Body colour light grey RAL 7035
Castors No
Color light grey RAL 7035
Color of the facade brilliant blue RAL 5007
Delivery Disassembled
Depth [mm] 715
Dimensions W x D x H [mm] 910 x 715 x 1400
Drawer depth inside (mm) 612
Drawer height [mm] 8 x 150
Height [mm] 1400
Inside width of drawer (mm) 810
Load capacity drawer [kg] 80
Lockable Yes
Material body Steel
Number of drawer(s) 8
Width [mm] 910

Download

ProductSafety_10130655.pdf

Schäfer Shop Quality and Service

Special features of this product

only Fr. 2’636.55

per Pcs.

Incl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF9.60.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Drawer height [mm]: 8 x 150 mm

9 x 100 mm 2 x 75, 2 x 100, 2 x 150, 1 x 250 mm 4 x 75, 2 x 100, 3 x 150, 1 x 250 mm 8 x 150 mm

show all variants

Add to basket

Delivery time: within 4 weeks

Secure and fast payment

Variants

Overview of variants - Drawer cabinet, 910 mm wide

Overview of the possible item variants. For more information, click on the respective variant.

Drawer height [mm]

Item			Price

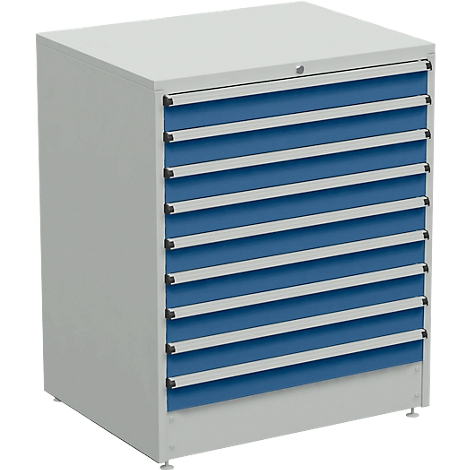

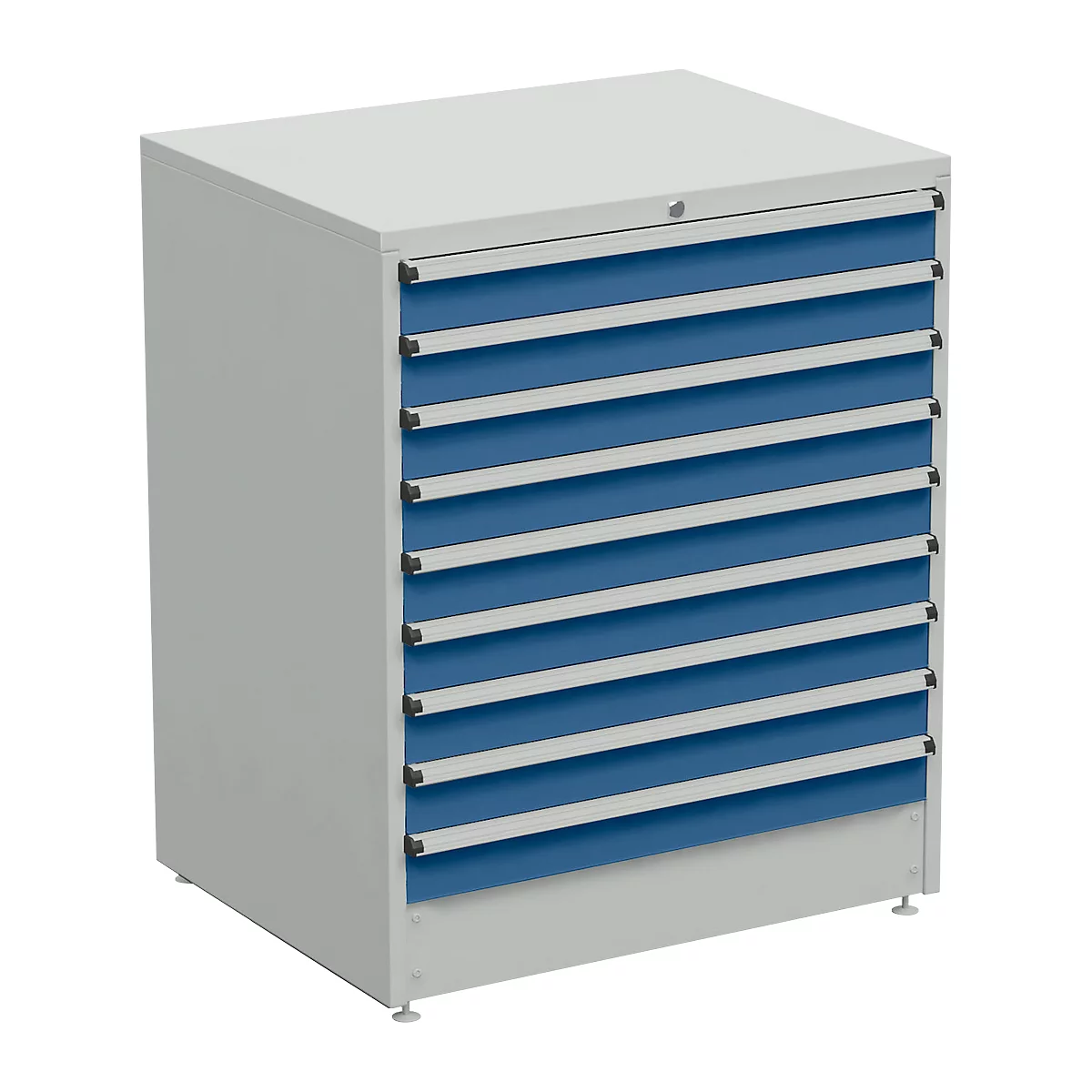

Drawer cabinet, 9 drawers, W 910 x D 715 x H 1100 mm Item number: 154688			Fr. 2’760.85 Amount + - Added times

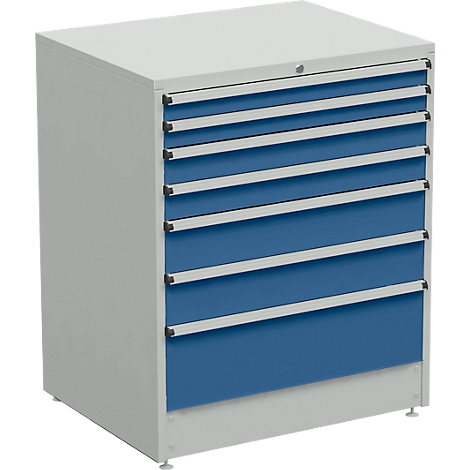

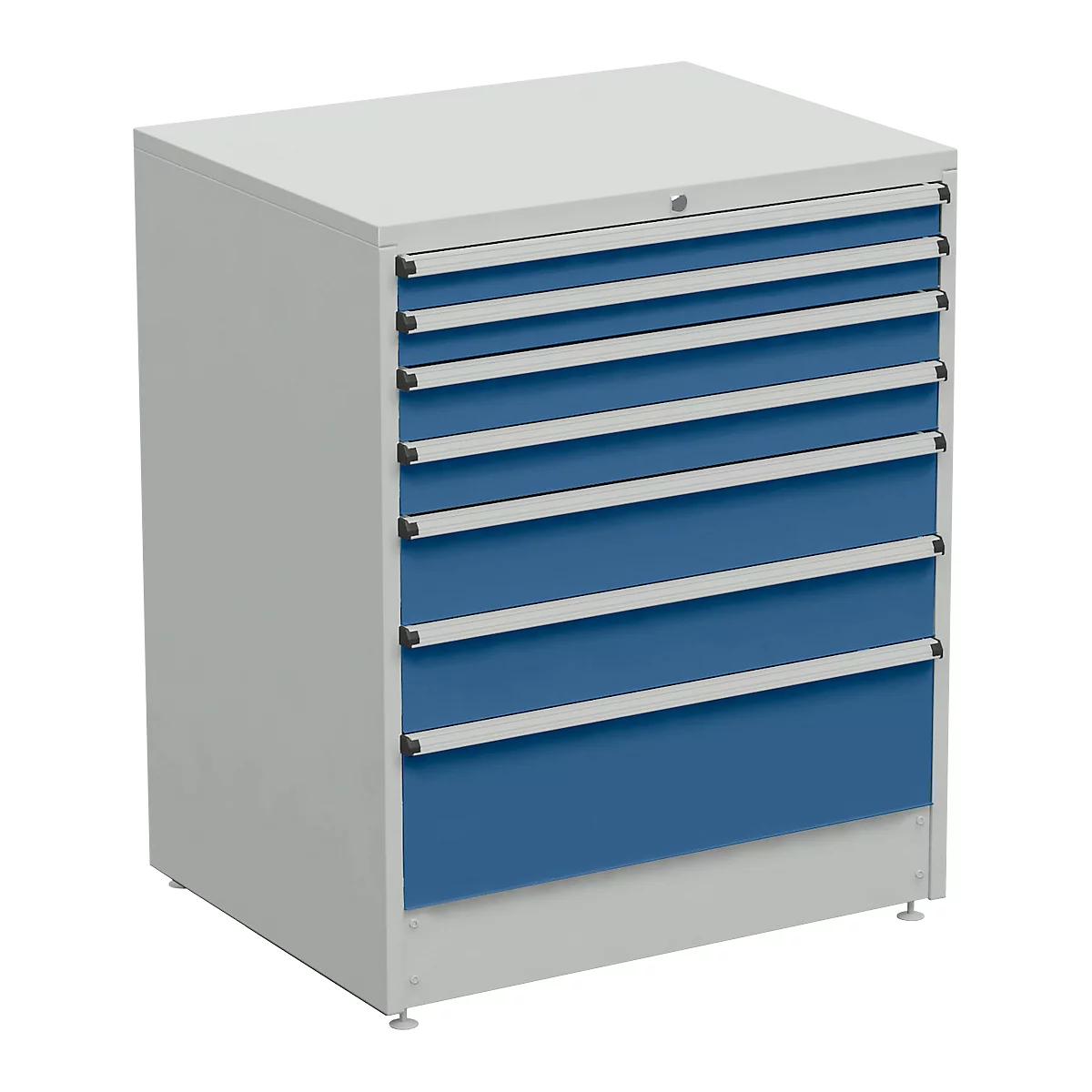

Drawer cabinet, 7 drawers, W 910 x D 715 x H 1100 mm Item number: 154689			Fr. 2’436.55 Amount + - Added times

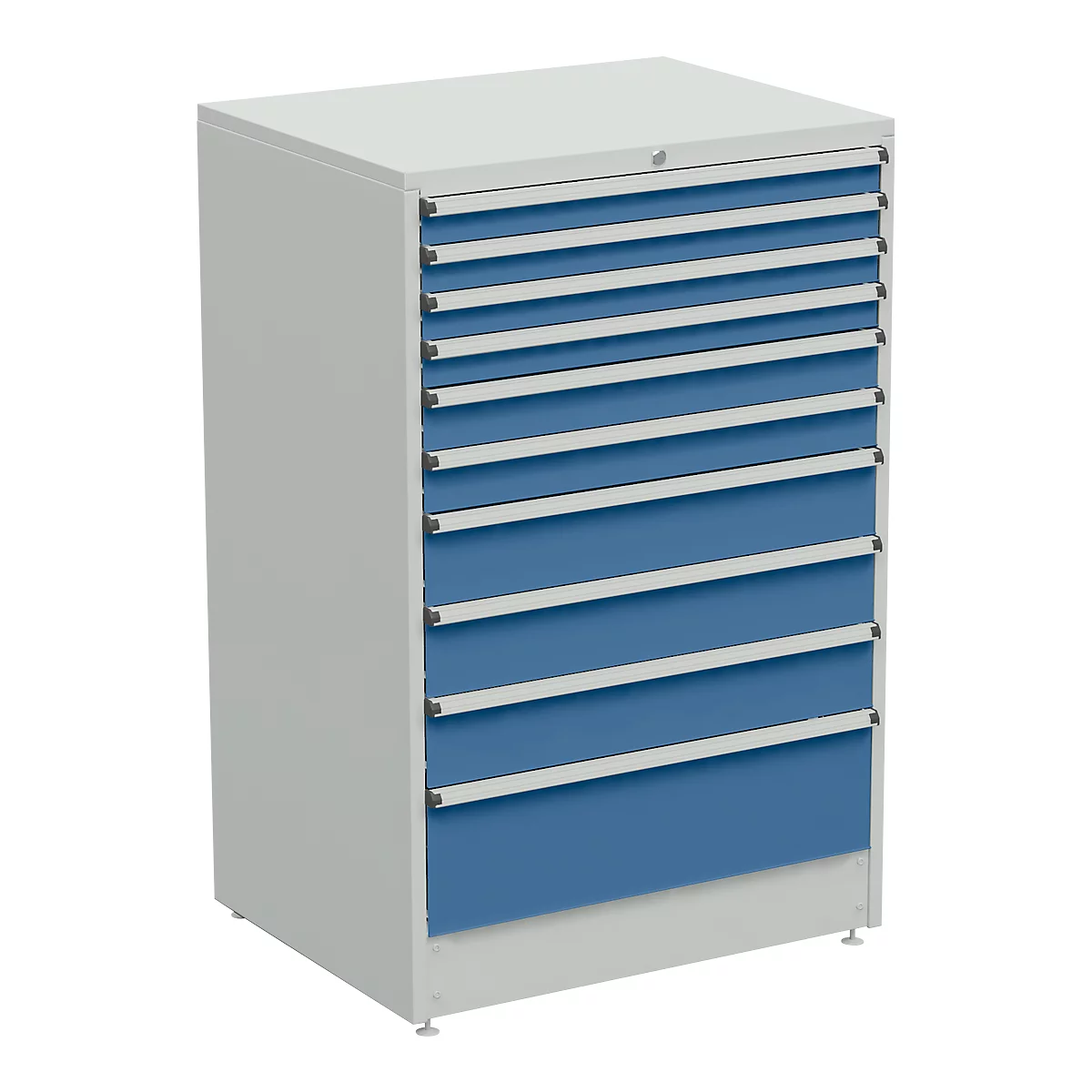

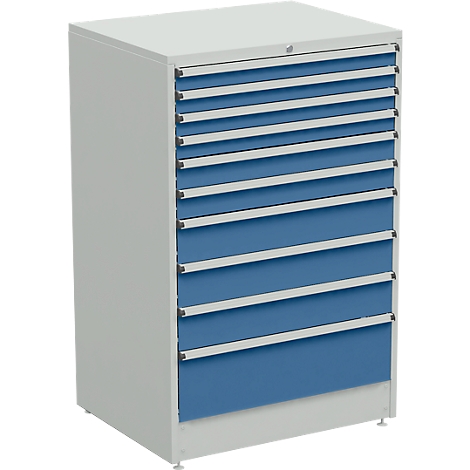

Drawer cabinet, 10 drawers, W 910 x D 715 x H 1400 mm Item number: 154690			Fr. 3’037.60 Amount + - Added times
Drawer cabinet, 8 drawers, W 910 x D 715 x H 1400 mm Item number: 154691			Fr. 2’636.55 Amount + - Added times
