Product Safety Information

TL 1000B compact scissor lift table, 1000 kg load capacity

General information

EU authorized representative E-mail address

info@edmolift.de

EU authorized representative Name

EdmoLift Hebetechnik GmbH

EU authorized representative Place

Wunstorf

EU authorized representative Postal code

31515

EU authorized representative Street & house number

Hohenfelder Str. 5a

EU Plenipotentiary Country

Deutschland

Product safety instructions

Ensure that the safety frame is correctly adjusted to prevent injuries.;Avoid overloading the lift table beyond the maximum load capacity of 3000 kg.;Maintain safety valves regularly to prevent failure.;Keep the working area around the lift table free of obstructions.;Wear suitable personal protective equipment when operating the lift table.;Activate the emergency stop button in the event of an emergency and check its function regularly.;Regular maintenance and inspection of the lift table required.;Risk of suffocation due to improper use or tampering with the safety devices.;Risk of mechanical injury from moving parts, especially when lifting and lowering.;Use safety valves and observe overload protection to avoid injuries.;Operation only by qualified personnel in accordance with the operating instructions.;Activate mechanical locks before maintenance work.;Set the lowering speed before use to avoid sudden lowering.;Check the platform and frame for stability before use.;Do not overload the hydraulic cylinder, do not exceed the maximum load capacity of 1000 kg.;Note the maximum load capacity: 1000 kg and 3000 kg.

Article numbers

74075 74076 74077 74078 74079

TL 1000B compact scissor lift table, 1000 kg load capacity

Item number: 74075

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

The compact lift table is a classic among the lift tables. It convinces by its proven quality in shift operation. The ergonomic compact lift table complies with EN 1570-1 in its design and has been continuously developed for 40 years! The table is equipped with safety valves as well as mechanical locks for service and maintenance work. The components are laser cut and robot welded, the scissors are made of rigid square tube. The lifting table is equipped with a circumferential safety rail incl. acknowledgement function, maintenance-free bearings, a PLC control, a mechanical pipe break valve in the cylinder, an electromagnetic pipe break valve on the cylinder, maintenance supports as well as overpressure and constant flow valves. The lowering speed is adjustable, and the hydraulic cylinders have chrome-plated piston rods. The control element for lifting and lowering has a dead man's function, an "Up" - "Down" button and an emergency stop button with locking function.
Special designs, lift tables with double or tandem scissors as well as extensive accessories (wheel underframe, lift truck device, round turntables) are available on request!

Maintenance-free slide bearings in the scissors
Overload protection
Adjustable, highly sensitive protective frame on all four platform sides
Colour: platform and base frame in blue (RAL 5002), scissors or moving parts in signal orange (RAL 2010)
Electronic control unit UC60 in plug-and-play version
control voltage 24 VDC
protection class: IP 65
cable length for control unit: 3 m

Show moreShow less

Technical data

General features
Cable length [m] 3
Color blue; orange; grey
Control PLC
Control voltage [V] 24
Delivery Partially assembled
DIN EN 1570
Double shears No
Final height (mm) 1000
Hydraulic cylinder Yes
Length [mm] 1300
Lift drive electrical
Load capacity [kg] 1000
Material Steel
Mobile No
Model TL 1000B
Overall height [mm] 180
Pipe rupture valve mechanical/electromagnetic
Platform length(mm) 1300
Platform width [mm] 800
Power (W) 750
Protection class IP 65
Stroke range [mm] 180 - 1000
Stroke time [s] 15
Table top L x W [mm] 1300 x 800
Total length (mm) 1300
Total width [mm] 800
Weight [kg] 161
Width [mm] 800

Download

ProductSafety_10116304.pdf

Schäfer Shop Quality and Service

Special features of this product

only Fr. 4’411.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Model: TL 1000B

TL 1000B TL 1000XB TL 2000 TL 2000B TL 3000

Table top L x W [mm]: 1300 x 800 mm

1300 x 800 mm 1300 x 1000 mm

show all variants

Add to basket

Delivery time: approx. 7 weeks

Purchase on account available
Secure and fast payment

Variants

Overview of variants - Compact lift tables Edmolift TL

Overview of the possible item variants. For more information, click on the respective variant.

Model

Table top L x W [mm]

Item			Price
TL 1000B compact scissor lift table, 1000 kg load capacity Item number: 74075			Fr. 4’411.00 Amount + - Added times

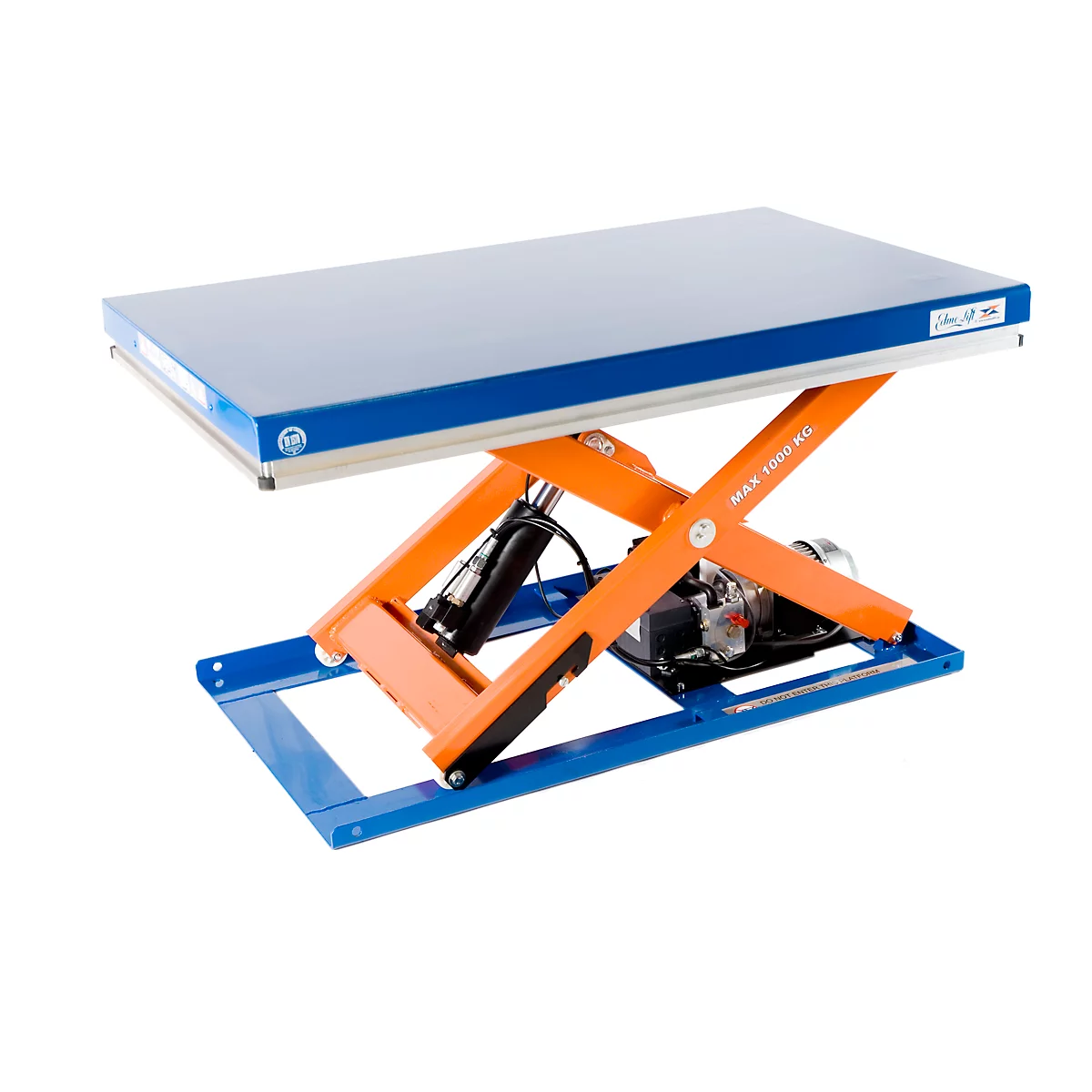

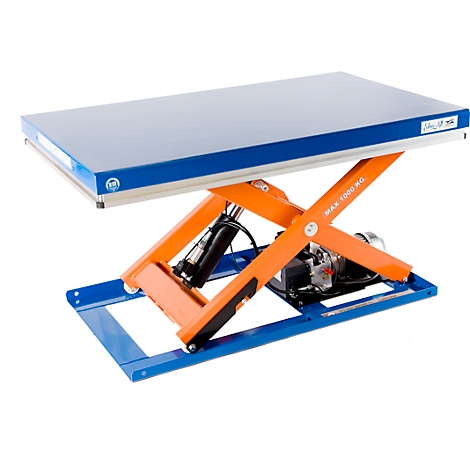

TL 1000XB compact scissor lift table, 1000 kg load capacity Item number: 74076			Fr. 4’874.00 Amount + - Added times

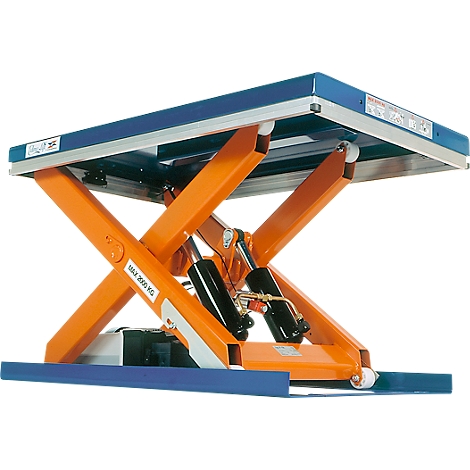

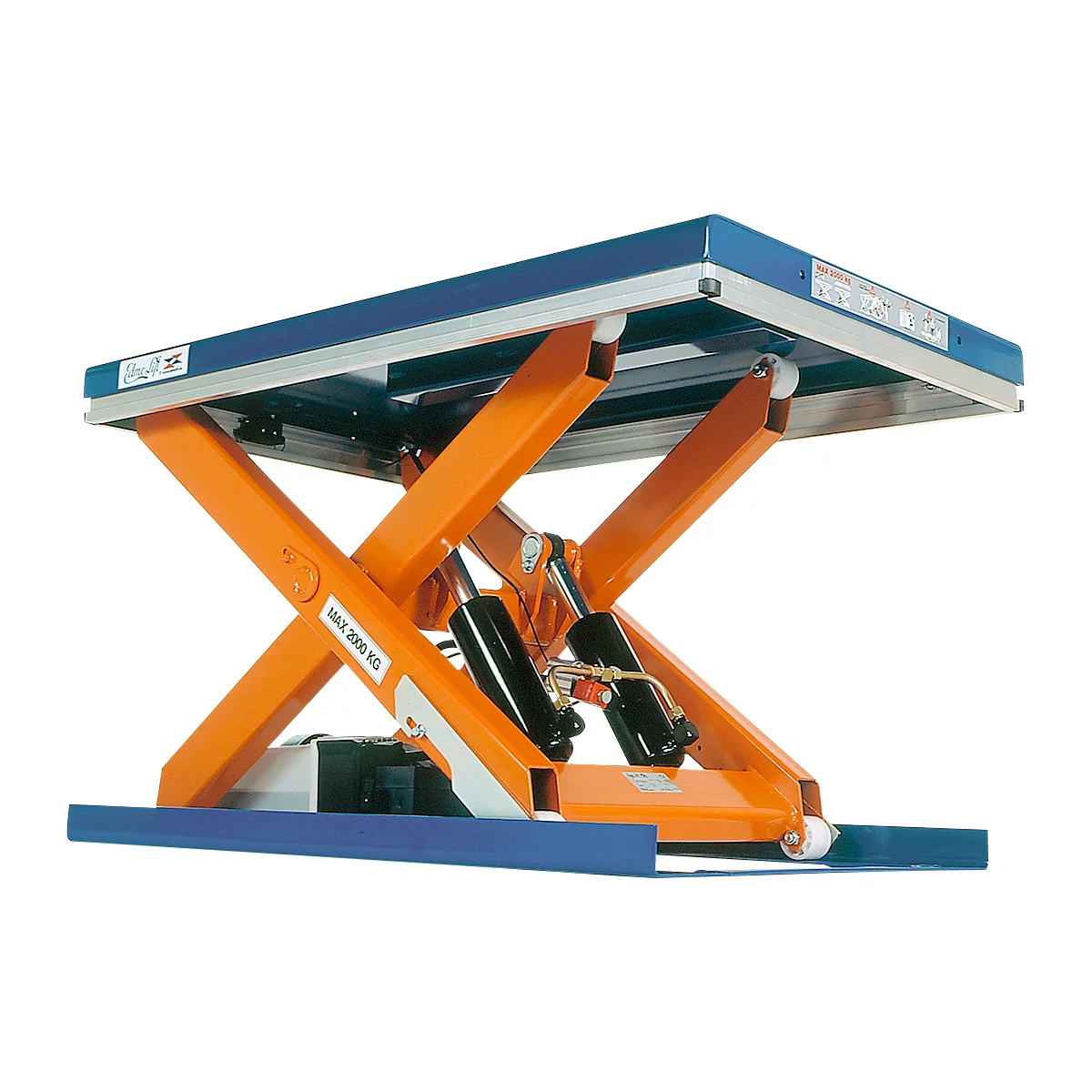

TL 2000 compact scissor lift table, load capacity 2000 kg Item number: 74077			Fr. 5’795.00 Amount + - Added times

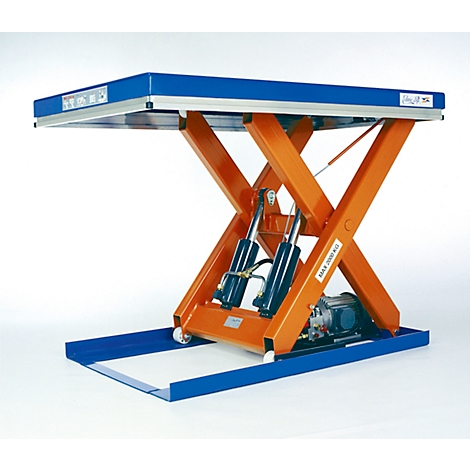

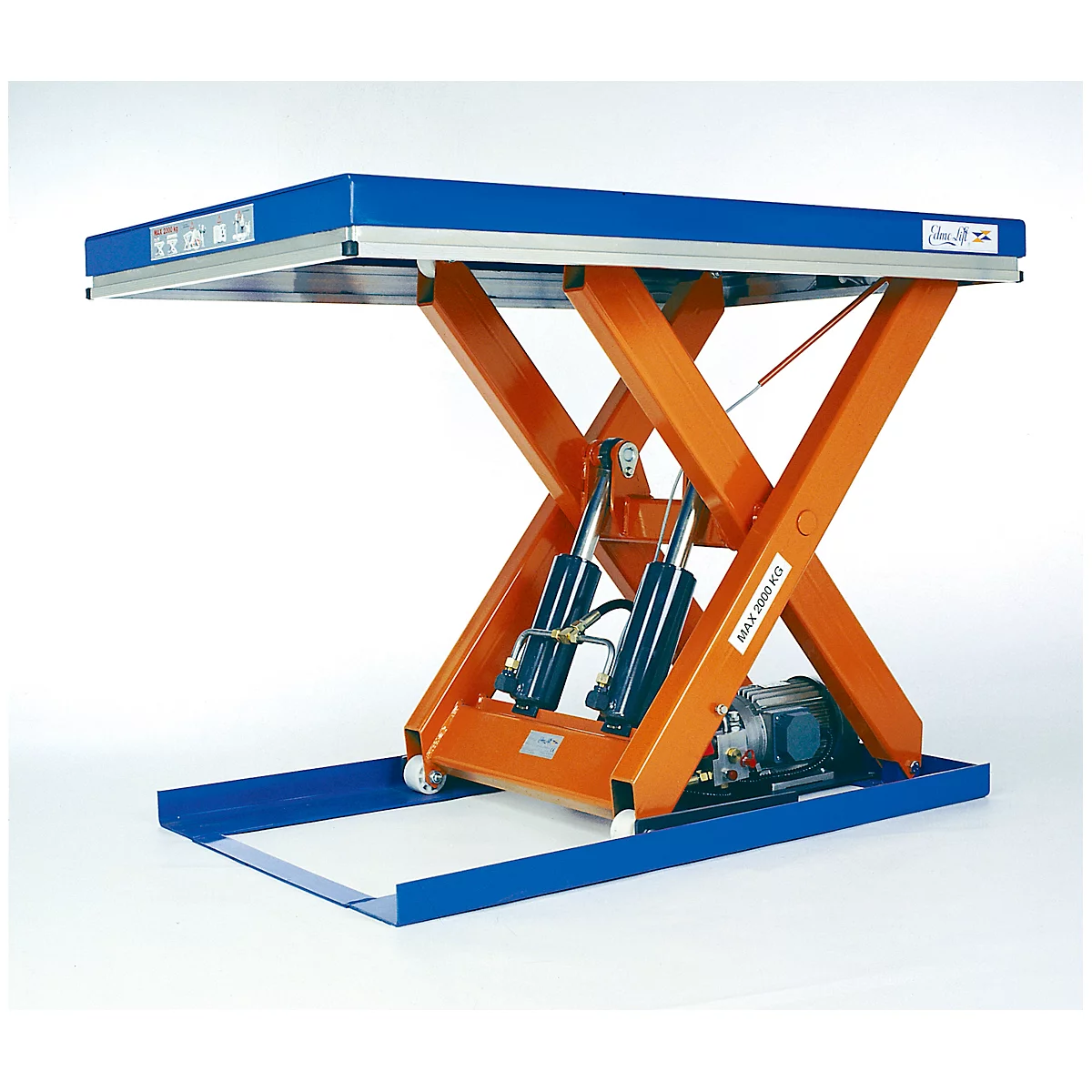

Compact scissor lift table TL 2000B, load capacity 2000 kg Item number: 74078			Fr. 5’704.00 Amount + - Added times

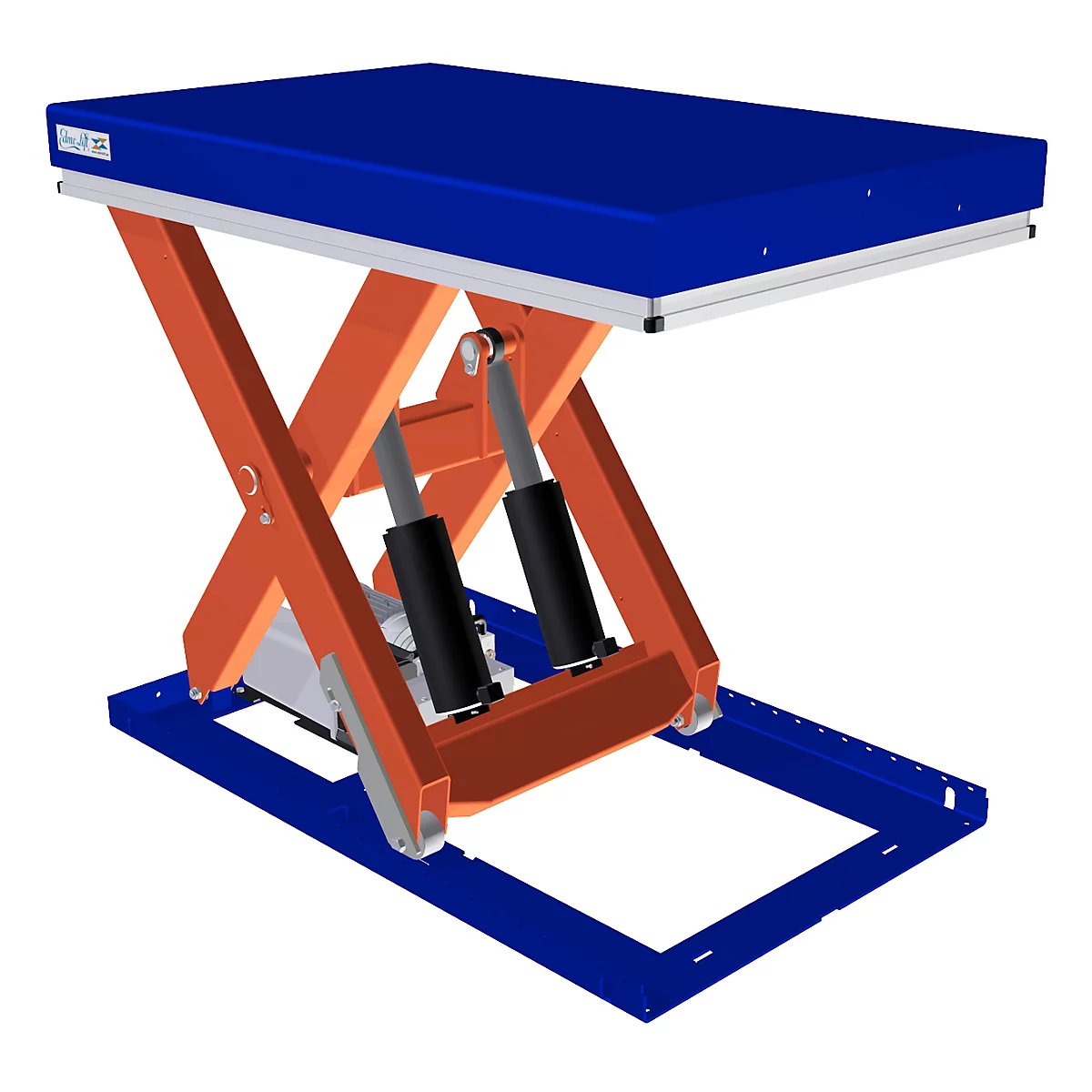

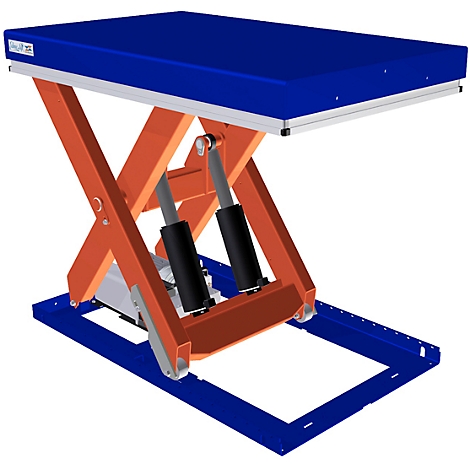

TL 3000 Compact Scissor Lift Table, load capacity 3000 kg Item number: 74079			Fr. 6’827.00 Amount + - Added times
