Product Safety Information

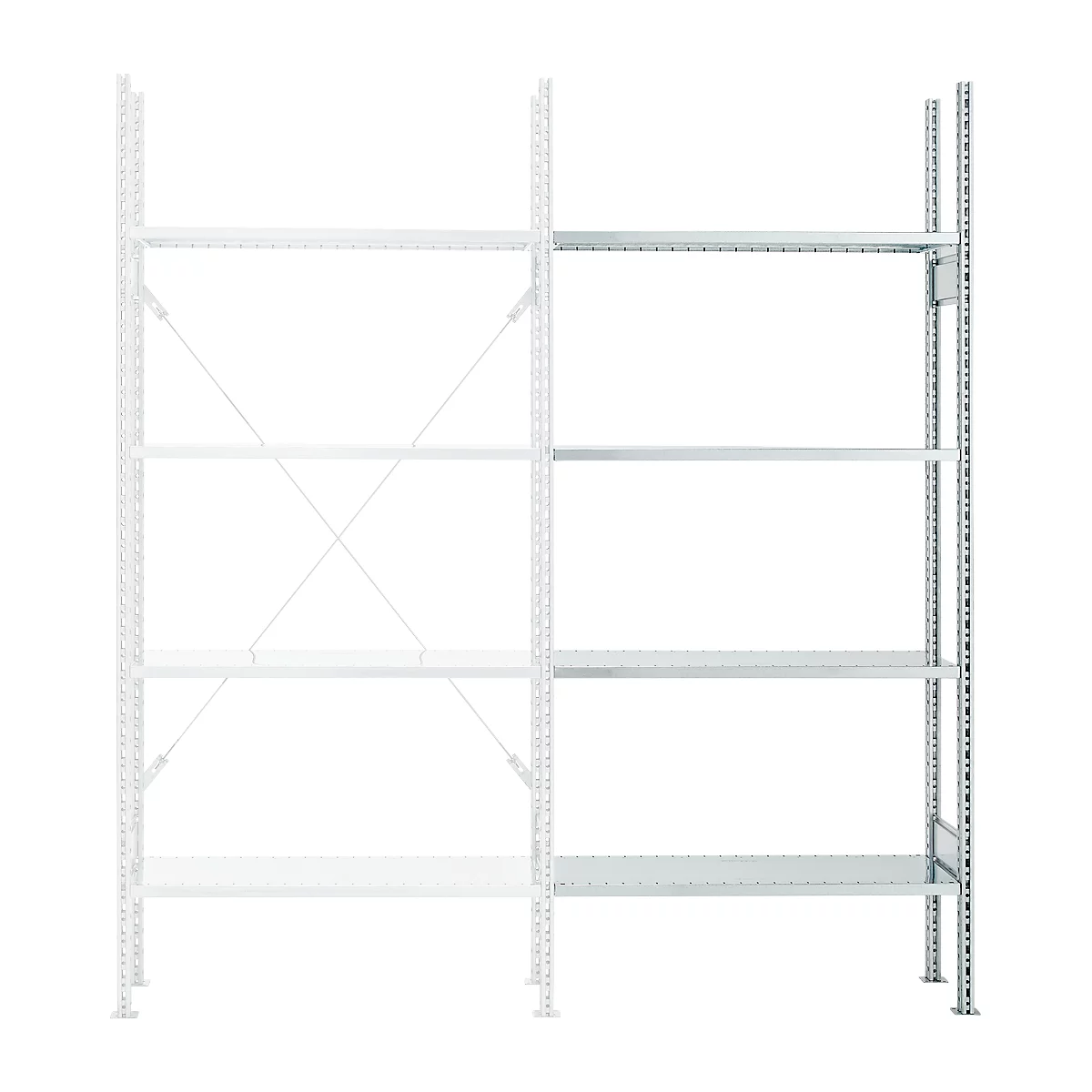

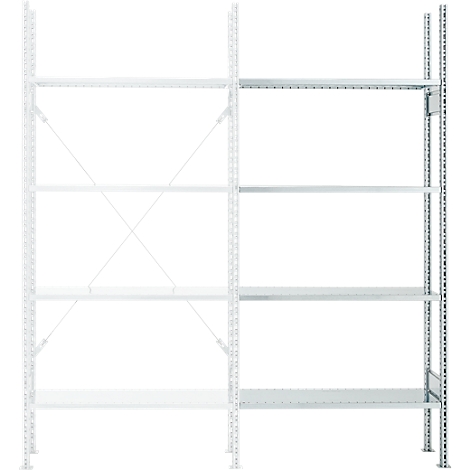

Additional shelving, 4 shelves, H 2278 x W 1055 x D 300 mm, galvanized

General information

Product safety instructions

Maximum load capacity per shelf: up to D 600 mm = 100 kg, up to D 800 mm = 200 kg; do not exceed this.;Do not load the shelf beyond the maximum permissible load to avoid the risk of damage or injury.;Wear suitable personal protective equipment when assembling or disassembling the shelving.;Designed for commercial use, should therefore be used with caution in consumer environments.;Ensure that the load is evenly distributed to avoid overloading.;Improper use can result in serious injuries.;The product is not intended for use by children.;All safety instructions for installation, use and maintenance must be followed. Additional safety checks and measures are required for use in commercial environments.;Use only for the intended purpose; do not attach any other loads or objects that could impair stability.;Safety instructions in the respective national language must be enclosed.

Article numbers

31140 31141 31142 31143 31144

Additional shelving, 4 shelves, H 2278 x W 1055 x D 300 mm, galvanized

Item number: 31140

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

Economical storage with an individual concept
Shelving construction for ground level construction. The galvanised frames and the painted or galvanised shelves, adjustable in 53 mm increments, are available in various load capacities. With cross bracing, bay loads of up to 1500 kg are possible. The large range of accessories also allows the shelves to be individually equipped.

Frame: galvanised
4 shelves, galvanised
Height: 2278 mm

max. load capacity per shelf, (with evenly distributed load)

up to D 600 mm = 100 kg
for D 800 mm = 200 kg

Advantages for you

Enough space for all your work items: With a width of 1025 mm and a height of 2278 mm, everything finds its place.

With 4 shelves you can ideally organise the storage of your work equipment and tools

Show moreShow less

Technical data

General features
Compartment load (kg) 100
Dimensions: W x D (mm) 1025 x 300
GS-approved Yes
Location Stock
Material Steel, galvanised
Max. Field load [kg] 1500
Number of floors [pcs.] 4
Number of shelves [pcs.] 4
Number of stands [pcs.] 1
Shelf load capacity [kg] 100
Shelf type extension rack
Shelving system R 3000
Surface galvanised
Colors
Color silver
Dimensions
Clear width [mm] 994
Depth of upright profile [mm] 60
Depth [mm] 300
Height adjustable at a distance of (mm) 53
Height [mm] 2278
Width of upright profile [mm] 31
Width [mm] 1025

Download

ProductSafety_10132627.pdf

Schäfer Shop Quality and Service

Special features of this product

only Fr. 184.00

per Pcs.

excl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF 8.90.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Depth [mm]: 300 mm

300 mm 400 mm 500 mm 600 mm 800 mm

show all variants

Add to basket

Delivery time: within 4 weeks

Purchase on account available
Secure and fast payment

Often bought together

Base shelf, 4 shelves, H 2278 x W 1055 x D 300 mm,...

only Fr. 282.00 from Fr. 282.00
per Pcs.

Variants

Overview of variants - boltless shelving system R 3000, add-on bay, W 1345 mm, 4 shelves galvanised

Overview of the possible item variants. For more information, click on the respective variant.

Depth [mm]

Item			Price
Additional shelving, 4 shelves, H 2278 x W 1055 x D 300 mm, galvanized Item number: 31140			Fr. 184.00 Amount + - Added times
Additional shelving, 4 shelves, H 2278 x W 1055 x D 400 mm, galvanized Item number: 31141			Fr. 235.00 Fr. 188.00 Amount + - Added times
Additional shelving, 4 shelves, H 2278 x W 1055 x D 500 mm, galvanized Item number: 31142			Fr. 274.00 Amount + - Added times

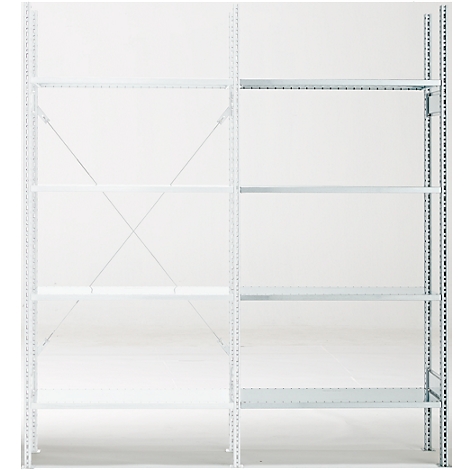

Additional shelving, 4 shelves, H 2278 x W 1055 x D 600 mm, galvanized Item number: 31143			Fr. 295.00 Fr. 236.00 Amount + - Added times

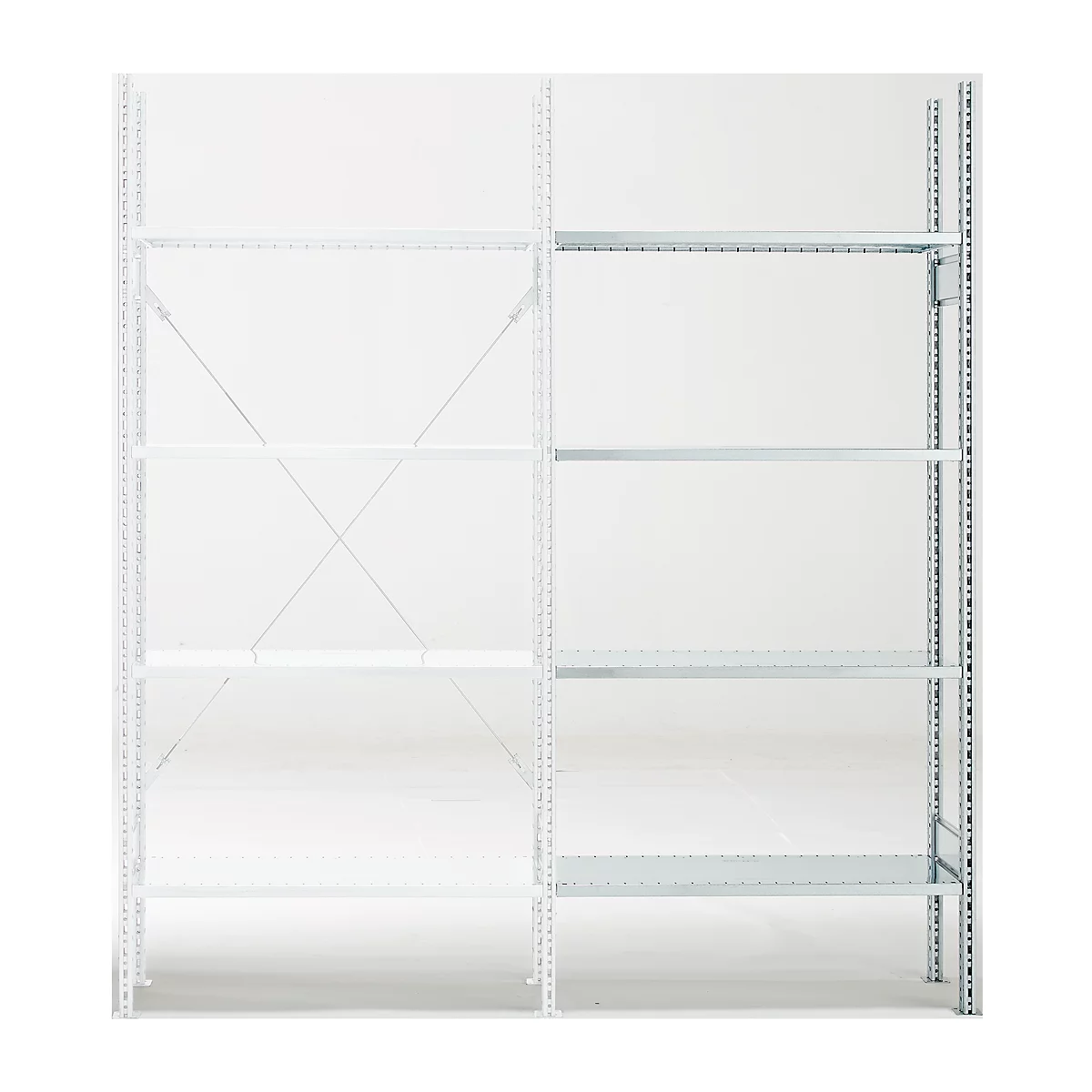

Additional shelving, 4 shelves, H 2278 x W 1055 x D 800 mm, galvanized Item number: 31144			Fr. 366.00 Fr. 293.00 Amount + - Added times
