Product Safety Information

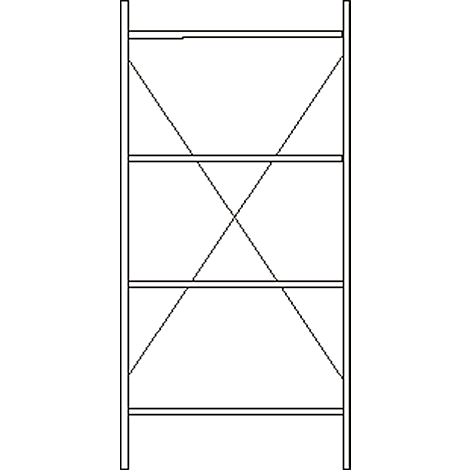

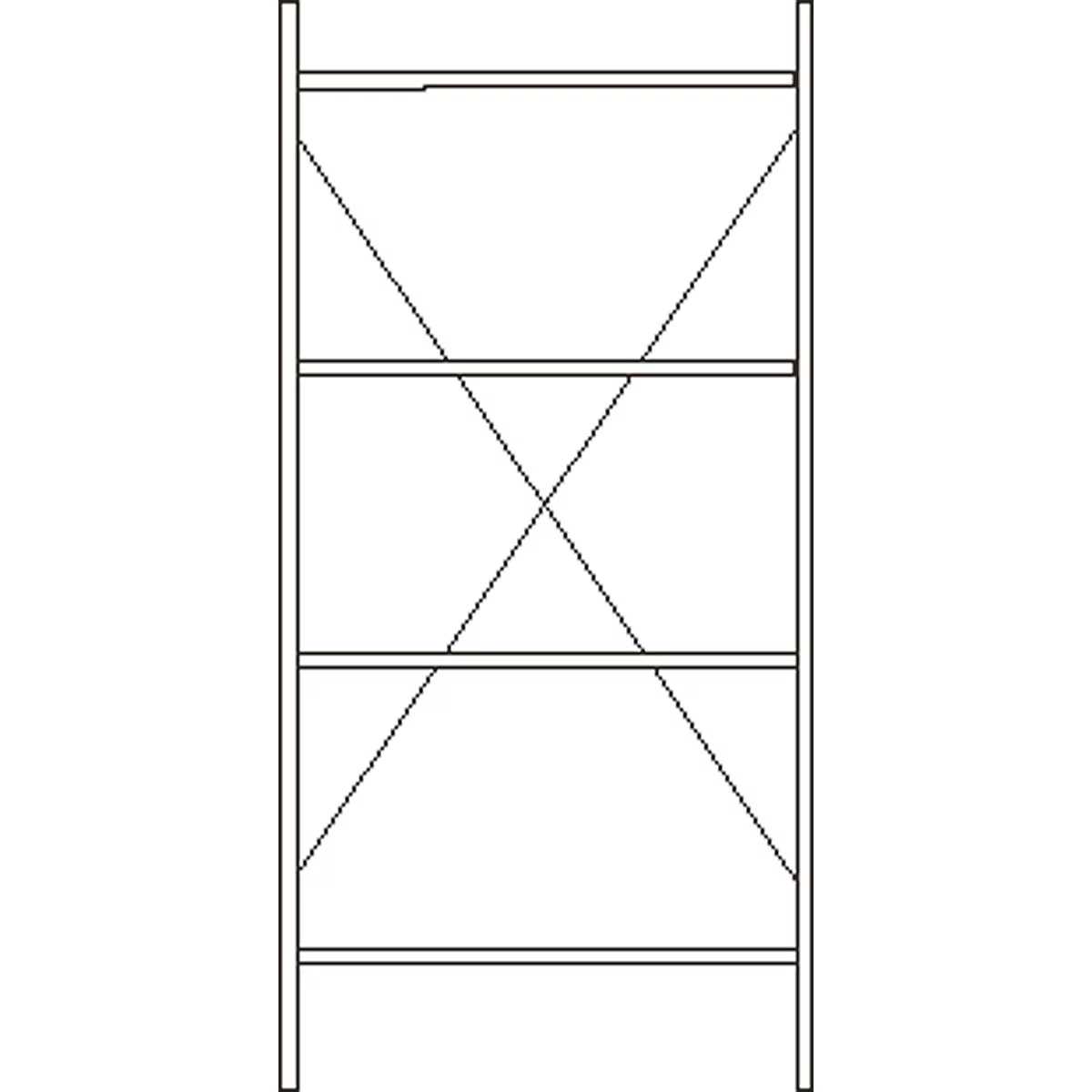

Base shelf, 4 shelves, H 2278 x W 1055 x D 300 mm, lacquered

General information

Product safety instructions

Observe maximum load capacity per shelf: up to D 600 mm = 100 kg, up to D 800 mm = 200 kg, with even load distribution.;Ensure that the shelf stands on a stable and level surface and is securely fastened to the wall to prevent it from tipping or falling over.;During installation and use, make sure the surface is stable and the environment is clean and dry. Follow the enclosed installation instructions carefully.;Take protective measures to avoid injuries from sharp edges and to protect small children from possible dangers.;Take particular care when handling heavy loads to avoid back injuries.;Keep small children away from the shelf to minimise the risk of injury.;Carry out regular inspections for damage and stability of the shelving to detect wear.;Avoid fluctuations in the load and ensure that the shelf is not loaded beyond the maximum load capacity.;Check the shelf regularly after use and fit child safety locks if necessary.

Article numbers

31145 31146 31147 31148 31149

Base shelf, 4 shelves, H 2278 x W 1055 x D 300 mm, lacquered

Item number: 31145

Click on image for larger view Click on image for larger view

360° view

Show moreShow less

Product description

Economical storage with an individual concept
Shelf construction for ground level construction. The galvanised frames and the painted or galvanised shelves, adjustable in 53 mm increments, are available in various load capacities. With cross bracing, bay loads of up to 1500 kg are possible. The large range of accessories also allows the shelves to be individually equipped.

Frame: galvanised
4 shelves, lacquered
Height: 2278 mm

Max. load capacity per shelf, (with evenly distributed load)

up to D 600 mm = 100 kg
for D 800 mm = 200 kg

Advantages for you

With 1055 mm width and 2278 mm height, the stretch shelf offers sufficient storage space for your work materials

4 shelves divide the storage space for organised filing

Show moreShow less

Technical data

General features
Compartment load (kg) 100
Dimensions: W x D (mm) 1055 x 300
GS-approved Yes
Location Stock
Material Steel, lacquered
Max. Field load [kg] 1500
Number of floors [pcs.] 4
Number of shelves [pcs.] 4
Number of stands [pcs.] 2
Shelf load capacity [kg] 100
Shelf type Basic rack
Shelving system R 3000
Surface galvanised
Surface shelf varnished
Colors
Color silver
Dimensions
Clear width [mm] 994
Depth of upright profile [mm] 60
Depth [mm] 300
Height adjustable at a distance of (mm) 53
Height [mm] 2278
Width of upright profile [mm] 31
Width [mm] 1055

Download

ProductSafety_10132626.pdf

Schäfer Shop Quality and Service

Special features of this product

only Fr. 347.00

per Pcs.

Incl. VAT free shipping from CHF 100.–

Enjoy free shipping from CHF 100.–. For smaller orders, shipping costs CHF9.60.
General terms and conditions

This feature is not compatible with your previous selection. You can reset your selection by clicking on it. Please select

Depth [mm]: 300 mm

300 mm 400 mm 500 mm 600 mm 800 mm

show all variants

Add to basket

Delivery time: within 4 weeks

Secure and fast payment

Variants

Overview of variants - Basic shelf unit, 4 shelves, painted, W 1055 x H 2278 mm

Overview of the possible item variants. For more information, click on the respective variant.

Depth [mm]

Item			Price
Base shelf, 4 shelves, H 2278 x W 1055 x D 300 mm, lacquered Item number: 31145			Fr. 347.00 Amount + - Added times
Base shelf, 4 shelves, H 2278 x W 1055 x D 400 mm, lacquered Item number: 31146			Fr. 395.65 Amount + - Added times
Base shelf, 4 shelves, H 2278 x W 1055 x D 500 mm, lacquered Item number: 31147			Fr. 437.80 Amount + - Added times
Base shelf, 4 shelves, H 2278 x W 1055 x D 600 mm, lacquered Item number: 31148			Fr. 465.90 Amount + - Added times
Base shelf, 4 shelves, H 2278 x W 1055 x D 800 mm, lacquered Item number: 31149			Fr. 565.35 Amount + - Added times
